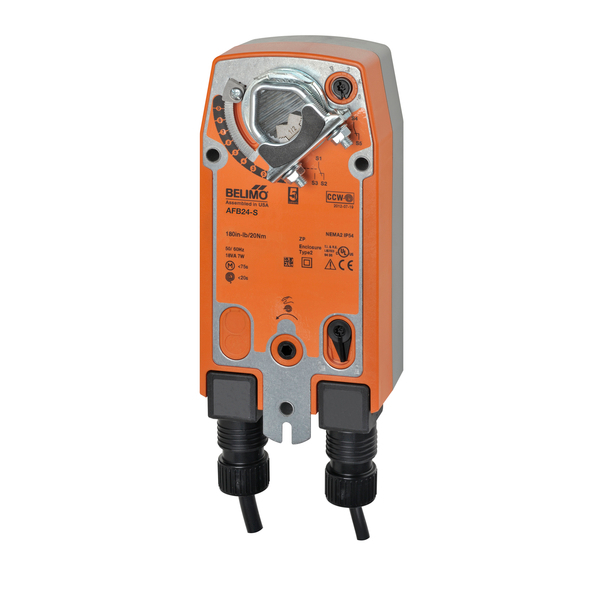

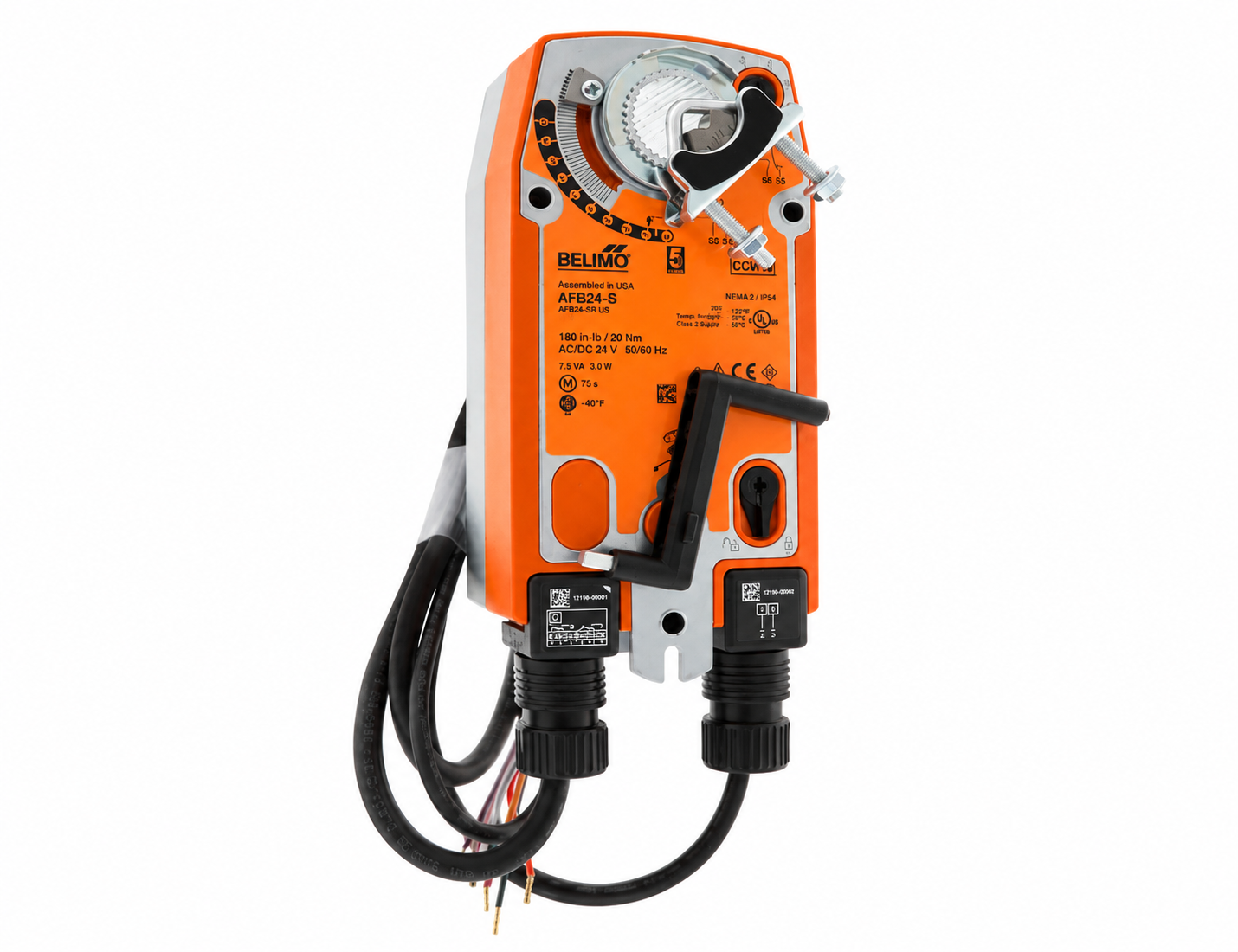

AFB24-S Belimo Actuator
$405.20
AFB24-S Belimo Actuator; Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPDT
The Belimo AFB24-S Spring return actuator, 180in-lb, On/Off, 24V, Switch (AFX24-S)
Application
For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. Maximum of two AF’s can be piggybacked for torque loads of up to 266 in-lbs. Minimum 3/4” diameter shaft and parallel wiring.
Operation
The AF..24-S series actuators provide true spring return operation for reliable failsafe application and positive close off on air tight dampers. The spring return system provides constant torque to the damper with, and without, power applied to the actuator. The AF..24-S series provides 95° of rotation and is provided with a graduated position indicator showing 0° to 95°. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. The AF..24-S versions are provided with two built-in auxiliary switches. These SPDT switches are provided for safety interfacing or signaling, for example, for fan start-up. The switching function at the fail-safe position is fixed at 10°, the other switch function is adjustable between 10° to 90°. The AF..24-S actuator is shipped at 5° (5° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off.
Specifications
| Actuator Type | Spring return |
| Angle of Rotation | 95° |
| Auxiliary Switches | 2 x SPDT |
| Control Type | On/Off |
| Degree of Protection | IP54, NEMA 2, UL Enclosure Type 2 |
| Direction of Rotation (Fail-Safe) | Reversible with cw/ccw mounting |
| Electrical Connection | Cable |
| Manual Override | 5 mm hex crank (3/16″ Allen), supplied |
| Power Consumption (Holding) | 5 W |
| Power Consumption (Running) | 5 W |
| Running Time (Fail-safe) | <20 s |
| Running Time (Motor) | 75 s |
| Safety Function | YES |
| Shaft Diameter | 1/2…1.05″ round, centers on 1/2″ and 3/4″ with insert, 1.05″ without insert |
| Torque | 180 in-lb [20 Nm] |
| Voltage AC/DC | AC/DC 24 V |
| Weight | 6 lbs |
|---|---|
| Dimensions | 7 × 13 × 5 in |
| Actuator Type | Spring Return |
| Control Type | On/Off |
| Torque | 18 in-lb [2 Nm] |
| Voltage | AC/DC 24 V |
