RM7800E2010 Honeywell Burner Control Module

RM7800E2010 Honeywell Burner Control Module Datasheet

Overview of RM7800E2010 Honeywell Burner Control Module

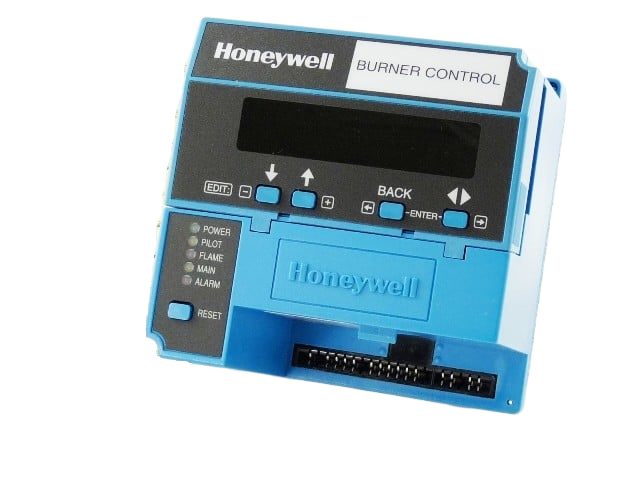

The Honeywell RM7800E2010 is part of the 7800 series burner control family, designed to manage safety, sequencing, diagnostics, and modular expansion for burner systems. It integrates components like flame proofing, lockout logic, and support for peripheral modules (displays, sensors, remote reset) to provide a flexible, robust control solution for oil, gas, or combination fuel systems.

Specifications

Features & Benefits

• Microprocessor control with adaptive safety logic

• Modular architecture allows flexible expansion and upgrades

• Integrated diagnostics and fault reporting for easier maintenance

• Compatible with peripheral modules such as displays, sensors, reset devices

• Suitable for multi-fuel burner systems

• Designed for reliable performance in industrial HVAC or process heating

Applications

• Commercial and industrial boiler control systems

• Burner installations requiring modular design and diagnostics

• Upgrades from older control systems to modern, expandable architecture

• Systems needing long-term maintainability and component replacement

Installation & Maintenance Tips

• Install module properly in the relay rack slot per alignment keying

• Attach matched peripheral modules (displays, amplifiers, reset) as needed

• Perform initial commissioning with display or remote module to verify status

• Use diagnostic features to review fault history and system behavior

• Periodically inspect connections, wiring, and module integrity
