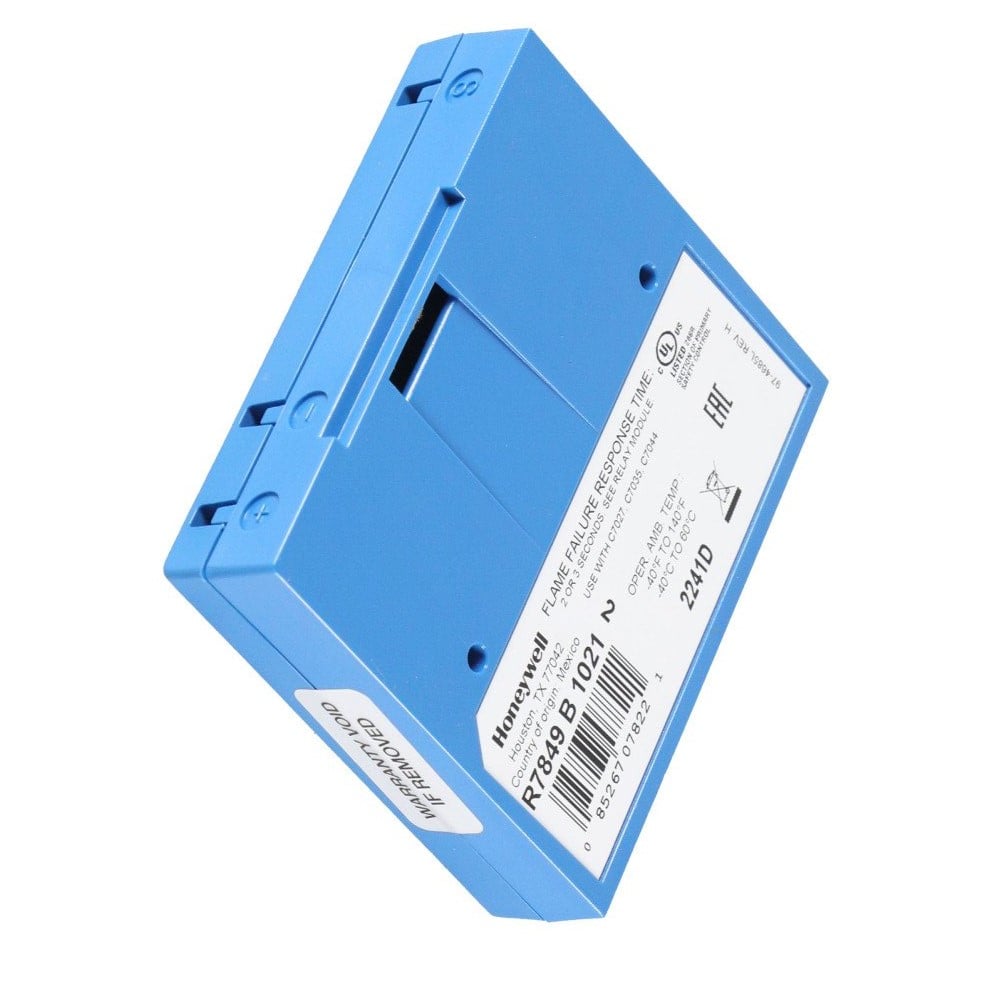

R7849B1021 Honeywell Flame Amplifier
$516.00
The Honeywell R7849B1021 Flame Signal Amplifier, 2 Second or 3 Second Flame Failure Response Time, Ampli-Check, Gas,Oil: Minipeeper Flame Sensor C7027A, C7035A, C7044, Use with 7800 Series Primary Safety Control, Color: Purple, Flame Signal Strength Ranges from 0.0-5 Vdc
4 in stock
Honeywell R7849B1021 Flame Amplifier – UV Ampli-Check Module (2.0 / 3.0-Second FFRT)
The Honeywell R7849B1021 2 OR 3 SEC Flame FAILURE RESPONSE TIME.
Product Overview
The Honeywell R7849B1021 Flame Amplifier is an ultraviolet flame amplifier with Ampli-Check self-checking diagnostics, engineered for use with Honeywell 7800 Series relay modules. It provides selectable flame failure response times (FFRT) of 2.0 or 3.0 seconds for dependable burner safety control. The amplifier delivers a 0–5 Vdc flame signal output, works with Mini-Peeper style UV sensors such as C7027A, C7035A, and C7044, and includes built-in flame signal test jacks for accurate monitoring. With a purple label to identify UV detection type and a keyed plug-in design, the R7849B1021 is a reliable replacement or upgrade option for commercial and industrial flame safeguard systems.
Key Features
-
Selectable FFRT: Choose between 2.0 or 3.0 seconds flame failure response time.
-
Ultraviolet flame detection: Compatible with C7027A, C7035A, and C7044 UV sensors.
-
Flame signal monitoring: Provides a 0–5 Vdc flame signal output with test jacks for verification.
-
Ampli-Check diagnostics: Monitors amplifier and UV detector function; locks out on failure.
-
Relay compatibility: Designed for plug-in use with Honeywell 7800 Series relay modules.
-
Color coding: Purple label identifies this module as a UV flame amplifier.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | Honeywell R7849B1021 Flame Amplifier |
| Flame Failure Response Time (FFRT) | 2.0 or 3.0 seconds |
| Flame Signal Voltage Output | 0.0 – 5.0 Vdc |
| Detection Type | Ultraviolet (UV) with Ampli-Check self-check |
| Compatible UV Sensors | C7027A, C7035A, C7044 |
| Relay Module Compatibility | Honeywell 7800 Series relay modules |
| Flame Signal Test Jacks | Yes – for flame signal measurement |
| Label / Color | Purple (UV flame amplifier) |
| Operating Temperature | −40°F to +140°F (−40°C to +60°C) |
| Storage Temperature | −40°F to +150°F (−40°C to +65°C) |
| Humidity Rating | Up to 85% RH, non-condensing |
Applications
-
Commercial and industrial burner safety systems requiring UV flame detection.
-
Installations using Mini-Peeper UV sensors like C7027A, C7035A, or C7044.
-
Replacement flame amplifier for Honeywell 7800 Series relay modules.
-
Burner control systems needing 2.0 or 3.0 second FFRT response.
-
Applications where verification of flame signal via 0–5 Vdc output test jacks is required.
Benefits
-
Flexible safety response with selectable FFRT settings.
-
Reliable flame detection using UV sensors for accurate safeguard control.
-
Enhanced diagnostics with Ampli-Check self-checking functionality.
-
Ease of installation with keyed plug-in PCB design.
-
Clear identification with purple UV detection label.
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 4 × 3 in |
