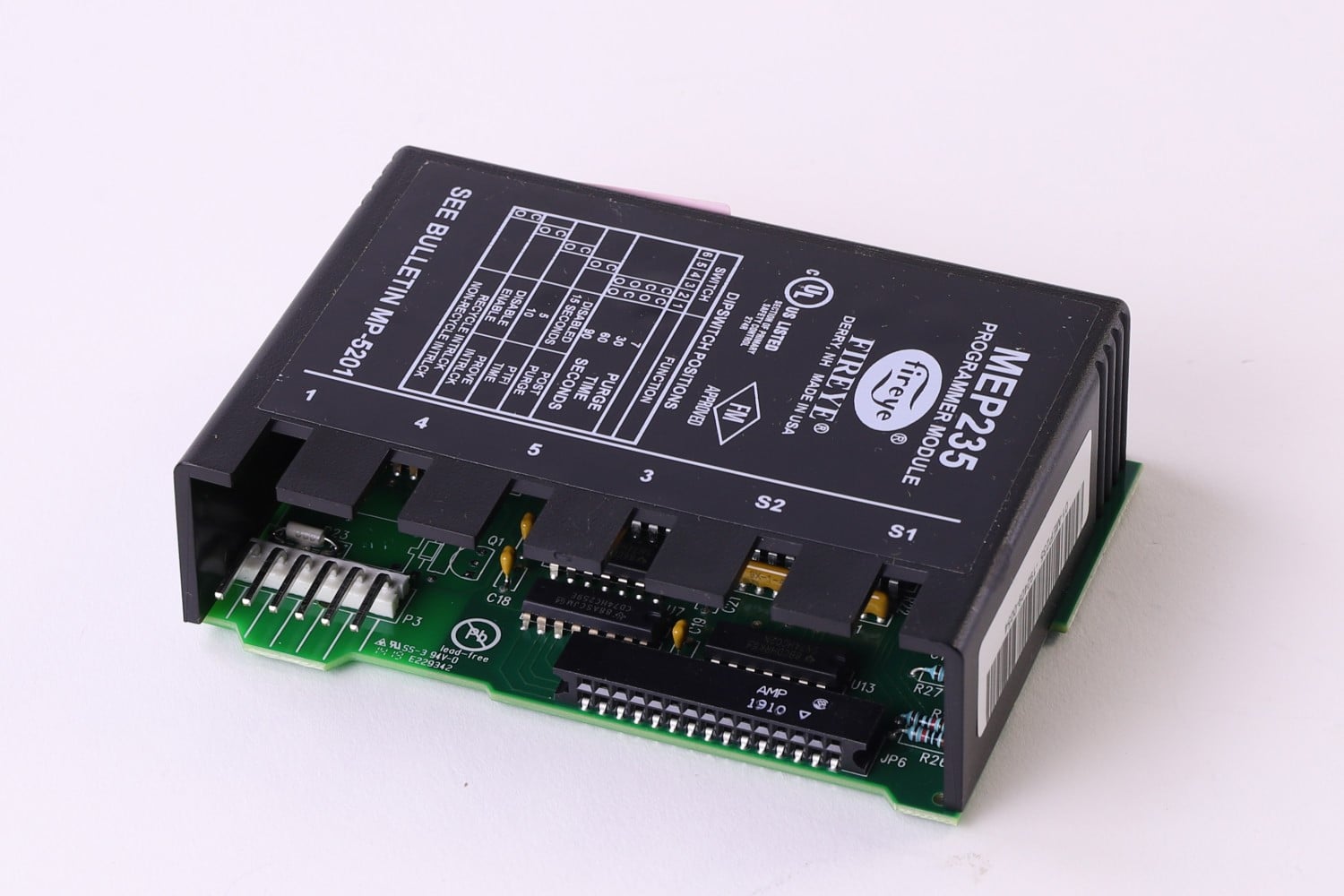

MEP235 Fireye Programmer

Overview

The Fireye MEP235 is a MicroM series flame safeguard programmer module designed for use with Fireye modular burner control systems. This plug-in module provides essential burner sequencing, including prepurge, pilot trial for ignition, and flame monitoring. It is distinguished by its advanced safety logic, which includes a dedicated lockout feature if airflow is lost after the start of a cycle or if flame failure occurs during firing, ensuring reliable and safe operation of commercial and industrial burners.

Features

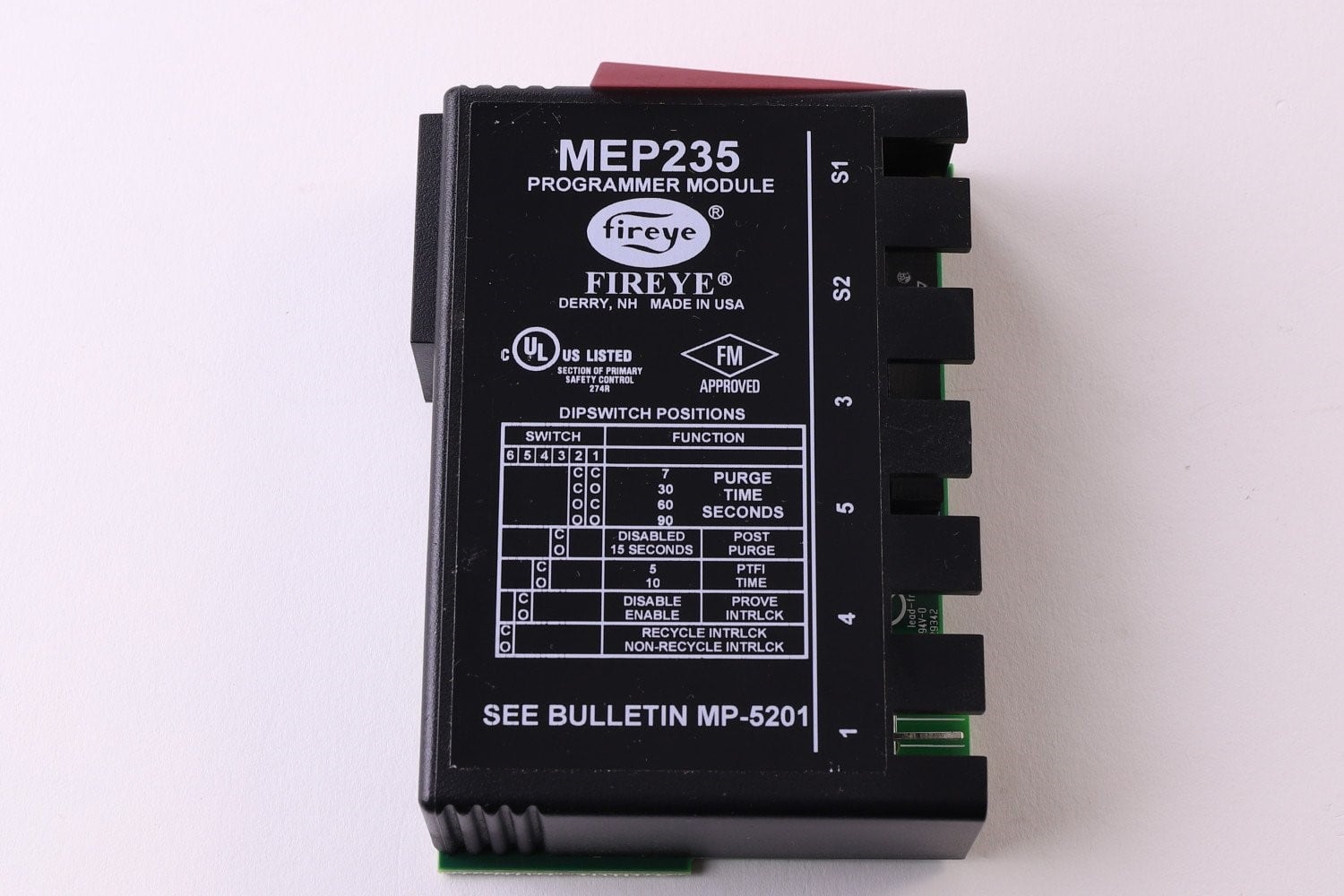

• Selectable purge timing (7, 30, 60, or 90 seconds) and PTFI timing (5 or 10 seconds) via DIP switches.
• Configurable recycle or non-recycle operation modes.
• Lockout on airflow open 10 seconds after the start of a cycle.
• Selectable lockout on airflow open after flame is proven.
• Dedicated lockout functionality after loss of flame.

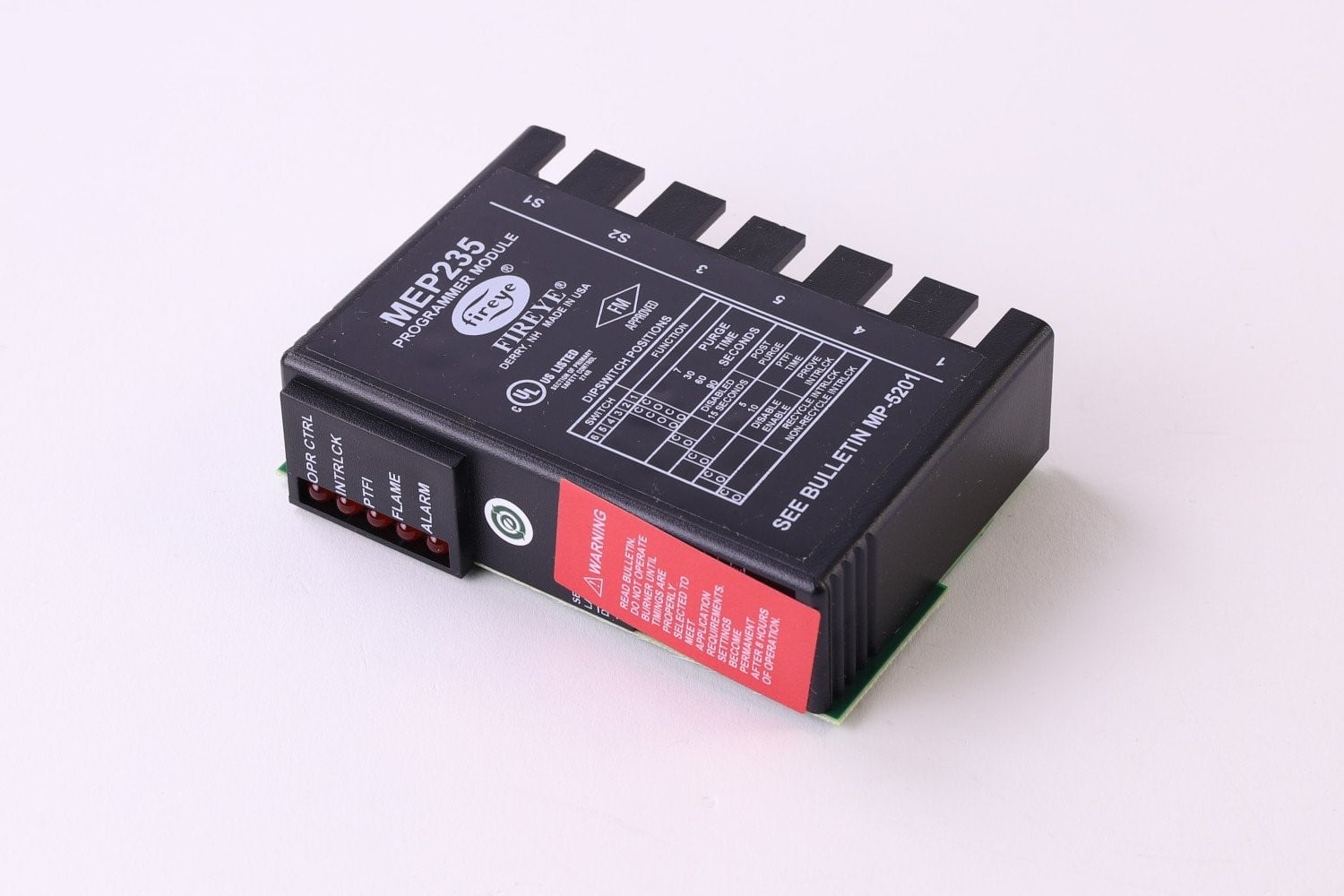

• LED indicator lights for status monitoring and diagnostic fault coding.
• Plug-in design allows for easy installation into MEC120 or MEC230 chassis.
• Micro-controller based technology eliminates dependence on discrete components for timing.

Specifications

• Model Number: MEP235
• Supply Voltage: 120 VAC (via MEC120 chassis) or 230 VAC (via MEC230 chassis)
• Operating Temperature: -40 degree F to 140 degree F (-40 degree C to 60 degree C)
• Power Consumption: 12 VA (Operating)
• Dimensions: 5.75 x 4.00 x 1.75 inches
• Shipping Weight: Approximately 0.4 lbs (module only)
• Flame Failure Response Time (FFRT): Determined by the amplifier selection (0.8s or 3s)
• Compliance: Designed to meet industrial flame safeguard standards

Applications

The MEP235 is used in industrial and commercial combustion environments for precise burner sequencing and safety monitoring. It is ideal for facilities requiring dependable flame safeguard programming in boiler rooms, process heating systems, and burner control panels. It is compatible with both gas and oil-fired burners and integrates with Fireye MicroM chassis, amplifiers, and scanners to complete a flame control solution.
