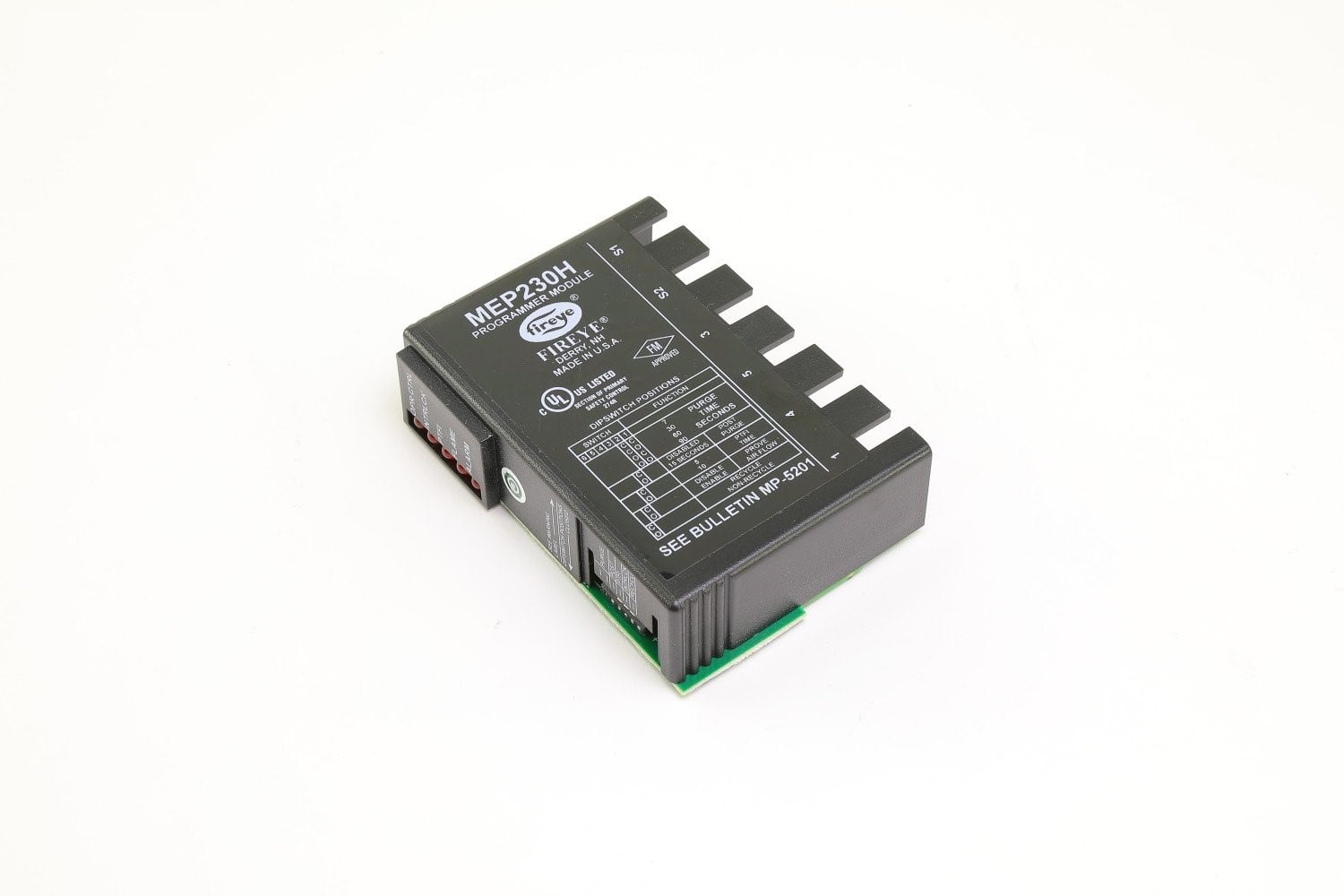

MEP230H Fireye Programmer

Overview

The Fireye MEP230H is a microprocessor-based programmer module designed for use with the Fireye Modular MicroM flame safeguard system. It provides burner sequencing, ignition control, and continuous flame monitoring for commercial and industrial burner applications. A key distinguishing feature of the MEP230H is its built-in 8-second pilot stabilization period, which ensures a stable pilot flame is established before the main fuel valve is energized, enhancing ignition reliability in marginal conditions.

Features

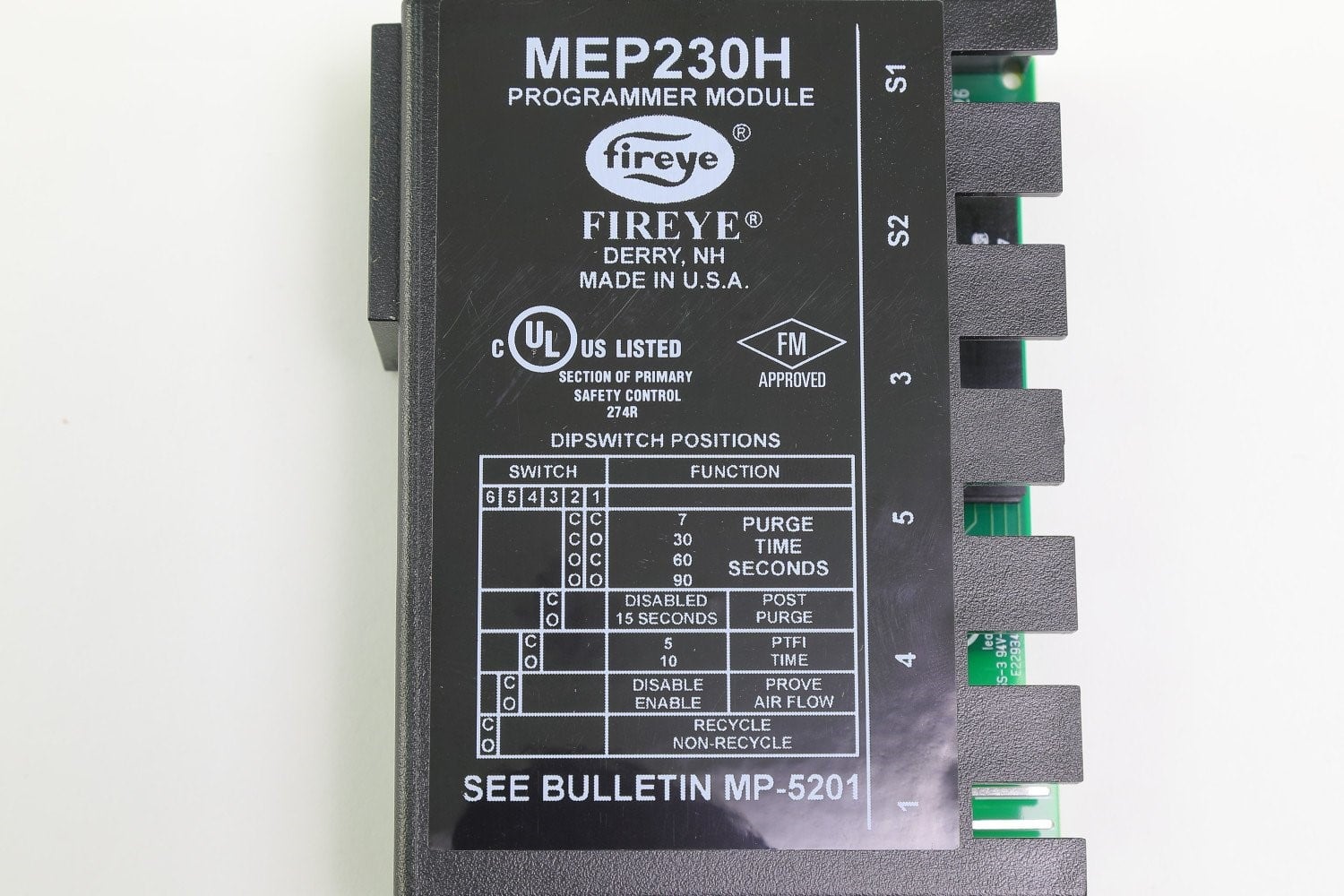

• Selectable purge timing (7, 30, 60, 90 seconds) via integrated DIP switches.
• Adjustable pilot trial-for-ignition (PTFI) timing (5 or 10 seconds).
• Selectable recycle or non-recycle operation modes.
• Built-in 8-second pilot stabilization period to improve flame reliability.
• Fixed or selectable post-purge functionality to clear the combustion chamber.
• Smart diagnostic LEDs providing real-time system status and fault codes for troubleshooting.
• Plug-in modular design for easy installation and maintenance within MicroM chassis.
• Proven air flow at start feature to ensure safety before ignition.

Specifications

• Model: MEP230H
• Supply Voltage: 120 VAC (powered via MicroM chassis)
• Operating Temperature: -40 degrees F to 140 degrees F (-40 degrees C to 60 degrees C)
• Power Consumption: 12 VA (Operating)
• Pilot Stabilization: Fixed 8 seconds
• Purge Timing: 7, 30, 60, 90 seconds (DIP switch selectable)
• PTFI Timing: 5 or 10 seconds (DIP switch selectable)
• Shipping Weight: Approximately 0.3 lbs to 3 lbs depending on packaging
• Dimensions: Approximately 4.05 x 5.85 x 1.6 inches

Applications

The Fireye MEP230H is ideal for burner management systems requiring enhanced ignition stability and precise sequencing. Typical applications include:

• Industrial and commercial boilers.
• Furnaces and process heaters.
• Two-stage light oil burners requiring specific delays between stages.
• Retrofit projects aiming to improve ignition performance in existing combustion systems.
• Systems with fluctuating or marginal flame conditions where stabilization is critical.
