MEP230 Fireye Programmer

Datasheet

The Fireye MEP230 Programmer, Selectable recycle/non-recycle function, TFI timing, purge timing, post purge, prove open at st

Overview

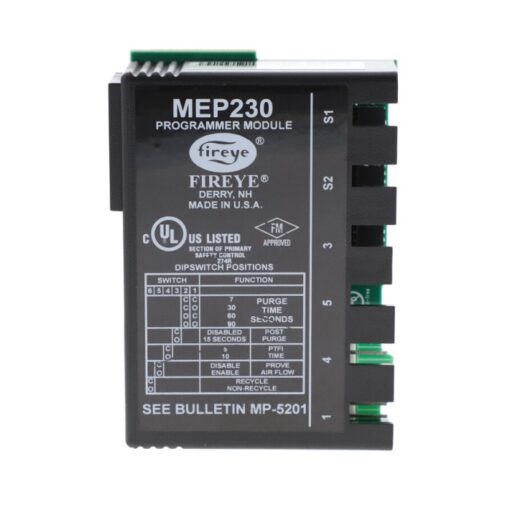

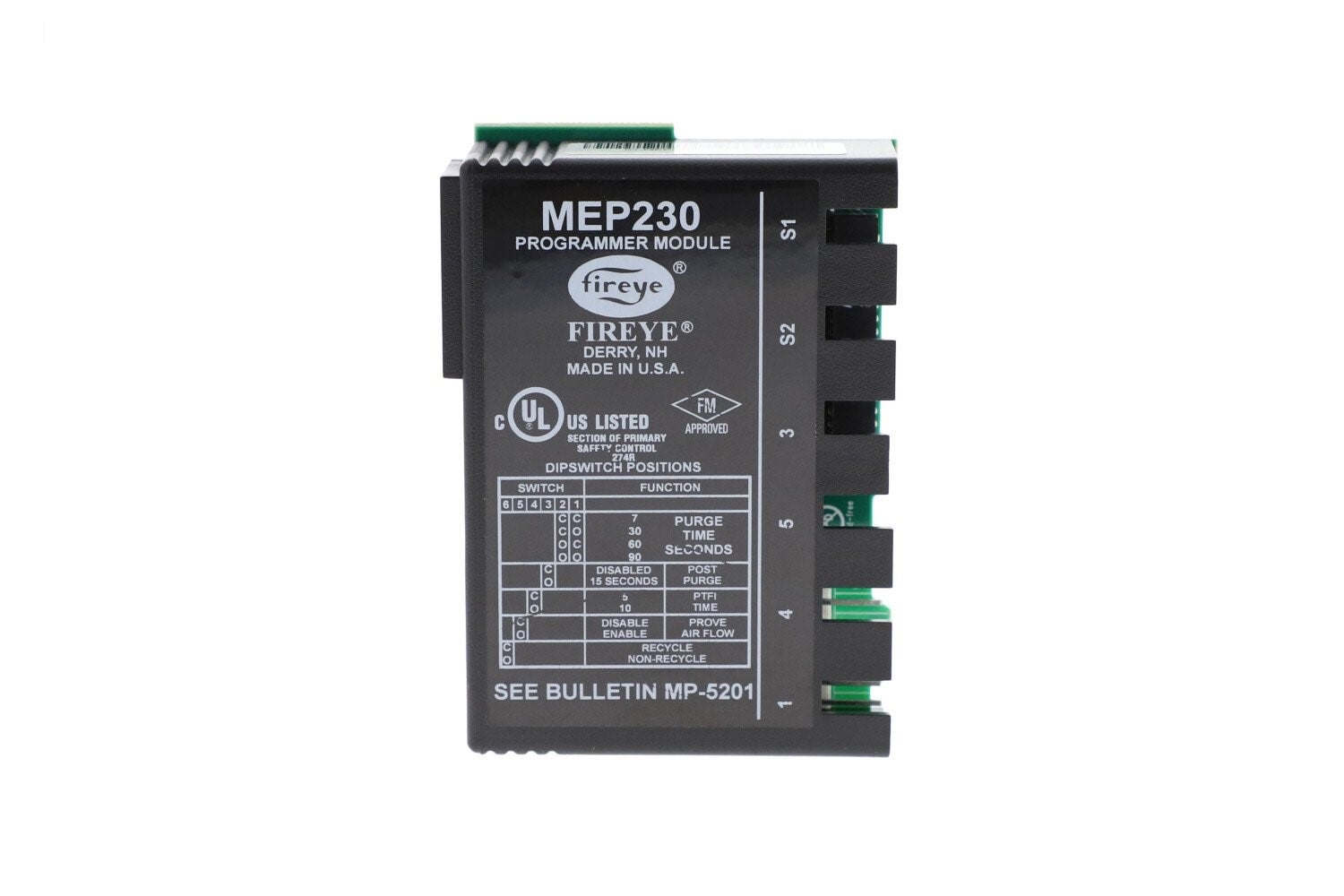

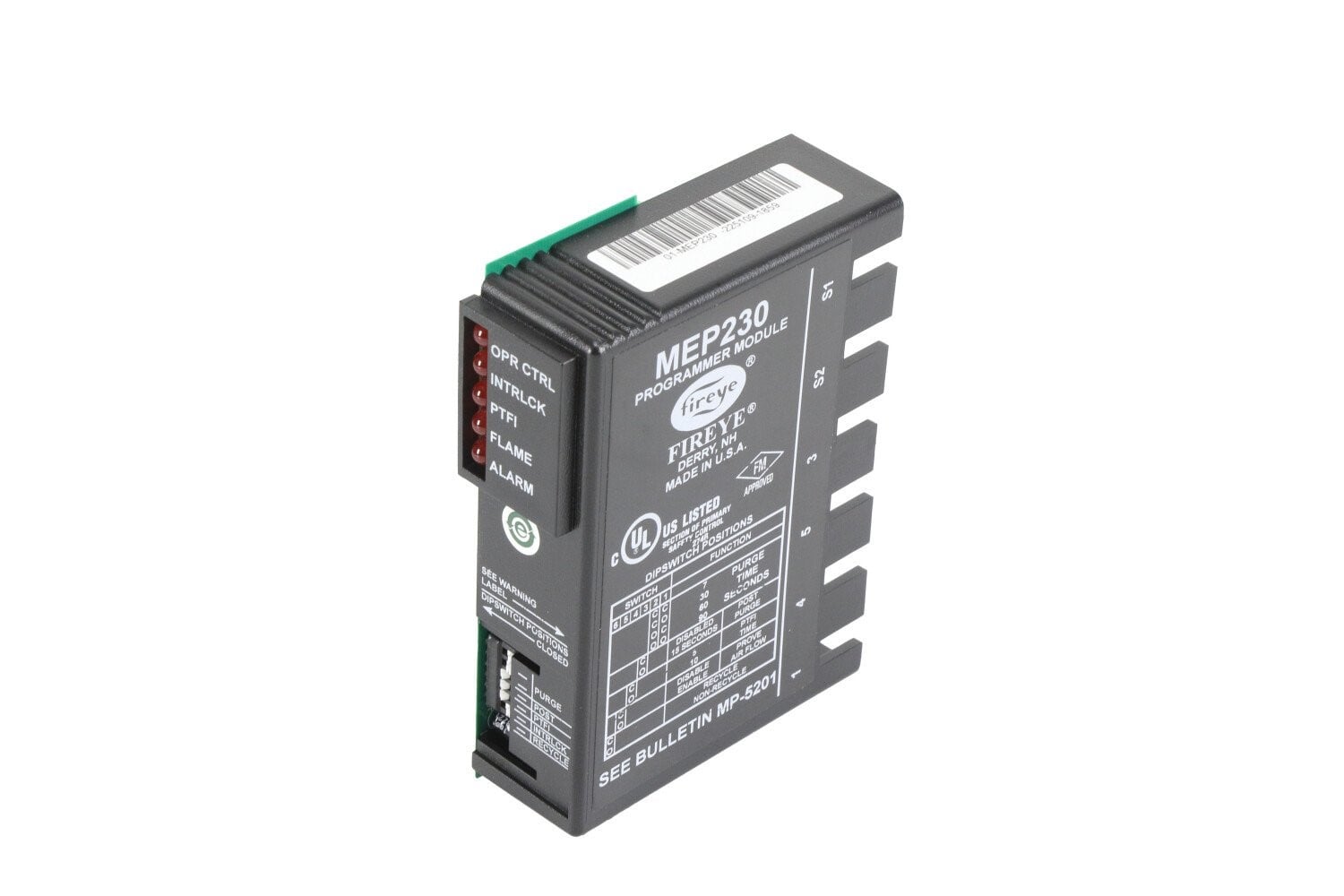

The Fireye MEP230 Programmer Module is a microprocessor-based component used in the Fireye MicroM Flame Safeguard System. It provides the complete burner sequencing logic for safe start-up, flame supervision, and shutdown of commercial and industrial burners.

This module features selectable purge and ignition timing, along with recycle or non-recycle operation options, making it a flexible solution for a variety of combustion control systems. It easily plugs into the M-Series II chassis, offering quick installation and replacement.

Features

• Selectable purge timing through internal DIP switch configuration

• Adjustable Pilot Trial-for-Ignition (PTFI) timing

• Configurable recycle or non-recycle operation

• LED indicators for status and fault diagnostics

• Plug-in modular design for easy maintenance

• Compatible with Fireye MicroM chassis and flame amplifiers

• Provides safe, automatic sequencing for burner startup and shutdown

• Factory-calibrated for consistent, repeatable performance

• Meets UL, FM, and CSA industrial safety requirements

Specifications

Applications

The Fireye MEP230 Programmer Module is used to control the operating sequence of industrial and commercial burners. It supervises the purge, ignition, and flame monitoring stages, ensuring safety during all phases of burner operation.

Common applications include:

• Industrial boilers and furnaces

• Commercial heating systems

• Process heating and drying equipment

• Burner retrofits and new installations requiring programmable sequencing

The MEP230 delivers reliable burner management and supports a wide range of flame safeguard configurations.

Benefits

• Modular, plug-in design for fast replacement and reduced downtime

• Adjustable settings provide flexibility for various system designs

• LED indicators simplify troubleshooting and commissioning

• Ensures precise, safe burner sequencing with minimal setup

• Proven reliability in demanding industrial environments
