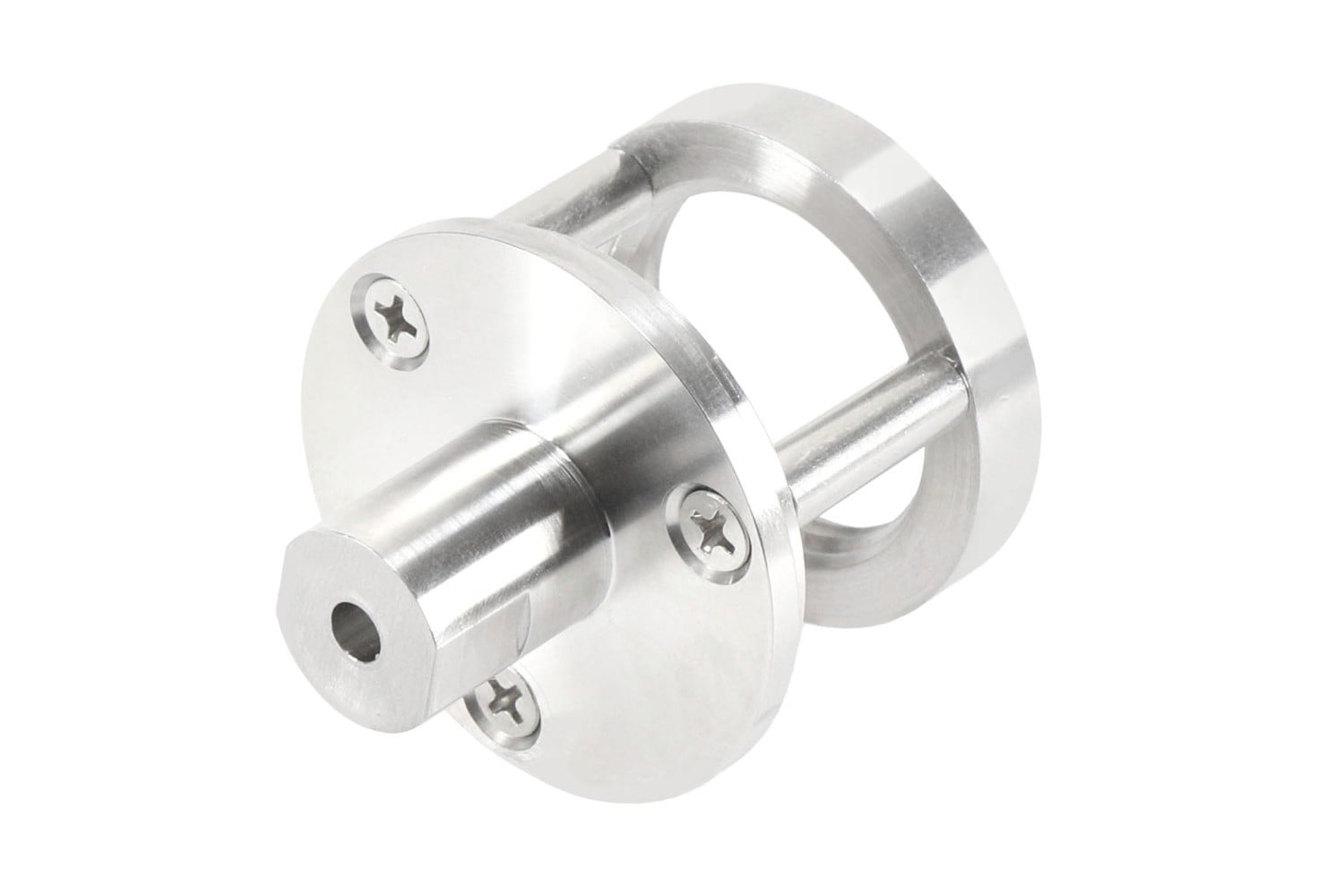

DE601-16 Fireye Fiber Optic

Overview

The Fireye DE601-16 is a precision-engineered stainless steel fiber optic termination assembly designed for industrial flame monitoring and combustion control. It serves as a robust connection point for fiber optic cables, enabling the transmission of critical flame signal data from a burner to a flame safeguard control system. Constructed to withstand harsh industrial environments, this assembly is essential for applications where the line of sight to the flame is obscured or moving.

Features

• Durable stainless steel construction for superior corrosion resistance and longevity in high-heat environments.
• High-quality optics designed to ensure accurate and stable transmission of optical flame signals.
• Secure termination point providing a reliable interface between fiber optic bundles and scanner electronics.
• Enhanced safety by reducing the risk of false alarms through precise flame detection.
• Compact design for integration into existing boiler and furnace monitoring systems.

Specifications

• Manufacturer: Fireye
• Part Number: DE601-16
• Material: 303 Stainless Steel
• Dimensions: Approximately 4.9 x 6.7 x 4.8 inches
• Weight: 0.5 lbs (226.8 g)
• Temperature Rating: Optimized for high-temperature industrial burner environments
• Compatibility: Used with Fireye C9504M-001 UV/Visible fiber optic scanner systems and InSight II scanners

Applications

The Fireye DE601-16 is primarily used in commercial and industrial burner applications, including water heaters, furnaces, and boilers. It is specifically designed for installations where air compartments, movable vanes, or burner nozzles would prevent a conventional surface-mounted scanner from maintaining a clear line of sight to the target flame. It is also utilized in complex boiler applications where individual burner flames must be distinguished within a larger fireball.
