129-145-2 Fireye Display

Overview

The Fireye 129-145-2 is a complete remote mounting kit designed specifically for the ED510 display module. It provides an easy and efficient method to panel mount the display, allowing for flexible positioning away from the primary burner control unit. This improves visibility and accessibility of critical burner control data in industrial and commercial combustion environments. When installed correctly, the assembly meets NEMA 4 requirements, providing a weatherproof seal for the display module.

Features

• Facilitates remote mounting of the ED510 display for improved accessibility and monitoring.

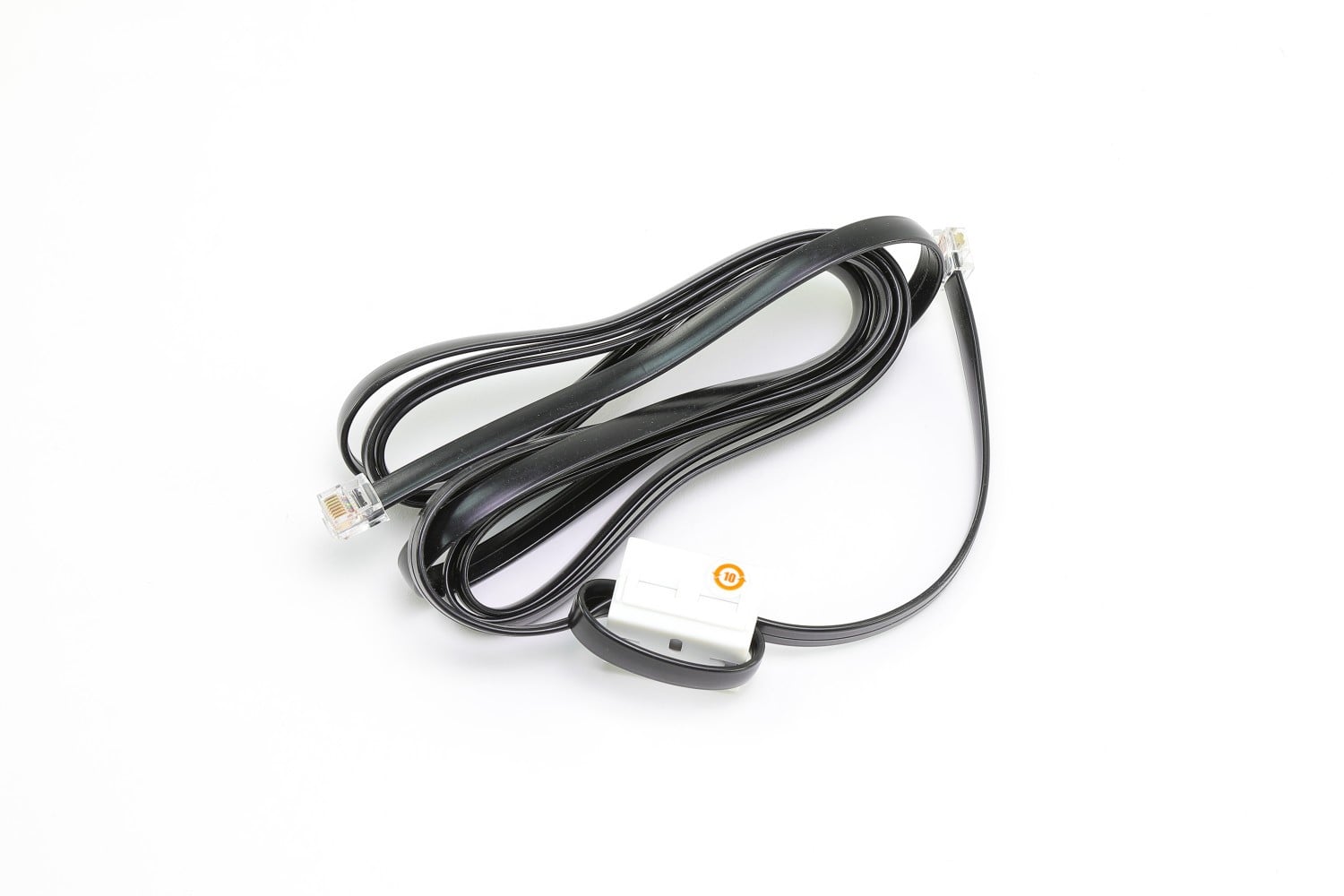

• Includes a durable 8-foot (ED580-8) connection cable with RJ45 connectors for flexible installation.
• Snaps into position for a secure, stable mount that reduces vibration and alignment issues.
• Provides a NEMA 4 rated seal when mounted correctly with the included gasket.
• Features a circular opening on the mounting plate for easy access to the display’s contrast adjustment potentiometer.
• Includes a ferrite core on the cable to improve electrical noise immunity for the flame safeguard system.

Specifications

• Model Number: 129-145-2
• Product Type: Remote Display Mounting Kit

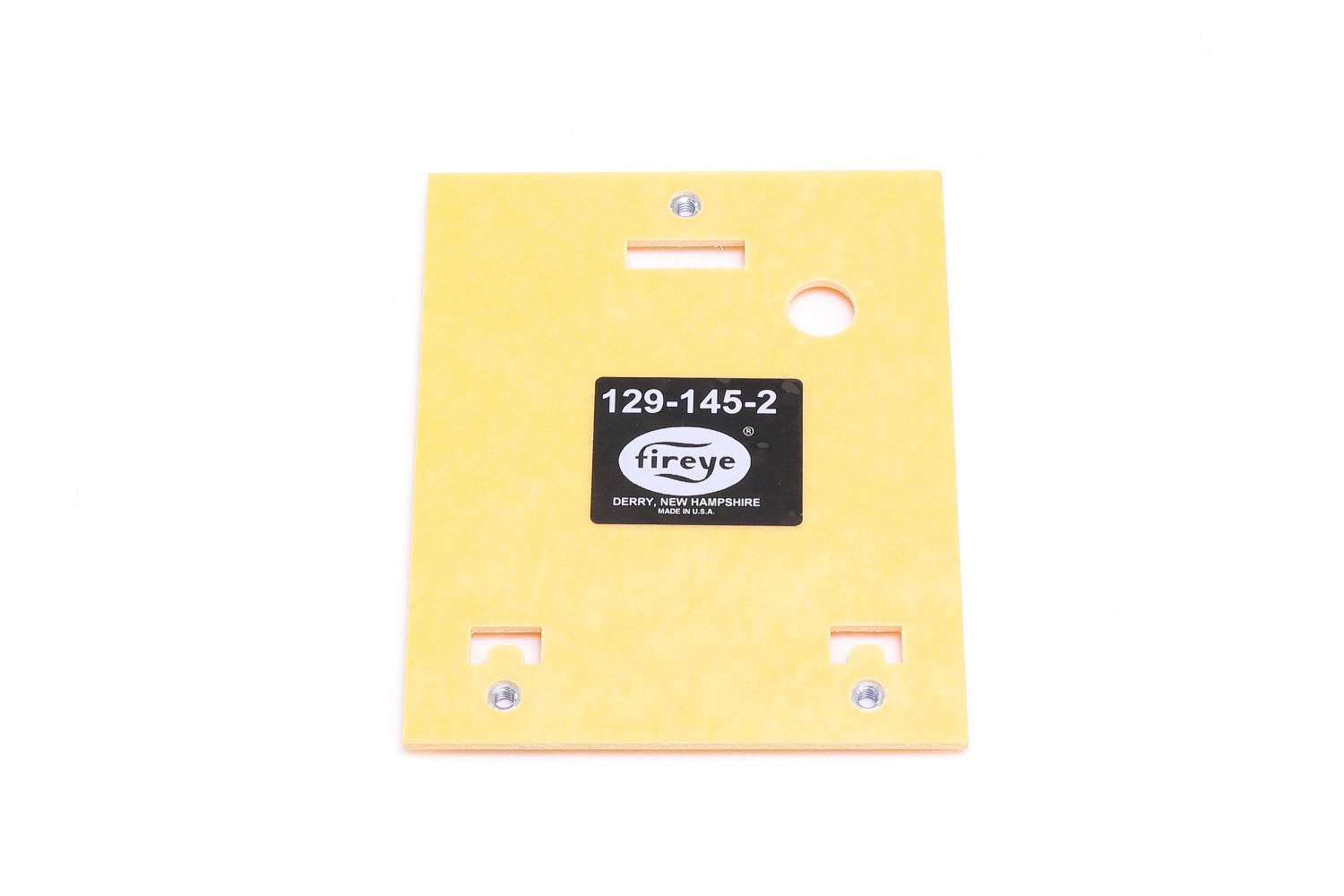

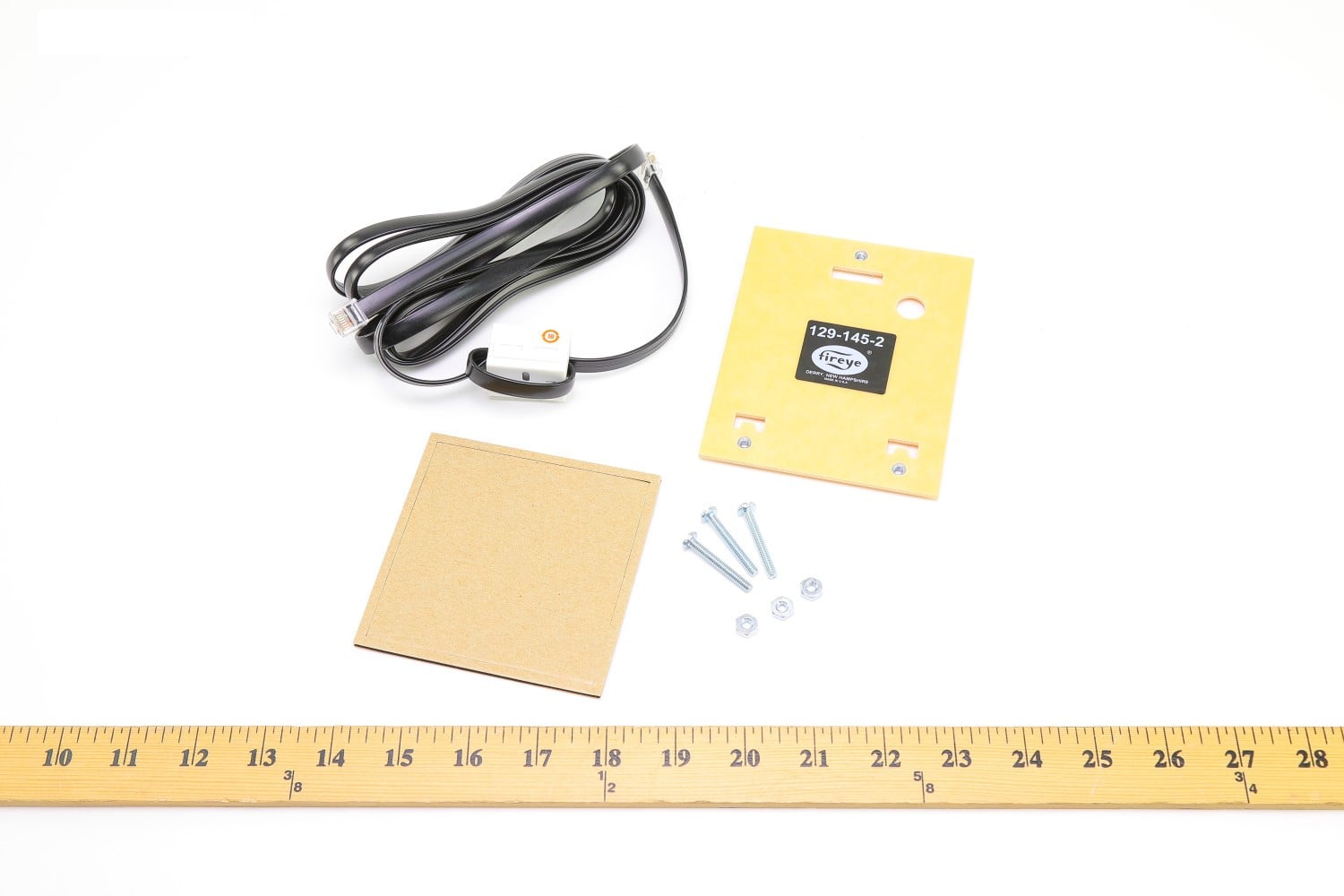

• Included Components: Mounting plate, gasket, two 8-32 x 1 1/4 inch mounting screws, and 8-foot connection cable (ED580-8).
• Compatibility: Fireye ED510 Display Module; compatible with EP and EPD style programmer modules and MicroM series controls.
• Panel Cutout Dimensions: 3.62 inches square (92.0 mm).
• Maximum Panel Thickness: 14 gauge (5/64 inch or 2.0 mm).
• Protection Rating: Meets NEMA 4 requirements when gasketed and installed correctly.

Applications

The 129-145-2 is used in industrial and commercial burner management systems where the ED510 display must be positioned on a control panel face for operator convenience. It is ideal for use in boiler rooms, furnaces, and other combustion equipment installations where the primary control is located inside a cabinet or in an inaccessible location. It is also commonly used in retrofits where extended cable length is required to move a display to a more visible monitoring point.
