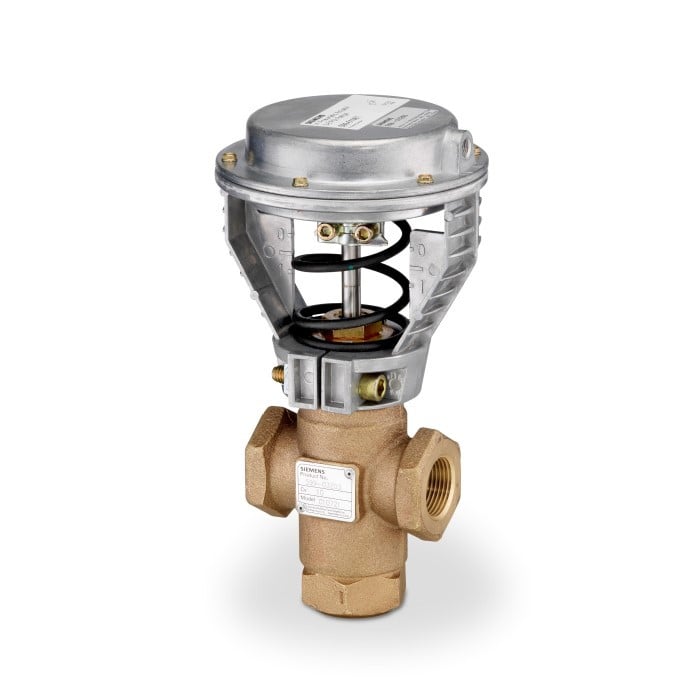

270-03203 Siemens Valve Assembly
$355.82
Valve assy 3W Mix 1″ 10Cv Eq Pct/Lin Brass Trim FxF, 4″ Pneu Act 10-15psi
The Siemens 270-03203 3WMX BZ,=%,OR,FXF,1.00/10.00
Flowrite 599 Series Valve Assembly features a 4-inch pneumatic actuator with 10-15 psi. The 3-way, mixing, 1-inch, 10 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, brass trim, and female x female end connections.
Technical Specifications
| Valve Body Style | Stroke-Globe |
| Port Configuration | 3-Way Mixing |
| End Connection | FxF |
| Connecting thread | Direct-coupled universal bonnet |
| Material, valve body | UNS CA 844 bronze |
| Material, inside set | Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal |
| Medium | Water , Water with anti-freeze |
| Leakage rate | Class IV (0.01% of Cv) |
| Rangeability | >100:1 |
| High temperature | NO |
| Medium temperature | 20…250 ºF |
| Stroke | 3/4 in., 20 mm |
| Valve Actuator Type | Pneumatic |
Normally ships in 7-10 days or sooner… Call 800-323-2739 for details!
| Weight | 7 lbs |
|---|---|
| Dimensions | 11 × 6 × 6 in |
