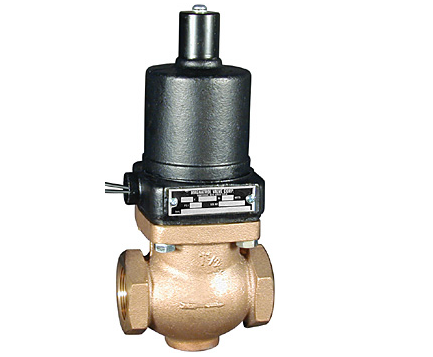

14L32-ZCY Magnatrol Solenoid Valve (G14L32SC-ACTZCY)

14L32-ZCY Magnatrol Solenoid Valve (G14L32SC-ACTZCY) 1/2″ Bronze NC; 120/60 (Note: Valve made and Cleaned for Liquid Oxygen)

Overview

The Magnatrol 14L32-ZCY is a Normally Closed (N/C), full port, bronze solenoid valve designed for two-way, straight-thru fluid control. It is an internal pilot-operated or direct-acting valve built with a packless design and operates from zero to its maximum differential pressure. The -ZCY designation indicates that this valve is specially cleaned and suitable for Cryogenic service, including Liquid Oxygen.

Features

• Operation: Normally Closed (N/C), meaning it opens when the coil is energized (Energize to Open).
• Construction: Cast Bronze body with Globe Pattern and NPT ends, featuring a dependable packless design.
• Full Port: Provides a straight-thru flow path.
• Pressure Operation: Requires no differential pressure to open.
• Coil: Encapsulated Class H coil designed for continuous duty with AC and DC voltages.
• Special Service: Cryogenic cleaning, including degreasing and cleaning, with Oxygen service valves also undergoing “black light” testing.

Specifications

• Part Number: 14L32-ZCY (G14L32SC-ACTZCY)
• Pipe Size: 1/2″ NPT
• Max Differential Pressure: 200 PSI
• Control Voltage: 120 VAC, 60 HZ
• Power Rating: 25 Watts AC
• Max Fluid Temperature: -350°F to 400°F
• Body Material: Cast Bronze
• Weight: Approximately 6.46 lbs

Applications

The solenoid valve is used to control the flow of Hot Liquids, Hot Gases, and Cryogenics. It is specifically made and cleaned for use with Liquid Oxygen (LO2). Cryogenic applications include fluids like Liquid Oxygen (-297°F), Liquid Argon (-303°F), and Liquid Nitrogen (-320°F). It is suitable for any fluids that are non-reactive with the bronze and stainless steel construction materials and are free of sediment.
