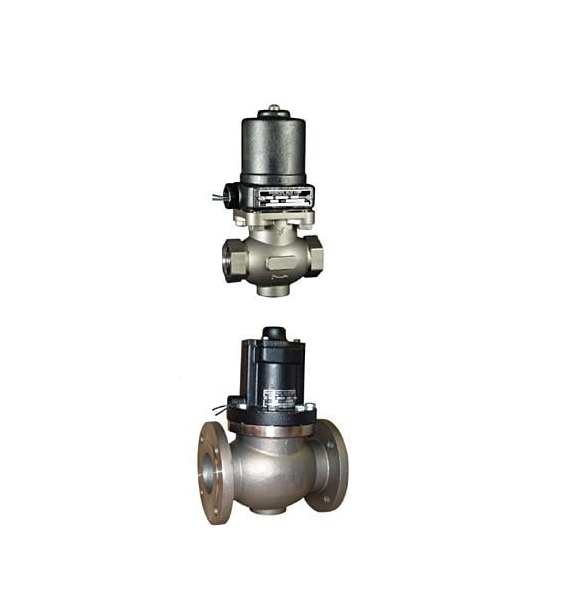

16K44 Magnatrol Solenoid Valve (G16K44SC-ACTH)

16K44 Magnatrol Solenoid Valve (G16K44SC-ACTH) 1″npt N/C 120V SS 400F LIQ

Overview

The Magnatrol 16K44 is a full port, two-way stainless steel solenoid valve of Type “”K”” construction, designed for heavy-duty, general-purpose, and cryogenic fluid control. It features a Normally Closed (N/C) operation, meaning the valve opens when the coil is energized (Energize to Open) and closes when power is de-energized. This internal pilot-operated valve is engineered to operate from zero to its maximum differential pressure, requiring no differential pressure to open, and is constructed to be packless for dependable service.

Features

• Operation: Normally Closed (N/C), opening upon coil energization
• Construction: 304 Stainless Steel Valve Body (Globe Pattern, NPT ends) and 303 Stainless Steel Piston and Pilot Valve
• Full Port: Provides a straight-thru design for flow
• Coil: Encapsulated Class H coil is standard, designed for continuous duty with both AC and DC voltages
• Pressure Operation: No differential pressure is required for the valve to open
• Temperature: Suitable for fluid temperatures from -350°F up to 400°F
• Design: Packless construction

Specifications

• Part Number: 16K44
• Pipe Size: 1″” NPT
• Maximum Differential Pressure (Max Diff PSI): 110 PSI
• Max Static Pressure: 300 PSI
• Wattage: 25 Watts AC / 18 Watts DC
• Maximum Fluid Temperature: 400°F
• Approximate Shipping Weight: 10 lbs

Applications

• To control the flow of general service fluids, including Corrosive Fluids, Deionized Water, Condensate, Ammonias, Vegetable Oils, Fuel Oils, and Flammable Liquids
• Suitable for Cryogenic Service, including liquid oxygen (-297°F), liquid argon (-303°F), and liquid nitrogen (-320°F)
• Suitable for any fluids not reactive with construction materials and free of sediment
• Installation: Must be mounted in a horizontal pipe with the solenoid enclosure vertical and on top
