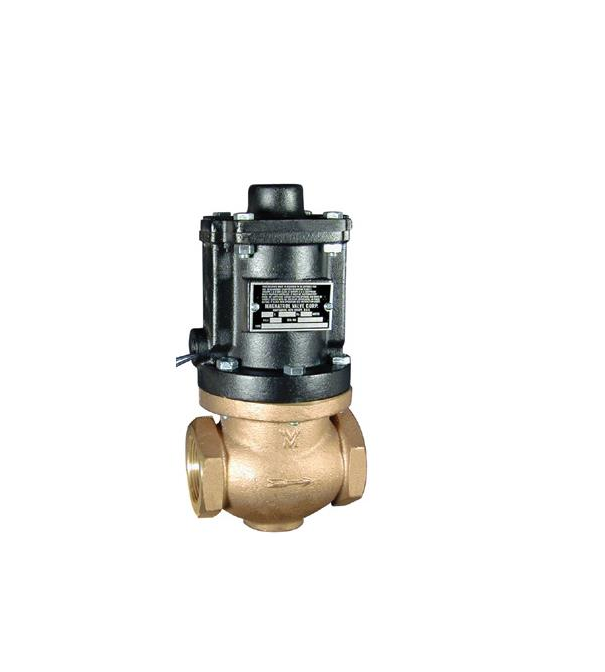

14L42 Magnatrol Solenoid Valve (G14L42SC-ACTH)

14L42 Magnatrol Solenoid Valve (G14L42SC-ACTH) 1/2″npt N/C 110# 120V 400F LIQ

Overview

The Magnatrol Type L 14L42 Solenoid Valve (G14L42SC-ACTH) is a full port, two-way, bronze solenoid valve designed for liquid and gas flow control. It operates as Normally Closed (N/C), opening when the coil is energized and closing when power is de-energized. This valve is an internal pilot-operated or direct-acting design that requires no differential pressure to open and is constructed to be packless for dependable service in high-temperature applications up to 400° F.

Features

• Operation: Normally Closed (N/C), opening upon coil energization.
• Construction: Cast Bronze body (Globe Pattern, NPT ends) with Bronze piston and packless design.
• Design: Full Port, 2-Way Straight Thru.
• Coil: Encapsulated Class H coil for continuous duty with AC and DC voltages.
• Pressure: Operates from zero to maximum differential pressure, requiring no differential pressure to open.
• Installation: Must be mounted in a horizontal pipe with the solenoid enclosure vertical and on top.

Specifications

• Part Number: 14L42 (G14L42SC-ACTH)
• Pipe Size: 1/2″ NPT
• Maximum Differential Pressure (Max Diff PSI): 110 PSI
• Control Voltage: 120 VAC, 60 HZ
• Power Rating: 25 Watts AC
• Maximum Fluid Temperature: 400° F
• Body Material: Bronze
• Weight: Approximately 7.00 – 8 lbs

Applications

This valve is used to control the flow of various fluids, including Hot Liquids, Hot Gases, and Cryogenics (such as Liquid Oxygen, Liquid Argon, and Liquid Nitrogen). It is suitable for any fluids that are not reactive with the bronze construction materials and are free of sediment, making it appropriate for use in process control systems. Cryogenic applications require the valve to be specially cleaned and degreased.
