132S45 Magnatrol Solenoid Valve

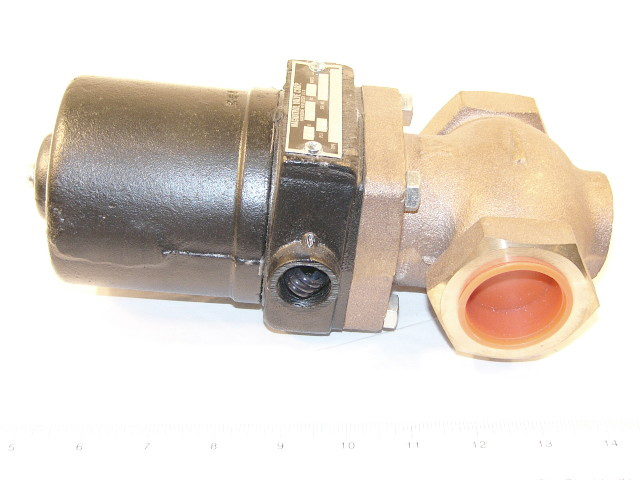

The Magnatrol 132S45 SOLENOID Valve 1 1/4″ 0-140PSI N/C 120VAC

Overview

The Magnatrol 132S45 is a bronze, two-way, full port, Normally Closed (N/C) solenoid valve, part of the Type S series, designed specifically for controlling the flow of steam. It is an internal pilot-operated valve that opens when the coil is energized (Energize to Open) and closes when power is de-energized. This design allows it to operate from zero up to its maximum differential pressure, requiring no minimum differential pressure to open.

Features

• Operation: Normally Closed (N/C), opening upon coil energization.
• Construction: Cast Bronze body with Globe Pattern and NPT ends, featuring a packless design.
• Full Port: Provides a straight-thru design for flow.
• Pressure Operation: Operates from zero differential pressure up to the maximum rating.
• Coil: Encapsulated Class H coil designed for continuous duty.
• Installation: Must be mounted in a horizontal pipe with the solenoid enclosure positioned vertically on top.

Specifications

• Part Number: 132S45
• Pipe Size: 1-1/4″” NPT
• Type: Type S, Full Port, Normally Closed
• Maximum Differential Pressure (Max Diff PSI): 140 PSI
• Maximum Fluid Temperature: 400° F
• Maximum Static Pressure: 200 PSI
• Control Voltage (Standard AC): 120 VAC, 60 HZ (24V also available)
• Power Rating (120V AC): 65 Watts AC (Hold Amps 1.2A; Inrush Amps 4.8A)
• DC Power Rating: 33 Watts DC
• Body Material: Cast Bronze
• Coil Type: Encapsulated Class H

Applications

The 132S45 solenoid valve is primarily used for controlling the flow of Steam. For proper operation, the steam must be free of sediment. It is suitable for various industrial and HVAC process control systems where reliable steam flow control is required.
