129-145-3 Fireye Display

Overview

The Fireye 129-145-3 is a remote mounting kit designed to facilitate the panel installation of the Fireye ED510 display module. This kit allows the display to be positioned away from the primary burner control unit, enhancing visibility and operator accessibility in commercial and industrial combustion systems. When installed correctly, the assembly meets NEMA 4 requirements, providing a weatherproof seal suitable for demanding environments.

Features

• Enables remote mounting of the ED510 display module for improved ergonomics and safety.

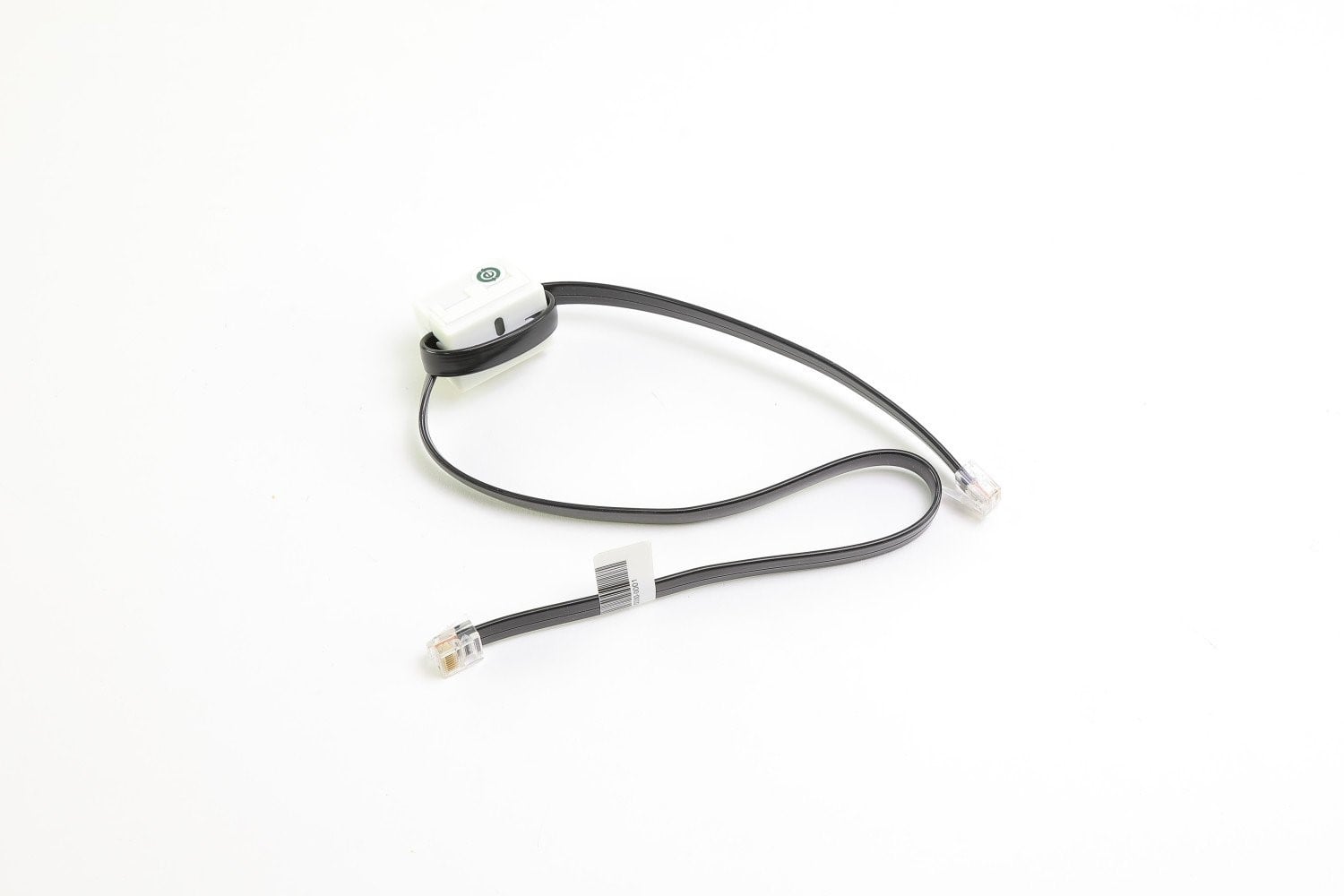

• Includes a 2-foot (ED580-2) communication cable with RJ45 connectors for reliable data transmission.
• Provides all necessary hardware for secure attachment, including a mounting plate, gasket, and screws.
• Designed to maintain a NEMA 4 rating when properly panel-mounted.
• Simplifies system layouts by allowing the operator interface to be placed in an optimal viewing location.

Specifications

• Part Number: 129-145-3
• Compatible Display: Fireye ED510
• Cable Length: 2 feet (approximately 0.6 meters)
• Cable Type: ED580-2 with RJ45 connectors
• Mounting Hardware: Mounting plate, gasket, and two 8-32 x 1-1/4 inch screws
• Panel Cutout Requirement: 3.63 inches square (92.0 mm)
• Maximum Panel Thickness: 14 gauge (5/64 inch or 2.0 mm)
• Enclosure Rating: Meets NEMA 4 (weatherproof) when mounted correctly
• Weight: Approximately 0.4 lbs

Applications

• Industrial and commercial burner management systems where the ED510 display must be separated from the control chassis.
• Control panels, boiler rooms, and burner rooms requiring remote display access for status monitoring and diagnostics.
• Systems utilizing Fireye Flame-Monitor (EP and EPD style programmers) and MicroM series controls.
• Retrofit applications where existing control equipment is positioned in locations that are difficult for operators to reach or view.
