ED580-2 Fireye DISPLAY

Overview

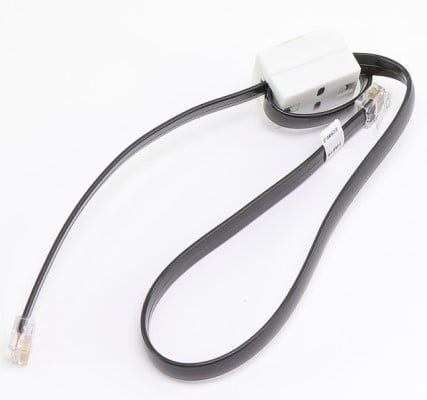

The Fireye ED580-2 is a 2-foot remote display cable designed to interface the ED510 display module with Fireye Flame-Monitor and MicroM burner management control systems. It provides a reliable communication link, allowing the display module to be mounted remotely on a panel door or surface, away from the main control chassis. This is particularly useful in industrial and commercial combustion environments where the controller is located in a restricted or inconvenient area. The cable features RJ45 connectors on both ends for easy plug-and-play installation and includes a ferrite core to enhance electrical noise immunity, ensuring clear and consistent data transmission for system monitoring and diagnostics.

Features

• RJ45 Connectors: Equipped with standard RJ45 style connectors at both ends for quick and secure attachment to the programmer module and display.
• Enhanced Noise Immunity: Includes a factory-installed ferrite core to minimize electromagnetic interference (EMI) and improve signal stability.
• Remote Mounting Capability: Enables the ED510 display to be mounted on a control panel for easier access to alphanumeric status updates and reset functions.
• Durability: Constructed for industrial environments to maintain a high-quality connection between burner management components.
• System Compatibility: Specifically engineered for use with Fireye Flame-Monitor (EP and EPD style programmers) and MicroM series controllers.

Specifications

• Model Number: ED580-2
• Cable Length: 2 feet (approximately 0.6 meters)
• Connector Type: RJ45 (8-pin)
• Compatibility: Fireye ED510 display module, Flame-Monitor EP (Engineering code 28+) and EPD (Engineering code 02+) programmers, and MicroM series controls.
• Shielding: Typically overall shielded to prevent signal degradation.
• Maximum Total Distance: While the ED580 is used for short-range remote mounting, the total distance for an ED510 can extend up to 700 feet using additional interfaces like the ED610.

Applications

The ED580-2 cable is primarily used in industrial and commercial heating systems to facilitate the remote mounting of a Fireye ED510 display. It is commonly applied in burner management systems for boilers, furnaces, and ovens where the operator needs to view real-time flame safeguard data, such as purge timing, pilot trial for ignition, and lockout codes, directly from the panel exterior. It is an essential component when configuring Fireye Flame-Monitor and MicroM systems for user-friendly diagnostics and interaction.
