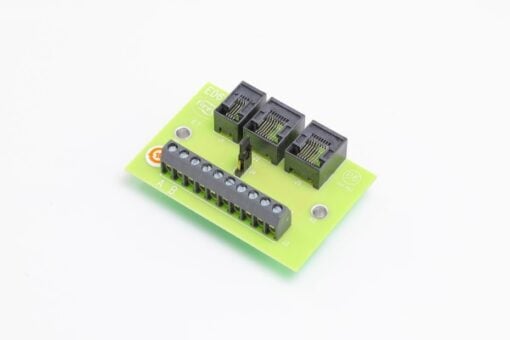

ED610 Fireye Cable Adaptor

Overview

The Fireye ED610 is a versatile multi-port cable adapter and terminal strip designed for the Flame-Monitor series of combustion control systems. It acts as a central hub to facilitate reliable remote cable connections between the E110 control module, the ED510 Display Module, and the E500 Communication Interface. This adapter is specifically engineered to maintain signal integrity in industrial environments, especially for installations where cable runs must exceed eight feet.

Features

• Multiple Connection Ports: Equipped with two RJ45 connectors and one RJ12 (4P4C) telephone-style jack for seamless integration with modular cables.
• Integrated Terminal Strip: Features a 10-connector terminal strip for secure hardwired connections using shielded cable.
• Robust Signal Transmission: Designed to facilitate long-distance communication (greater than 8 feet) between system components while minimizing electrical noise.
• Easy Installation: Includes a surface-mount design with two screw-hole locations for secure attachment to flat surfaces.
• User-Friendly Design: Includes clear labeling to ensure correct wiring and reduce installation time in complex retrofitting or new setups.

Specifications

• Model Number: ED610
• Connectors: 2 x RJ45, 1 x RJ12 (4P4C)
• Termination: 10-connector terminal strip
• Recommended Cable: 18 AWG, 8-conductor, low-capacitance shielded cable (e.g., Belden 9554) for remote displays
• Mounting: Surface mount with two screws
• Dimensions: Approximately 6.1 x 4.9 x 1.6 inches
• Weight: Approximately 0.08 to 0.2 lbs
• Origin: Manufactured in the United States

Applications

The ED610 is primarily used in commercial and industrial HVAC and burner management systems utilizing Fireye Flame-Monitor controls. It is essential for remote mounting the ED510 display module more than eight feet away from the main burner control. Additionally, it is used for multi-drop wiring configurations for Modbus protocol communications, allowing multiple E110 units to be networked to a single communication interface. It is suitable for confined spaces and demanding industrial boiler room environments.
