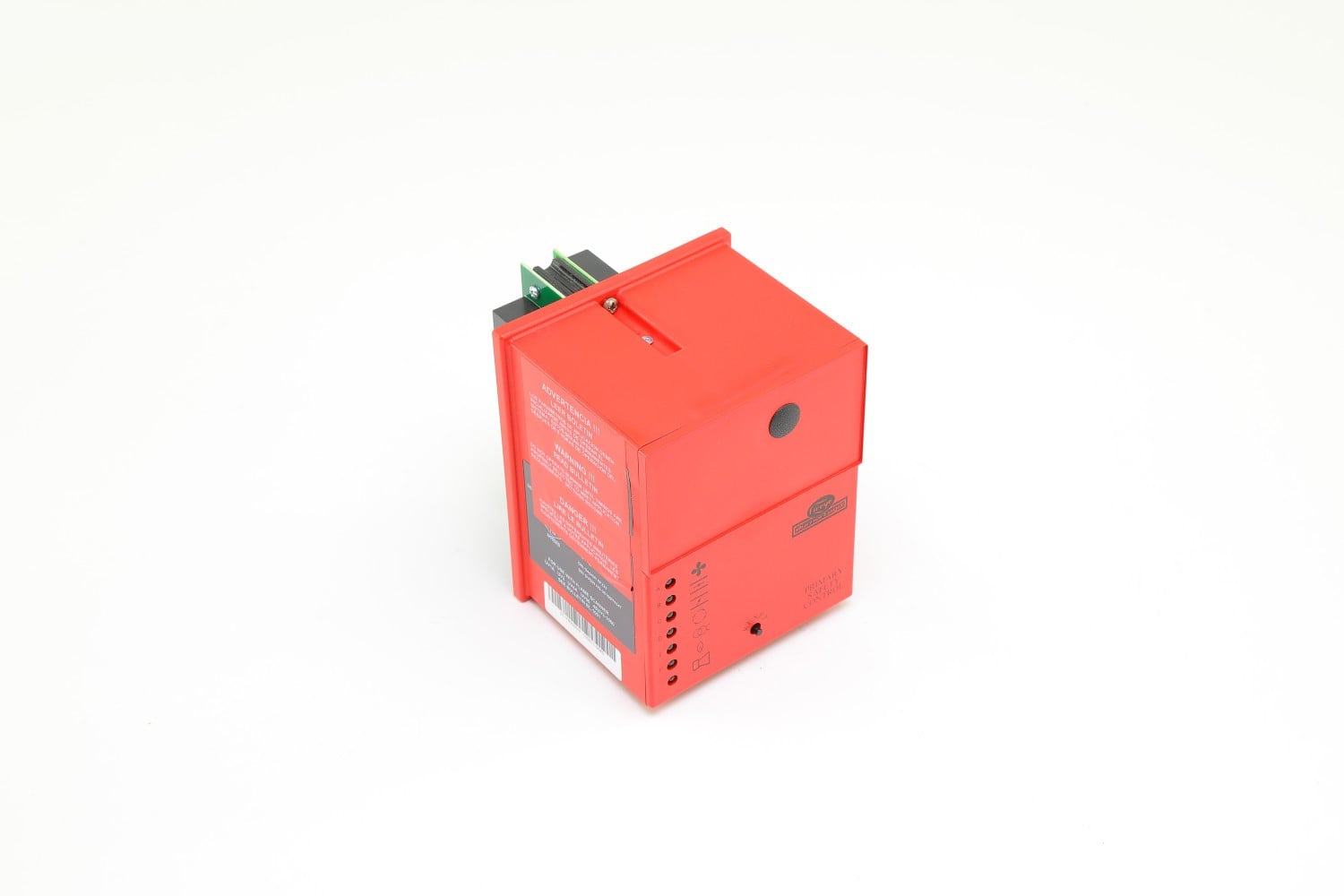

YB230FR Fireye Chassis

Overview

The Fireye YB230FR is a 230 VAC BurnerLogix chassis and flame safeguard controller designed for the safe operation of automatically ignited oil, gas, and combination fuel burners. This microprocessor-based integrated control system provides proper burner sequencing, ignition, and flame monitoring. The YB230FR specifically includes a built-in flame rectification amplifier, typically used with flame rods or compatible scanners. As an intelligent system, it features a sophisticated array of algorithms that allow it to adapt to the unique characteristics of the fuel being burned, dynamically setting internal thresholds to optimize detection accuracy.

Features

• Comprehensive flame safeguard control for burner sequencing and ignition.
• Integrated flame rectification amplifier for reliable signal processing.
• Intelligent adaptive technology that learns fuel characteristics and optimizes detection.
• Compact footprint compared to previous generations, saving cabinet space.
• Keypad-selectable parameters for streamlined configuration and reduced inventory needs.
• SMART LEDs provide real-time operating status and diagnostic lockout information.
• Non-volatile memory ensures the control remembers its history and position during power interruptions.
• Innovative pigtail wiring base design to simplify installation and upgrades.
• Valve proving and low gas pressure functionality for enhanced safety.
• ‘Revert to pilot’ feature to increase burner turndown capability.

Specifications

• Model: YB230FR
• Series: BurnerLogix Y-Series
• Supply Voltage: 230 VAC (+10%, -15%), 50/60 Hz
• Power Consumption: 25 VA
• Amplifier Type: Flame Rectification
• Temperature Rating: -40 degree F to +140 degree F (-40 degree C to +60 degree C)
• Protection Category: NEMA 1 (IP01)
• Shipping Weight: Approximately 3.2 lbs (1.45 kg)
• Approvals: UL, FM, and CE Approved
• Communications: Modbus via RS485 multi-drop link (optional)

Applications

The YB230FR is widely used in commercial and industrial combustion systems for monitoring and controlling flames in boiler systems, process heating, and other multi-fuel burner applications. It is specifically suited for systems requiring a 230 VAC power supply and flame rectification sensing technology. Its versatility makes it compatible with a variety of programmer modules to meet specific timing and functional requirements for different burner types and safety standards.
