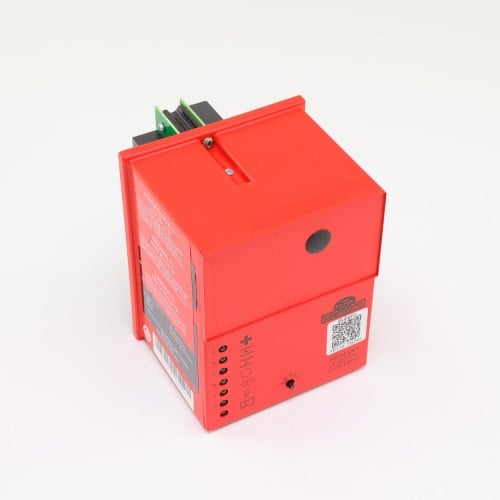

YB110IR2 Fireye Chassis

Overview

The Fireye YB110IR2 is a specialized 120V chassis and flame amplifier module from the BurnerLogix series, designed for industrial burner management and flame safeguard systems. It features an integrated infrared (IR) auto-check flame amplifier that processes IR signals to ensure accurate flame detection and verification. This specific model is designated for special applications, and users are typically advised to consult the factory before implementation.

Features

• Integrated infrared (IR) auto-check flame amplifier for reliable flame sensing.
• Non-volatile memory that retains control history even after power loss.
• Compatible with interchangeable YP programmer modules for versatile control functions and timing.
• Supports comprehensive burner control, managing ignition, fuel valves, and blower motors.
• Built-in self-diagnostics to enhance safety and ease of troubleshooting.

Specifications

• Model Number: YB110IR2
• Supply Voltage: 120 VAC (+10%, -15%) 50/60 Hz
• Power Consumption: 25 VA
• Temperature Rating: -40 degrees F to 140 degrees F (-40 degrees C to 60 degrees C)
• Protection Category: NEMA 1 (IP01)
• Shipping Weight: Approximately 3.2 lbs (1.45 kg)
• Approvals: UL, FM, and CE approved

Applications

The YB110IR2 is used in industrial and commercial combustion systems where infrared flame detection is required. It is a core component of the Fireye BurnerLogix system, providing the necessary flame amplification for safe burner startup and continuous operation. Due to its “special application” status, it is often used in specific heating environments that require precise infrared monitoring rather than standard ultraviolet or flame rectification methods.
