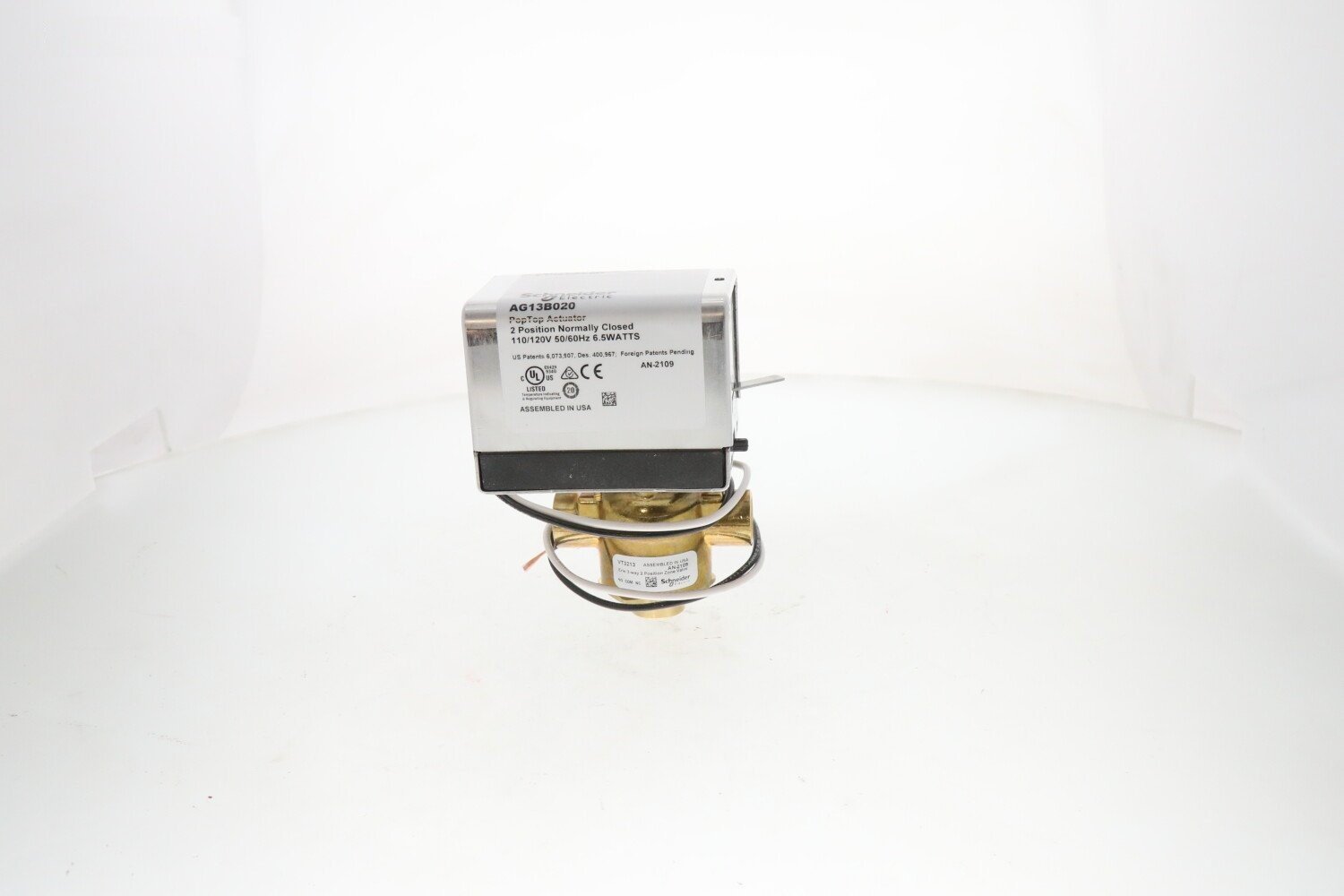

Overview of VT3213G13B020 Schneider Electric PopTop Valve Assembly (Erie)
The VT3213G13B020 is a PopTop style 3-way mixing/diverting zone valve designed for hydronic HVAC systems. It features a “PopTop” removable actuator style, sweat (solder) connections, and is engineered to operate reliably in heating and cooling zones. Its modular actuator mounting simplifies maintenance and replacement without disturbing piping.
Valve Assembly:
- Body Size: 1/2 in
- Configuration: 3-Way Mixing/Diverting
- Type: Zone
- Connection: Sweat
- Material Trim: Brass
- Flow Coefficient: 4 cv
- Control Media: Glycol 25 to 50% and Water
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: VT3
Product Alert: Not for use with steam
- Close-Off Pressure: 25 PSI
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 110 VAC, 115 VAC, 120 VAC
- Leads and Connections: 18 in Appliance
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1
Assembly Components:
- Valve Body: VT3213
- Valve Linkage: None, tool-less connection
- Actuator: AG13B020
- Actuator Range: Erie PopTop
Product Alert: Not for use with steam
| [Us] rated supply voltage | 110…120 V AC |
| Actuator Product Range | Erie PopTop |
| Actuator Product Series | AG |
| Actuator Type | Electric |
| Auxiliary Switch | No |
| Body Size | 15 mm (1/2 in) |
| Brand | Schneider Electric |
| By Schneider | Yes |
| California proposition 65 | |
| Circularity Profile | No need of specific recycling operations |
| Close-Off Pressure | 173 kPa |
| 25 psi | |
| Configuration | 3-Way Mixing/Diverting |
| Connection Type | Sweat |
| Control Signal | 2-Position (On/Off) |
| Final Result for Connectable | Connectable ready |
| Final Result for Flywheel performance tracking | Connectable products |
| Flow Characteristic | Quick open |
| Flow Coefficient | 3.46 kvs |
| 4 cv | |
| Humidity | 5…95 % non-condensing |
| IP Protection Rating | IP10 |
| Lead Length | 18 in |
| Leads and Connections | Appliance |
| Loss of Power Position | Normally closed |
| Loss of Power Type | Spring return |
| Manufacturer | Schneider Electric |
| Material Body | Forged brass |
| Material Stem | Nickel Plated Brass |
| Material Trim | Brass |
| Mechanical Movement | Rotary |
| Media Compatibility | Glycol 25 % |
| Glycol 30 % | |
| Glycol 50 % | |
| Water | |
| Motor Type | AC Synchronous Servo Motor |
| Override | Automatic reset |
| Packaging made with recycled cardboard | Yes |
| Packaging without single use plastic | No |
| Paddle Material | Buna N |
| Pipe Size | 1/2 in |
| Position Indicator | Housing Scale |
| Power Consumption Running VA | 7.5 VA AC |
| Pressure Allowable Static | 400 psi |
| Pressure Class | ANSI class 400 |
| Product Alert | Not for use with steam |
| Product Destination | zone valves |
| Product Or Component Type | Valve-actuator assembly |
| Seat Leakage | Port A: Class IV (0.01 %) |
| Seat Material | Port A: brass |
| Selection Tools | Valve Selection Tool |
| Stem Movement | Rotary |
| Take-back | No |
| Temperature Ambient Operating Range | 32…200 °F (0…93.3 °C) |
| Temperature Range Fluid | 32…199 °F (0…93 °C) |
| Temperature Shipping and Storage Range | -40…160 °F (-40…71 °C) |
| Valve Product Range | Erie PopTop |
| Valve Product Series | VT3 |
| Valve Type | Zone |
Features & Benefits
PopTop actuator design allows removal or replacement without breaking piping
3-way valve suitable for mixing or diverting flow within HVAC loops
Sweat connections ensure a secure and leak-resistant installation
120 VAC actuator compatible with standard power control systems
Modular design makes servicing easier and less disruptive
Applications
Hydronic heating and cooling zone control
Mixing boiler return water with supply water
Diverting flow between circuits in multi-zone systems
Retrofitting or replacing existing zone valves with minimal disruption
Installation & Maintenance Notes
Solder connections must be properly installed to avoid leaks or damage
Ensure actuator alignment and proper wiring to 120 VAC control
Use proper airflow clearance around valve body for heat dissipation
For PopTop design, actuator can be removed without disturbing valve body
Periodic checks recommended for valve movement and actuator function
