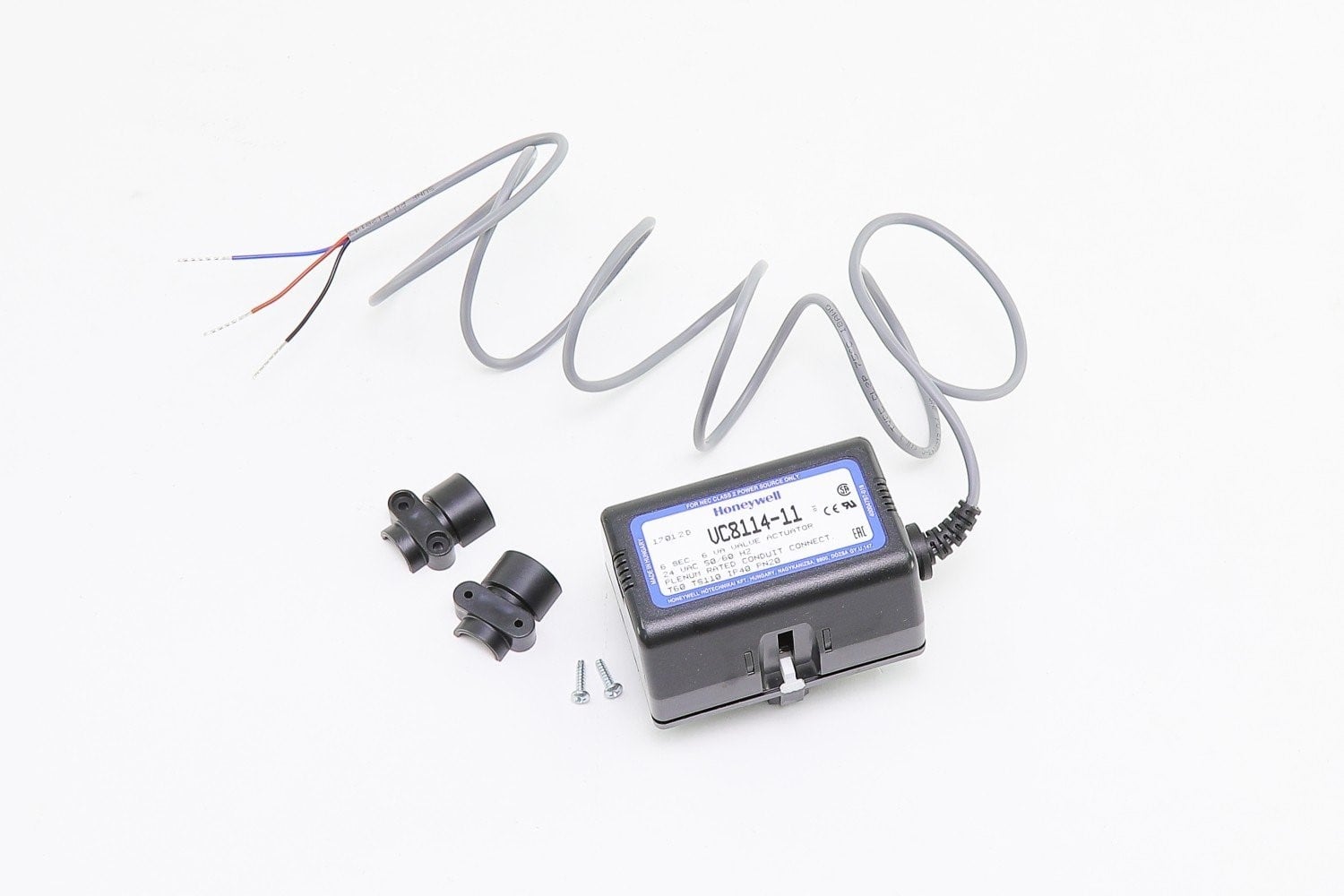

VC8114ZZ11 Honeywell Actuator
$69.50
24vac, SPST two position valve actuator, non spring return, use with two (vc1000) or three way (vc6000) valves, direct coupled mounting, 60psi maximum close rating, 5 foot plenum cable
VC8114ZZ11 Honeywell Actuator
Overview
Control central heating and cooling, fan coil systems, radiators and convectors. Depending on the model, it can be controlled by a low voltage SPST or SPDT switch, pulse-width modulated 24 Vac signal, or floating input, modulating controller.
Features
- Use with two-way or three-way valves.
- Double insulated actuator.
- Five foot plenum-rated cable.
- Quick and easy replacement of moving parts.
- Actuator head installation does not require draining the system.
- Selectable/switchable electronic fail safe normally open or normally closed.
- Available with valve bodies with 1000-series 2-way and 6000-series 3-way cartridges for new construction.
- All VC Series actuator-valve combinations provide 60 psi close-off.
Product Specifications
| Application | HVAC |
| Dimensions (in.) | 2.8 in. high x 3.7 in. wide x 2.7 in. deep |
| Dimensions (mm) | 70 mm high x 94 mm wide x 68 mm deep |
| Includes | Flexible conduit adapter |
| Used With | VC Series Valves, 1000 Series 2-way and 6000 Series 3-way |
| Weight (lb) | 0.75 lb |
| Weight (kg) | 0.34 kg |
| Materials | Plastic housing |
| Item Type | Product |
| Mounting | Direct Coupled |
| Frequency | 60 Hz |
| Approvals, Underwriters Laboratories Inc. | Listed 94-5V |
| Approvals, Canadian Standards Association | CSA Certified: LR1322-367 |
| Electrical Connections | Plenum-rated cable |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Supply Voltage | 24 Vac |
| Power Consumption | Driving– 6 VA |
| Shipping and Storage Temperature Range (F) | -40 F to +150 F |
| Shipping and Storage Temperature Range (C) | -40 C to +65 C |
| Approvals, CE | 89/336/ECC, 73/23/EEC |
| Ambient Temperature Range (C) | 0 C to 65 C |
| Ambient Temperature Range (F) | 32 F to 150 F |
| Electrical Connections (in.) | 5 ft. |
| Electrical Connections (mm) | 1.5 m |
| Environmental, Electrical or Ingress Protection Rating | Double Insulated, IP40 |
| Internal Auxiliary Switch | 0 |
| Fluid Temperature (C) | 95 C |
| Fluid Temperature (F) | 203 F |
| Actuator Type | Valve |
| Control Signal | Two position; SPST |
| Fail Safe Mode | Stays in place |
| Stroke (in.) | 0.4 in. |
| Stroke (mm) | 10 mm |
| Cable | Molded strain relief, conduit clamp |
| Timing, Nominal | Driving @ 60 Hz– 6 sec |
| Maximum Differential Pressure Ratings (Close-off) (psi) | 60 psid |
| Maximum Differential Pressure Ratings (Close-off) (kPa) | 400 kPa |
| Shaft Adapter Type | Self-alignment |
| Manual operation | Lever |
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 5 × 4 in |
