Overview

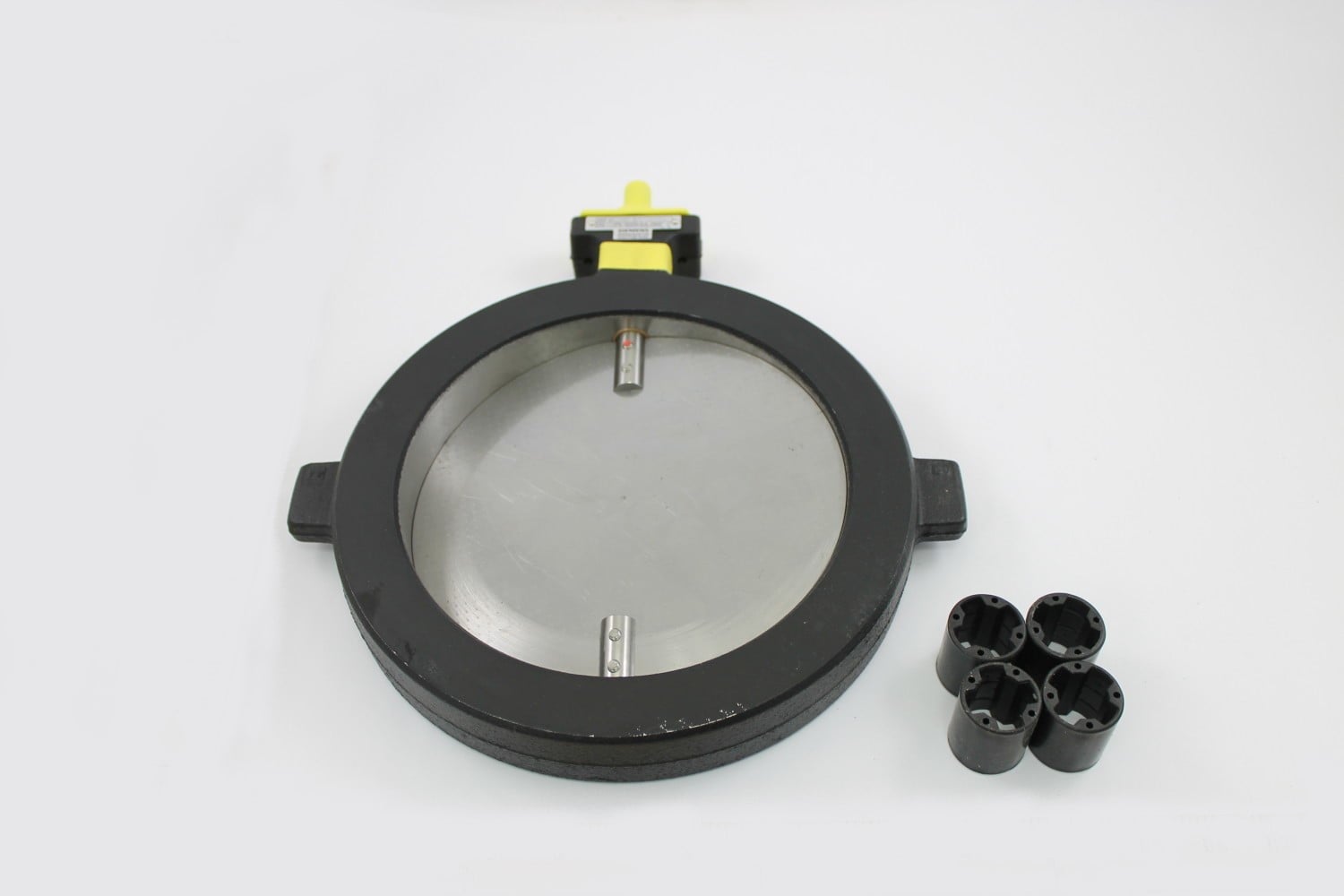

The Siemens VKF41.200C-MH is a high-capacity, flanged butterfly valve designed for the proportional flow control of air and various gases in industrial combustion systems. This 8-inch (DN200) valve is engineered for durability and precision, featuring a metallic tight-closing design that ensures minimal leakage. The “-MH” designation indicates that this specific model includes a factory-installed manual handle kit, allowing for manual flow restriction and positioning when an actuator is not being used.
Features
- Robust gray cast iron housing with stainless steel disk and shaft for long-term reliability
- Integrated manual handle kit with a locking mechanism and position indicator
- Metallic tight-closing disk designed to provide less than 0.7 percent leakage
- Bi-directional flow capability for versatile installation options
- Maintenance-free design suitable for demanding industrial environments
- Wafer-type construction for easy mounting between ANSI or DIN pipe flanges
Specifications
- Model Number: VKF41.200C-MH
- Nominal Diameter: 8 inches (DN200)
- Material: Cast iron body, stainless steel internals, Buna-N O-rings
- Flow Rate (kvs): 4000 m3/h
- Maximum Leakage Rate: 0.7 percent of maximum flow
- Angular Rotation: 85 degrees (for C-series models)
- Temperature Range: -20 C to +60 C (-4 F to +140 F)
- Compatible Mediums: Air, natural gas, propane, and other clean inert gases
Applications
- Supervision and control of gas and air flow in large-scale industrial burners
- Manual flow restriction in gas trains and combustion equipment
- Proportional flow control when paired with Siemens SQM5x series actuators
- HVAC systems requiring precise modulation of high-capacity gas lines
- Boiler and chiller sequencing circuits in closed systems
