VKF41.150C Siemens Valve

Overview

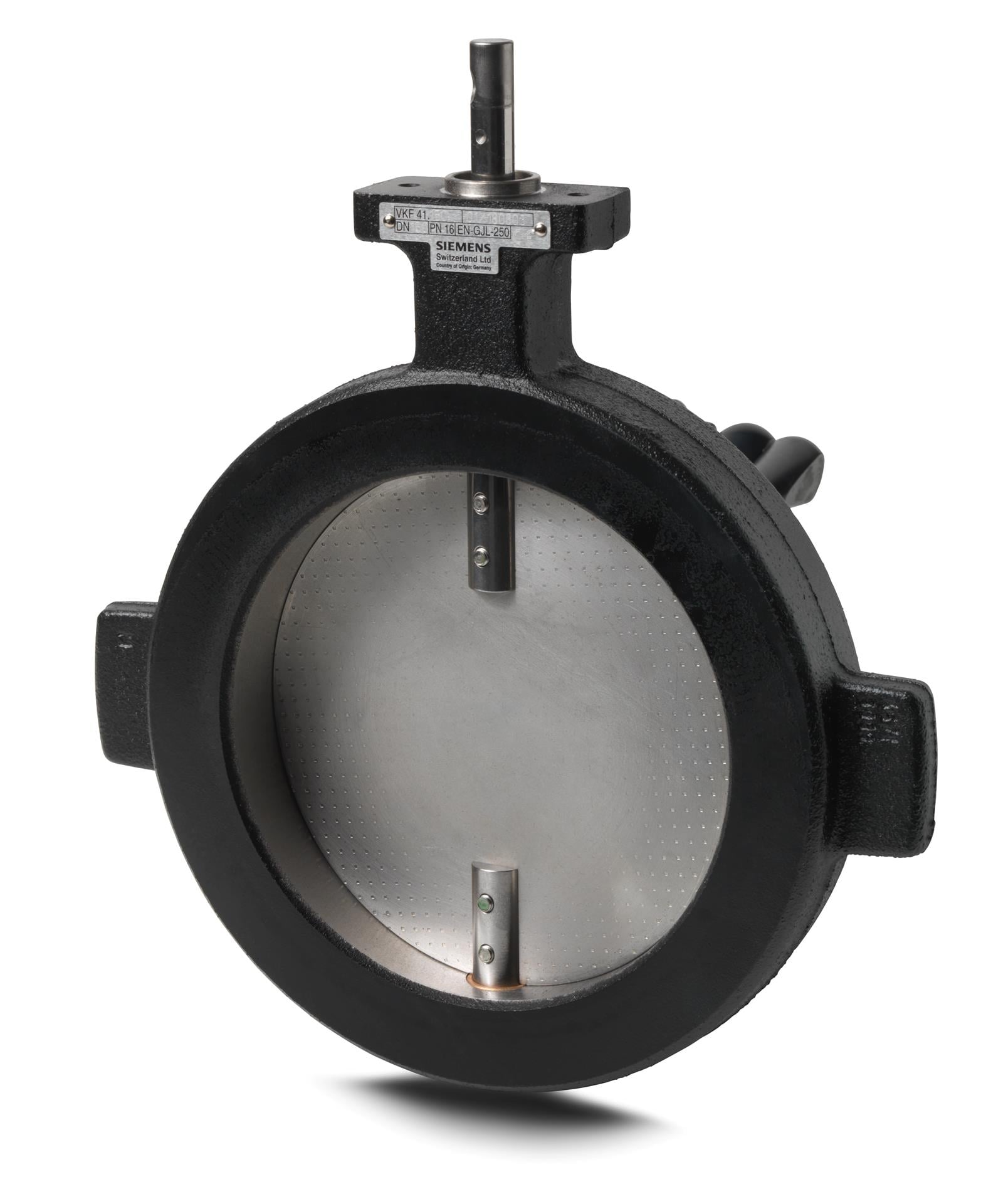

The Siemens VKF41.150C is a 6-inch (DN150) flanged butterfly valve specifically designed for controlling the flow of air and various types of clean gases, such as natural gas and propane. This wafer-type valve is engineered for integration into gas trains and industrial combustion plants, offering a metallically tight shutoff. It features a robust design that allows for mounting between common pipe flanges (PN6, PN10, or PN16) and can be operated manually with an optional handle or automated using Siemens SQM or SAL series actuators.

Features

• Metallically tight-closing disk ensures high sealing performance with minimal leakage
• Designed for wafer-style mounting between ANSI or DIN counter-flanges
• Bi-directional flow capability allows for flexible installation in various piping configurations
• Maintenance-free design with stainless steel disk and spindle for enhanced durability
• Compatible with a wide range of actuators including SQM33, SQM40, SQM45, and SQM50 series
• Integrated beveled disc design providing an 85-degree angle of rotation for precise throttling

Specifications

• Model: VKF41.150C
• Nominal Diameter: DN150 (6 inches)
• Flow Capacity (kvs): 2100 m3/h (water) or 5300 m3/h (air at delta p = 10 mbar)
• Leakage Rate: < 0.7% of kvs (or approximately 0.6% at 10 mbar air)
• Operating Pressure: -5 to 20 psig (-35 to 140 kPa)
• Gas Temperature Range: 0 to 140 F (-18 to 60 C)
• Body Material: Cast iron EN-GJL-250
• Internal Materials: Stainless steel disk and spindle with Buna-N O-rings
• Connection Standard: PN6, PN10, PN16 to ISO 7005

Applications

• Supervision and control of gas trains in gas-fired industrial equipment
• Air and gas flow control in industrial and commercial burner systems
• Throttling of natural gas, propane, and air in combustion plants
• Integration as a control or air valve for OEM burner management systems
• Flow regulation in large-scale HVAC and boiler applications requiring DN150 piping
