VG1841ER Johnson Controls Ball Valve

Overview

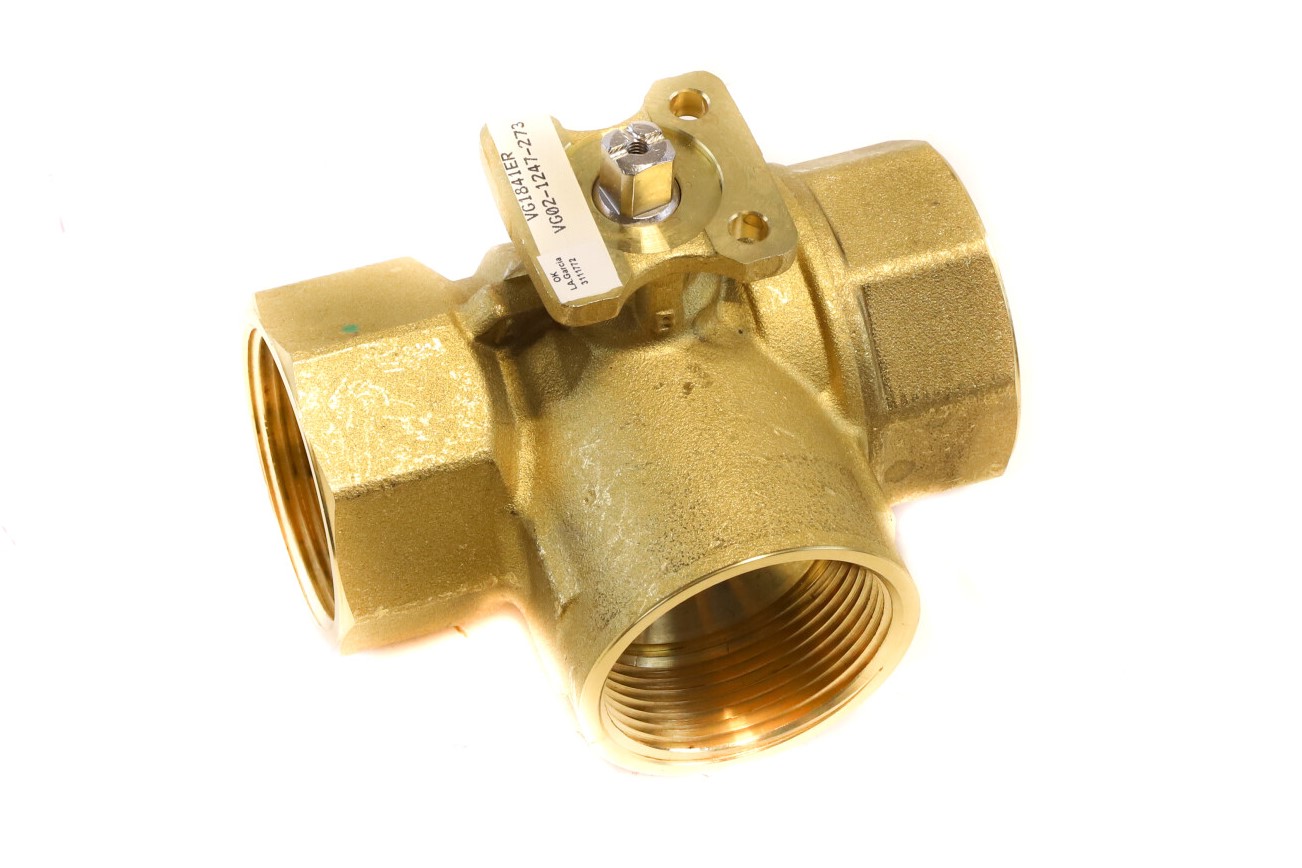

The Johnson Controls VG1841ER is a 1-1/2 inch 3-way forged brass ball valve designed to regulate the flow of hot or chilled water in response to the demand of a controller in HVAC systems. Part of the VG1000 Series, this valve configuration features a chrome-plated brass ball and stem assembly and is supplied without an actuator, allowing for flexible field pairing with compatible spring or non-spring return electric actuators.

Features

• Forged brass body provides a high static pressure rating of 580 psig.
• Chrome-plated brass ball and stem handles standard water applications reliably.
• Graphite-reinforced PTFE seats backed with EPDM o-rings ensure low operating torque and long-term wear resistance.
• Maintenance-free design tested to perform leak-free in excess of 200,000 cycles.
• High rangeability of greater than 500:1 provides precise control under all load conditions.

Specifications

• Valve Size: 1-1/2 inches
• Port Configuration: 3-Way
• Flow Coefficient (Cv): 29.2
• Body Material: Forged Brass
• Trim Material: Plated Brass
• Connection Type: NPT Ends
• Maximum Static Pressure Rating: 580 psig (PN40)
• Maximum Closeoff Pressure: 200 psid
• Fluid Temperature Range: 23°F to 203°F (-5°C to 95°C)
• Flow Characteristic: Equal Percentage

Applications

• Designed for commercial HVAC systems to regulate the flow of hot and chilled water.
• Ideal for hydronic heating and cooling loops requiring automated temperature control.
• Suitable for use with water or water-glycol solutions containing up to 50% glycol.
