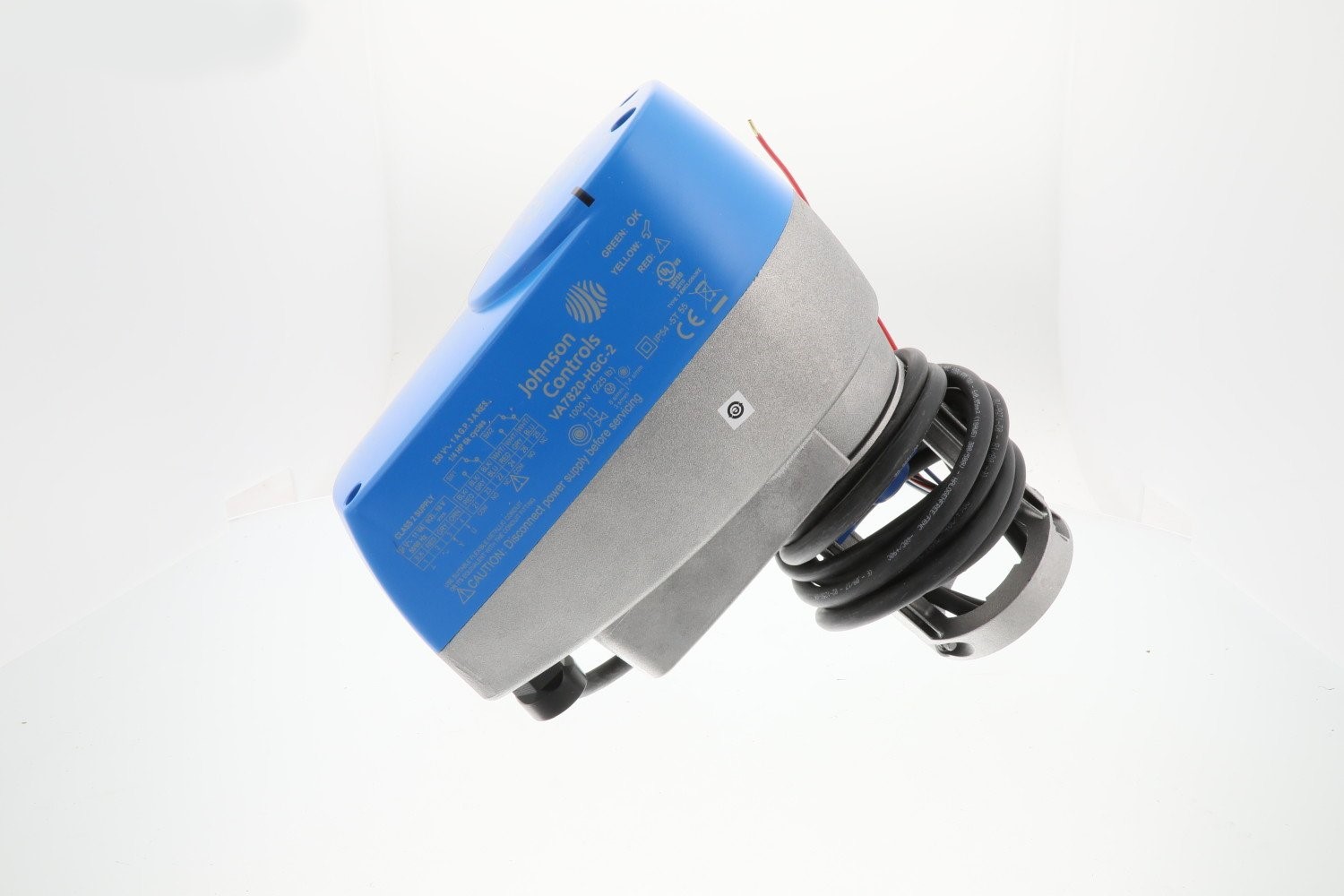

VA7820-HGC-2 Johnson Controls Actuator
$916.40
24Vac, Two Position, Floating Control, or Proportional, 0-10Vdc, 2-10Vdc, (0)4-20mA, 180 lb-in Torque, 5/16″-1″ Stroke, 48″ Cable, Spring Return Stem Up Direct Coupled Globe Valve Actuator with Manual Override with 1 SPDT Auxiliary Switch
1 in stock (can be backordered)
The Johnson Controls VA7820-HGC-2 Actuator 0 TO 10 VDC proportional control, with two (2) auxiliary switches. Spring Return Extend.
The Johnson Controls VA7820-HGC-2 is a versatile spring return electric globe valve actuator engineered for HVAC applications requiring two-position, floating, or proportional control. It supports industry-standard input signals—0–10 VDC, 2–10 VDC, and (0)4–20 mA—providing precise modulation of water, steam, or glycol-based systems.
Delivering 180 lb-in torque, the actuator offers reliable performance in demanding environments. Its spring return function (stem up) ensures safe default positioning during power failure. It features a 5/16″–1″ stroke range, manual override, a 48″ prewired cable, and a built-in SPDT auxiliary switch for additional control or feedback signaling.
Ideal for use with Johnson Controls VG7000, VG8000, and VG9000 series valves, the VA7820-HGC-2 ensures reliable operation in commercial and industrial HVAC systems.
| Weight | 14 lbs |
|---|---|
| Dimensions | 16 × 11 × 9 in |
