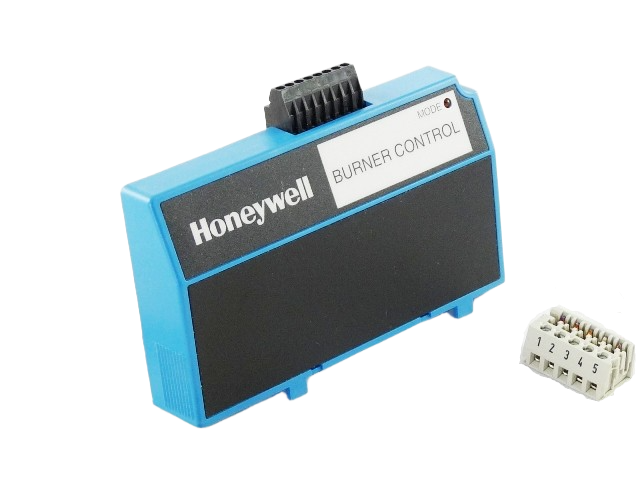

S7810M1029 Honeywell ControlBus / Modbus Module
$358.20
The Honeywell S7810M1029 MODBUS DATA ControlBUS Module CE APPROVED; ModBus Module, Operates as ModBus RTU Slave Device, 13Vdc Peak Fullwave Rectified Voltage, Includes 8 Pin Electrical Connector, Provides Ability to Remotely Mount the S7800 Keyboard Display Module, -40-140 Degree Ambient Temperature Range, No Reset Allowed
The Honeywell S7810M1029 MODBUS DATA ControlBUS Module CE APPROVED
Overview
The Honeywell S7810M1029 is a communication interface module for burner control systems. It acts as a bridge between the internal ControlBus network and external systems using Modbus RTU / ASCII protocols. Designed for integration and expandability, this module supports data exchange, diagnostics, and remote monitoring functionality while maintaining compatibility with Honeywell’s 7800 series architecture.
Specifications
| Specification | Details |
|---|---|
| Model | S7810M1029 |
| Module Type | ControlBus / Modbus communication interface |
| Protocol Support | Modbus RTU / ASCII over ControlBus |
| Network Role | Gateway between internal modules and external systems |
| Connection Interface | 8-pin electrical connector (standard) |
| Mounting | Slot-mounted in the control chassis or module rack |
| Functionality | Data routing, diagnostics, remote communication |
| Compatibility | Designed for use with Honeywell 7800 series burner control systems |
| Enclosure / Housing | Standard module format suited for control panel environments |
Key Features & Benefits
-
Facilitates Modbus communication across Honeywell ControlBus architecture
-
Enables remote monitoring and control via external automation systems
-
Modular design allows for system expansion and future upgrades
-
Supports diagnostic data and system status visibility via Modbus interface
-
Seamlessly integrates into existing 7800 Series control systems
-
Ideal for retrofit or new systems requiring networked interface capability
Applications
-
Connection of burner systems to building automation or SCADA networks
-
Remote data access, fault reporting, and system monitoring
-
Expansion of controller capabilities in 7800 Series installations
-
Integration of control and data in industrial burner applications
Installation & Usage Notes
-
Install the module in the correct slot within the controller chassis
-
Connect the 8-pin interface properly following wiring diagram
-
Configure Modbus settings such as addresses, baud rates, and parity
-
Validate data communication paths and test remote access
-
Maintain module access and ensure signal wiring is protected from noise
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 4 × 3 in |
