S-232-503 Johnson Controls

Datasheet

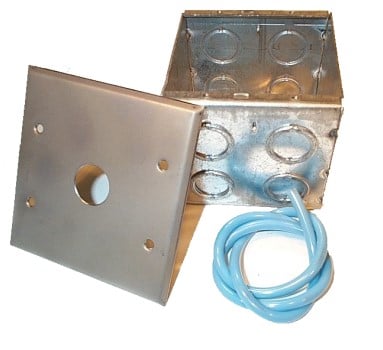

The Johnson Controls S-232-503 FLUSH BOX F/1-Switch; FLUSH BOX FOR 1-Switch

The S-2300 Pneumatic Selector Switch is designed for manual switching of air flow in pneumatic control systems. Five models of the S-2300 are available; each can be field programmed for two-, three-, or four-position switching.

A four-window switchplate assembly and a complete set of self-adhesive service labels used to display the service selected are furnished with each S-2300. Two switchplate window blanks and a selfthreading stop screw are also provided to allow the S-2300 to be field programmed for the number of switching positions required.

Installation

The S-2300 is designed for panel mounting and is furnished with barbed fittings for 1/4 in. O.D. polytubing. Refer to Fig. 4 for space requirements and additional mounting details. Note: All models are furnished with a rubber sealing cap to block off the unused air connection when required. For S-2300 installations that are not panel mounted, use either an S-232-503 Single Selector Switch Wallbox Kit or an S-232-504 Double Selector Switch Wallbox Kit (both ordered separately) to mount and protect the S-2300.
