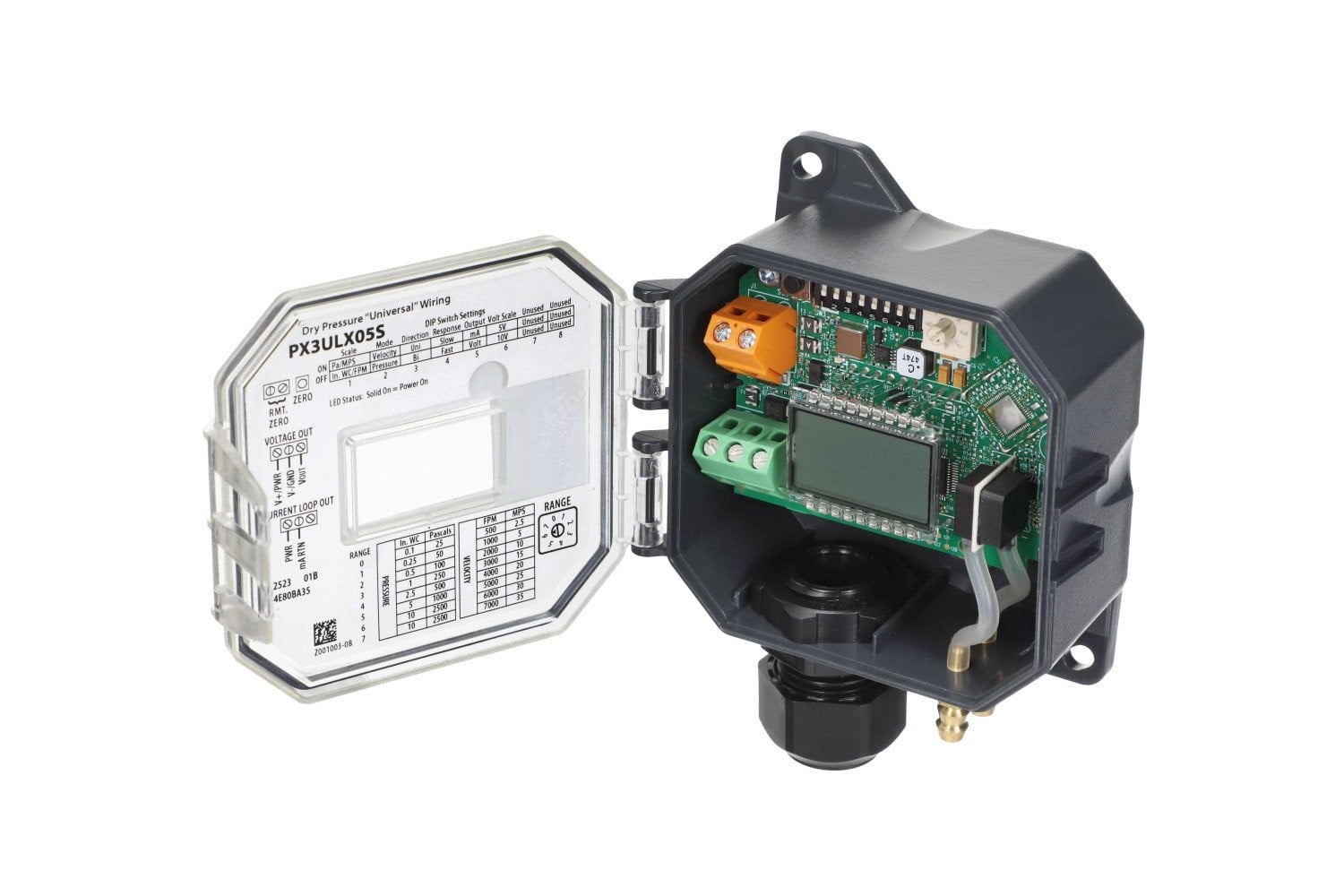

PX3ULX05S Veris Transducer
$172.00
PX3ULX05S Veris Transducer Universal Enclosure Dry Media Differential Pressure/Air Velocity Transducer with LCD Display, 0 to 10 in-WG
SPECIFICATIONS
| Application Zone | : | Plant Room |
| Application | : | Duct Pressure Monitoring | Filter Monitoring | Fan Monitoring | VAV Control | Air Velocity Monitoring |
| Bluetooth Communication | : | No |
| Brand | : | Veris |
| Burst Pressure | : | 5 psid (34 500 Pa) |
| Calibration Certificate | : | No |
| Dimension Depth | : | 1.6″ (42 mm) |
| Dimension Height | : | 4.4″ (112 mm) |
| Dimension Probe Diameter | : | 0.3″ (7 mm) |
| Dimension Probe Length | : | 7.4″ (188 mm) |
| Dimension Weight | : | 4.4 oz (125 g) |
| Dimension Width | : | 3.5″ (88 mm) |
| Display Precision | : | 0.001 |
| Display Size | : | 0.7″ x 1.1″ (17 mm x 28 mm) |
| Display Type | : | LCD |
| Electrical Wiring Size | : | AWG 22 (35 mm²) |
| Electrical Wiring | : | 3-wires |
| Enclosure Material | : | ABS Plastic |
| Fitting Material | : | Brass |
| Fitting Size | : | 0.24″ (6 mm) |
| Fitting Type | : | Male |
| IP Protection | : | IP65 (NEMA 4) |
| LED Indicator Type | : | RGB |
| Measurement Type | : | Differential Pressure |
| Medium | : | Air | Gas |
| Model | : | PX3ULX05S |
| Mounting | : | Duct | Panel |
| Operating Temperature | : | -4 – 140 °F (-20 – 60 °C) |
| Output Specifications | : | 4 – 20 mA | 0 – 5 V | 0 – 10 V |
| Outputs | : | Analog output |
| Pressure Measurement Accuracy | : | ±1% of F.S. |
| Pressure Measurement Range | : | 0.1″WC (25 Pa) | 0.25″WC (50 Pa) | 0.5″WC (100 Pa) | 1″WC (250 Pa) | 2.5″WC (500 Pa) | 5″WC (1000 Pa) | 10″WC (2500 Pa) |
| Product Certification | : | CE |
| Product Type | : | Sensor |
| Range | : | PX3 |
| Standards EMC | : | EN 61000-6-3 | Class B | EN 61000-6-1 | EN61326-1 | EN61326-2-3 |
| Supply Voltage AC Nominal | : | 24 VAC |
| Supply Voltage DC Range | : | 12 – 30 VDC |
| Warranty | : | 5 years |
Overview
The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The PX3ULX05S non bluetooth universal model comes in one pressure/velocity range – 0 to 10 in-WG/0 to 7000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.
- LCD Display
- High accuracy digital sensor with seven selectable pressure and eight velocity sub-ranges, maintains calibration and reduces callbacks
- High reliability sensor technology for long-term, maintenance-free operation
- Excellent tolerance to overpressure and vibration reduces field failures
- Water resistant housing – IP65/NEMA 4 housing allows for mounting in wash-down locations
- Circuit protection avoids damage due to incorrect input wiring
- Universal enclosure
- Uni-directional or bi-directional, DIP switch selectable modes
- Pushbutton auto-zero and digital input (2-position terminal block)
- For indoor or outdoor use
For the bluetooth version, see PX3ULX05
Description
The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The PX3 is available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity options: 0-1 in. WC / 0-3,000 ft/min or 1-10 in. WC / 3,000-6,000 ft/min with four field-selectable subranges. The universal model comes in one pressure/velocity range: 0-10 in. WC / 0-7,000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. All variants are available with and without display. The PX3 has an IP65/NEMA 4 environmental rating and a 5-year limited warranty.
Features
- Reduce field failures Excellent tolerance to overpressure & vibration reduces field failures
- Reduce setup Selectable ranges and scales reduce setup time and number of models to stock
- High accuracy High accuracy digital sensor with seven selectable pressure and eight velocity sub-ranges, maintains calibration and reduces callbacks
- Water-resistant housing IP65/NEMA 4 housing allows for mounting in wash-down locations
- Maintenance free High reliability sensor technology for long-term, maintenance-free operation
- Circuit protection Circuit protection avoids damage due to incorrect input wiring
APPLICATIONS
- Duct static pressure (Pressure mode)
- Building or room pressure (Pressure mode)
- Filter status (Pressure mode)
- Air flow measurement (Velocity mode)
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 8 × 3 in |
