RM7800L1087 Honeywell Burner Control

RM7800L1087 Installation Guide

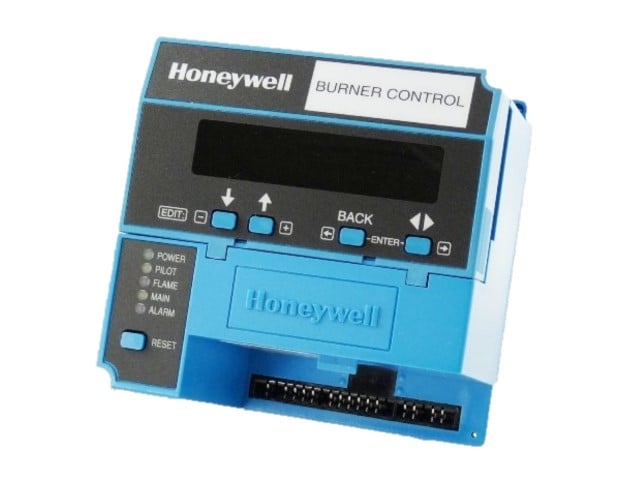

Honeywell RM7800L1087 Burner Control (120 VAC, Integrated Flame Safeguard & Valve Proving)

Overview of RM7800L1087 Honeywell Burner Control

The Honeywell RM7800L1087 is part of the modular 7800 series of burner safety/monitor controls. Designed for use in oil, gas, or combination fuel systems, it supports safety sequencing, diagnostics, modular expandability, and integration with peripheral modules such as displays, amplifiers, and reset interfaces.

Specifications

Key Features & Benefits

• Supports multiple fuel modes (full, LHL, LF/HF) and safety logic

• Diagnostic capability and fault history reporting

• Modular design makes it easy to add or replace displays, actuators, reset units

• Built-in support for peripheral modules within the 7800 series

• Designed for reliable performance in industrial combustion environments

Applications

• Boiler and furnace burner control systems

• Systems requiring modular expansion and diagnostics

• Retrofit upgrades from older control modules to modern 7800 architecture

• Installations needing robust control combined with fault diagnostic capability

Installation & Maintenance Notes

• Install module into the keyed slot in the relay chassis

• Connect matching peripherals (display, amplifiers) as needed

• During setup, confirm sequencing, flame detection, and logic behavior

• Use the diagnostics display to monitor status and troubleshoot faults

• Periodically inspect module sockets, wiring, and connectors for integrity
