C7915A1028 Honeywell Flame Sensor
$889.00

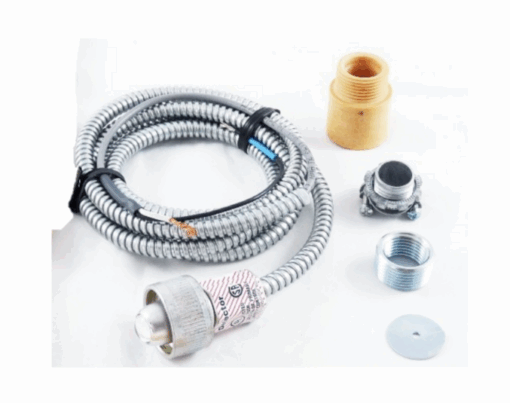

The Honeywell C7915A1028 Flame Sensor, Infrared (Lead Sulfide) with mount
Overview
The C7915 Flame Detectors include a lead sulfide photocell that is sensitive to the infrared radiation emitted by the combustion of fuels such as natural gas, oil, and coal.
Features
- Used for combination or dual-fuel applications.
- Detects pilot and main flame.
- Mounts quickly and easily on a standard 3/4 in. sighting pipe.
- Works where flame rod or rectifying photocell mounts are difficult to apply.
- The C7915 includes 50019469-001 Bushing with magnifying lens.
- The C7915 uses photoconductive lead sulfide cells 32007255-001.
Product Specifications
|
Application |
Used for combination or dual-fuel applications |
|
Dimensions (in.) |
1 1/4 in. diameter x 2 1/4 in. long |
|
Dimensions (mm) |
32 mm diameter x 58 mm long |
|
Includes |
With magnifying lens, 32007255-001 Cell, Orifice, heat block, and reducer bushing |
|
Used With |
Flame Amplifiers: R7852 |
|
Comments |
Infrared (Lead Sulfide) Flame Detector |
|
Mounting |
3/4 in. NPT |
|
Approvals, Underwriters Laboratories Inc. |
Listed: File No. MP268, Guide No. MCCZ |
|
Approvals, Canadian Standards Association |
Certified: Master Report LR95329-1 |
|
Electrical Connections |
Two no.18 AWG wires |
|
Approvals, Swiss RE |
Acceptable |
|
Approvals, Factory Mutual |
Approved: Report No. 24181.03 |
|
Ambient Temperature Range (F) |
-20F to 125F operating range |
|
Ambient Temperature Range (C) |
-18C to 52 operating range |
|
Lead Length (in.) |
48 in. |
|
Lead Length (mm) |
1219 mm |
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 5 × 3 in |
