R7847C1005 Honeywell Flame Amplifier
$780.00

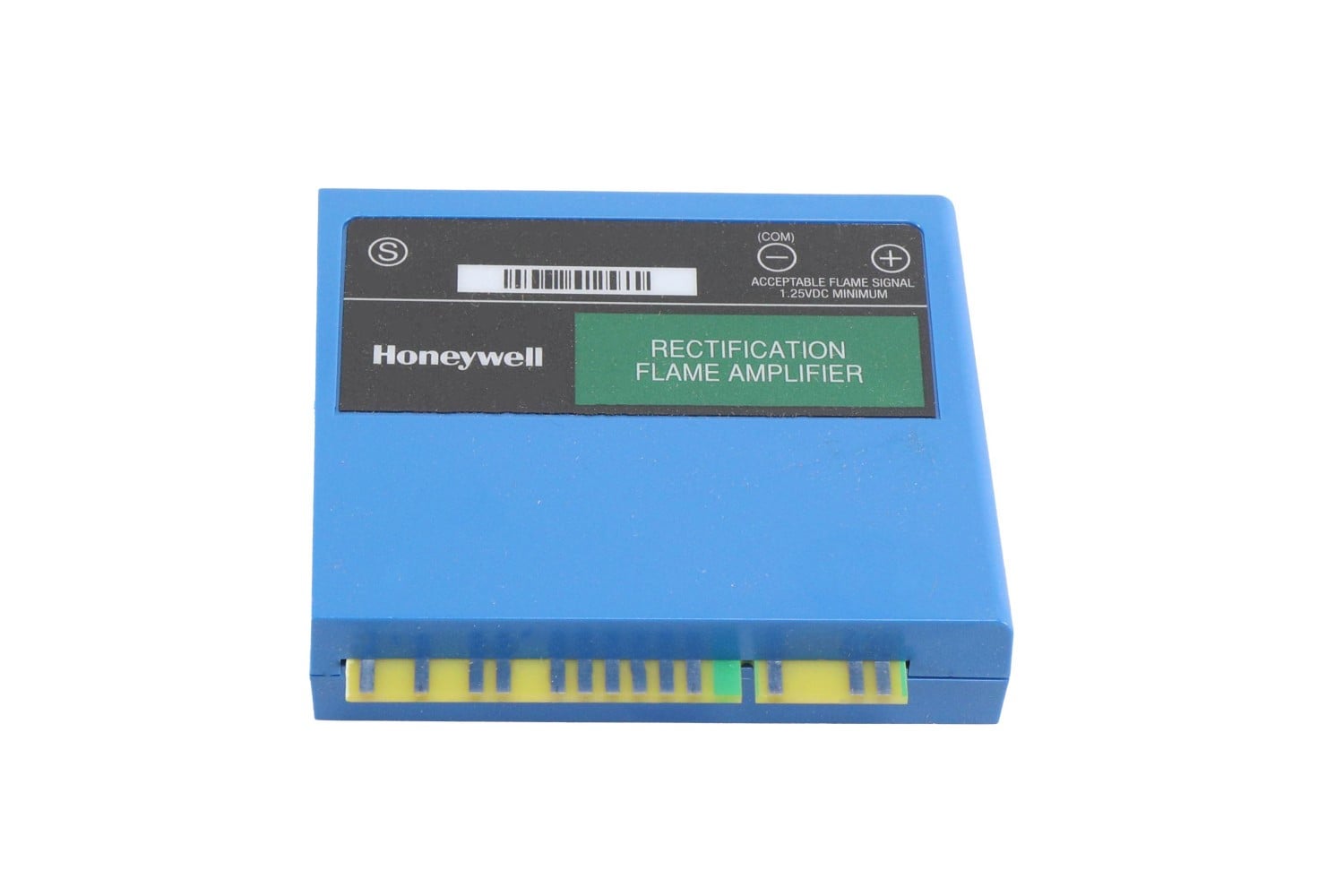

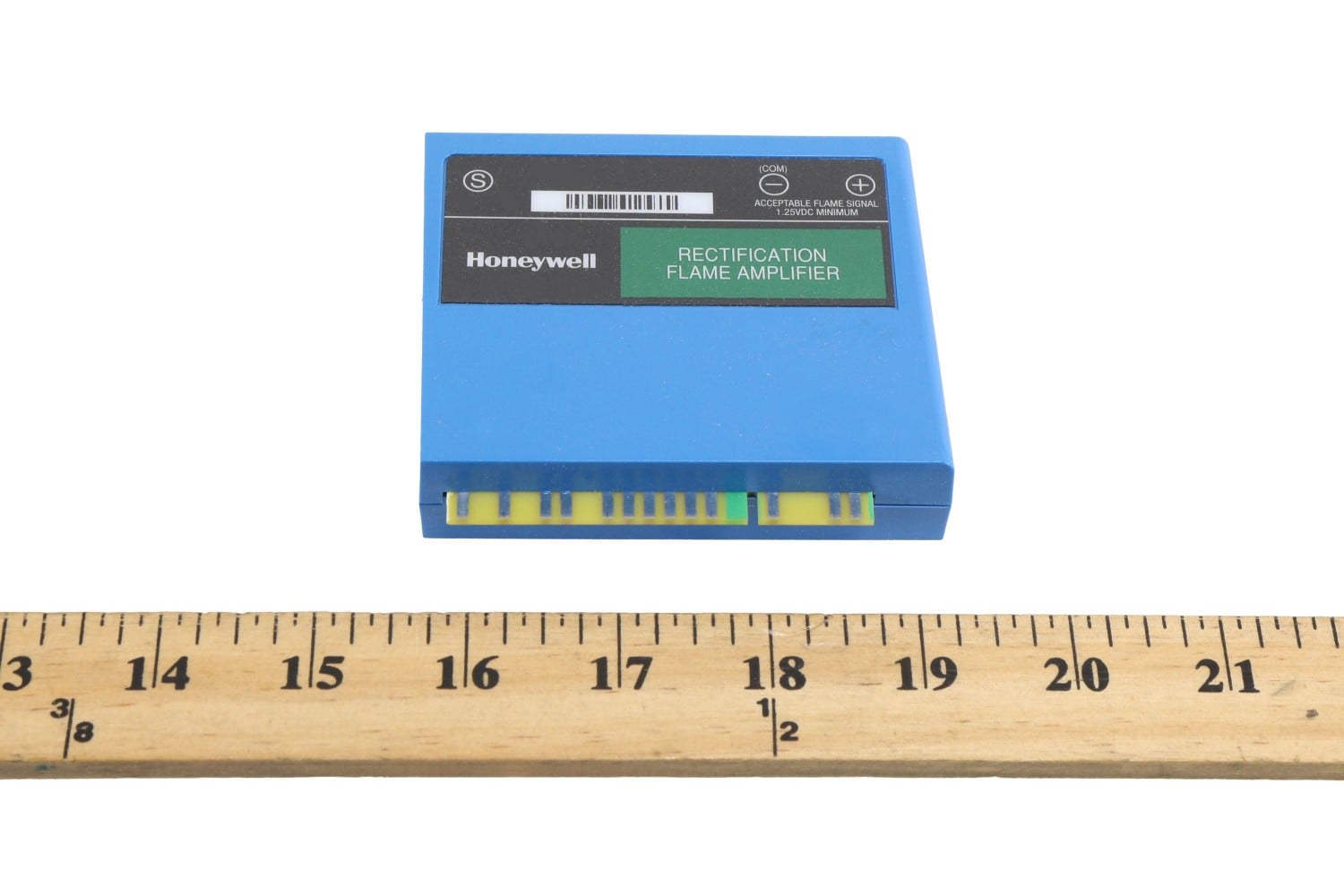

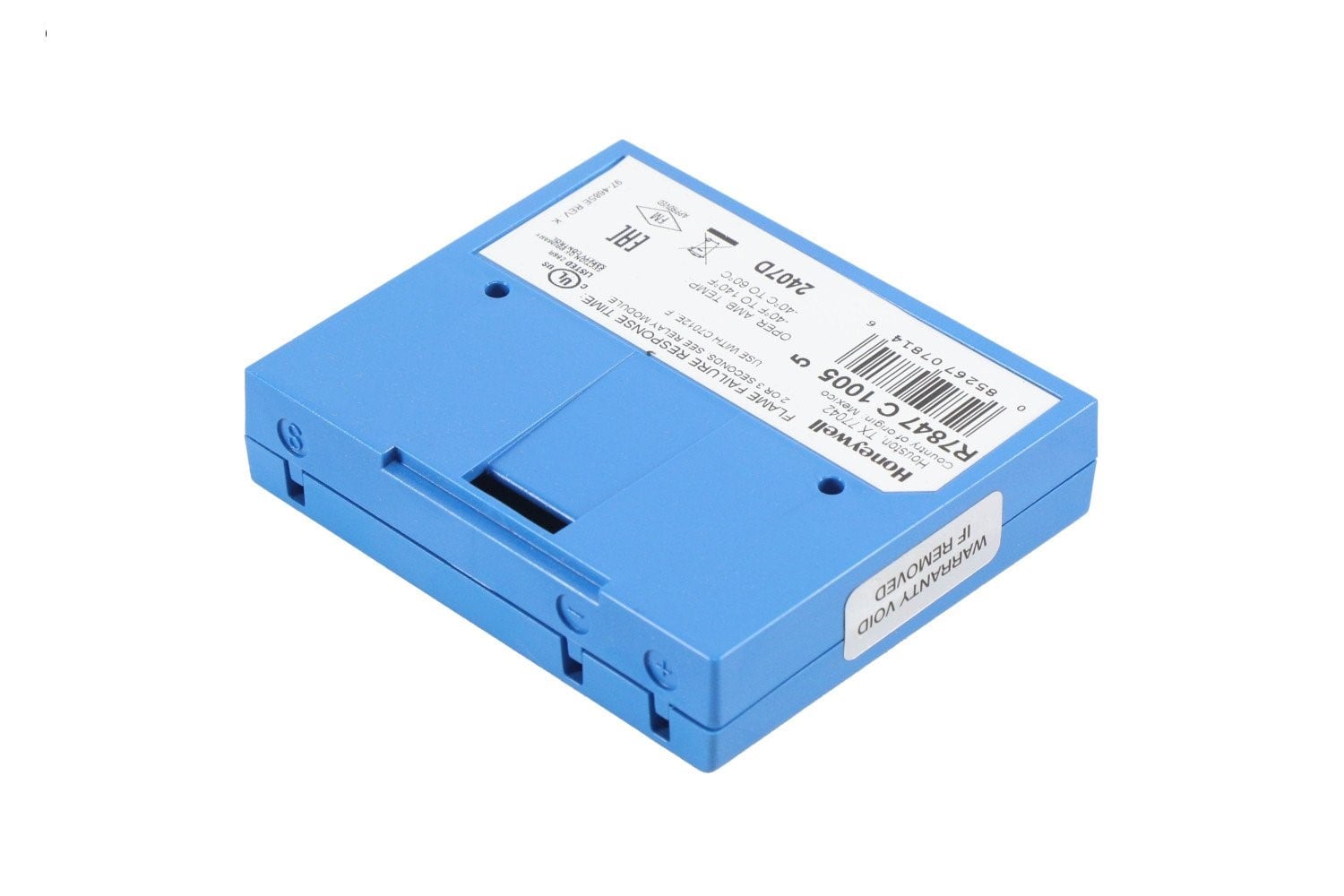

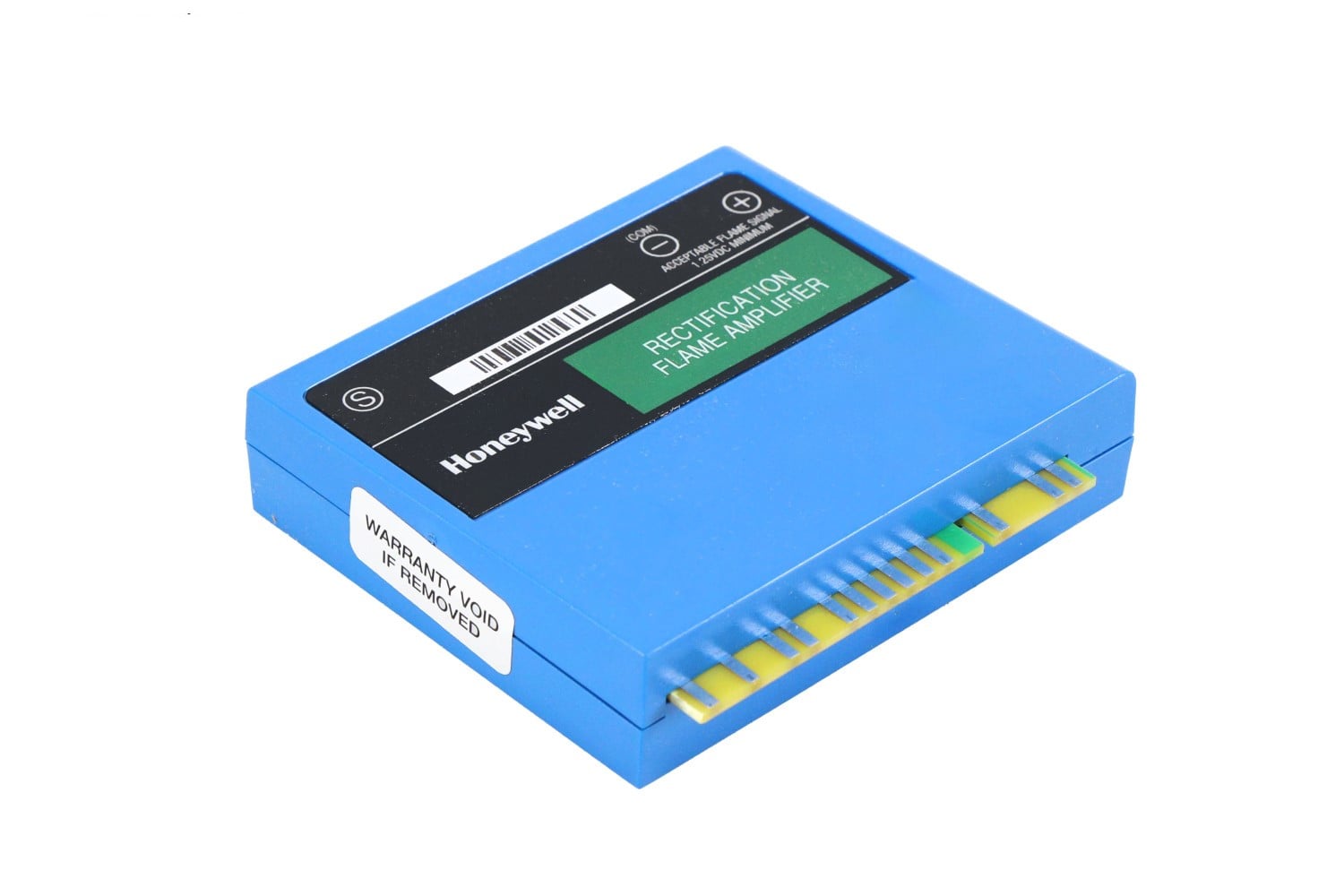

R7847C1005 Honeywell Flame Signal Amplifier, 2 Second or 3 Second Flame Failure Response Time, Dynamic Self Check, Gas,Oil, Coal: Ultraviolet Flame Sensor C7012A and C, Use with 7800 Series Primary Safety Control, Color: Green, Flame Signal Strength Ranges from 0.0-5 Vdc
2 in stock
Product Overview
The Honeywell R7847C1005 Flame Amplifier is a rectification flame amplifier with dynamic self-check diagnostics, made for use with Honeywell 7800 Series relay modules. It offers selectable flame failure response times (FFRT) of 2.0 or 3.0 seconds, delivers a 0-5 Vdc flame signal output, and works especially well with UV flame sensors C7012E and C7012F. The module features flame signal test jacks, a keyed plug-in printed circuit board (PCB) edge connector, and green labeling to clearly indicate its detection type.
Key Features
-
Selectable FFRT: 2.0 or 3.0 second flame failure response time, providing safety and flexibility.
-
Flame Signal Output: Range from 0.0 to 5.0 Vdc, enabling accurate flame strength measurement.
-
Dynamic Self-Check: Monitors UV sensor detectors and amplifier electronics; locks out on detection system failure.
-
Detection Type: Uses rectification flame amplifier design, compatible with UV flame sensors – especially C7012E / C7012F types.
-
Relay Module Compatibility: Plug-in, keyed connector for seamless fit with Honeywell 7800 Series relay modules.
-
Flame Signal Test Jacks: Built-in test jacks to verify flame signal voltage easily.
-
Color Coding: Green label identifying this unit as a rectification flame amplifier for easy field identification.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | Honeywell R7847C1005 Flame Amplifier |
| Flame Failure Response Time (FFRT) | 2.0 or 3.0 seconds |
| Flame Signal Voltage Output | 0.0 – 5.0 Vdc |
| Detection Type | Rectification with dynamic self-check |
| Compatible UV Flame Sensors | C7012E, C7012F |
| Relay Module Compatibility | Honeywell 7800 Series relay modules |
| Flame Signal Test Jacks | Yes – for checking amplifier signal strength |
| Self-Check / Diagnostics | Dynamic self-check mode with safety lock-out on failure |
| Label Color / Identification | Green label for rectification type |
| Operating Temperature | −40°F to +140°F (−40°C to +60°C) |
| Storage Temperature | −40°F to +150°F (−40°C to +65°C) |
| Humidity Rating | Up to ~85% RH, non-condensing |
Applications
-
Burner safety and flame detection in commercial & industrial systems
-
Use with UV flame sensors (C7012E, C7012F) requiring dynamic monitoring
-
Situations needing reliable 2.0 / 3.0 second FFRT protection
-
Replacing or upgrading components for Honeywell 7800 Series relay modules
-
Flame safeguard systems that require flame signal test jacks
Benefits
-
Enhanced safety with dynamic self-check that monitors both detector and amplifier for faults
-
Flexible response time setting (2.0 or 3.0 seconds) to match burner or application requirements
-
Accurate flame monitoring via 0-5 Vdc output and built-in test jacks
-
Easy installation using plug-in keyed edge connector
-
Clear detection type identification with green label to reduce maintenance errors
| Weight | 5 lbs |
|---|---|
| Dimensions | 6 × 4 × 3 in |
