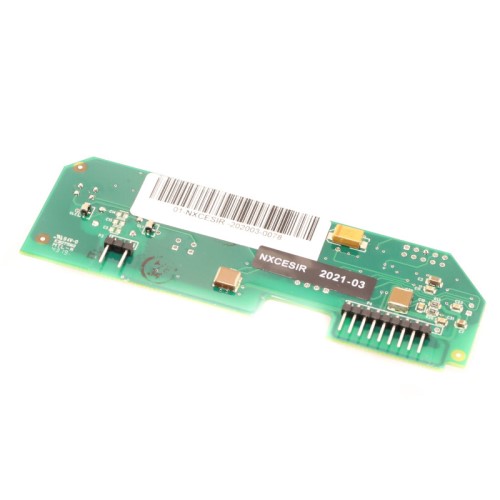

NXCESIR Fireye Plug-In Amplifier Card

Overview

The Fireye NXCESIR is a plug-in infrared (IR) flame amplifier card designed specifically for the Fireye Nexus NXF4000 parallel positioning controller. This module provides essential flame detection and monitoring capabilities, acting as the interface between the controller and an IR flame scanner. It is engineered for multi-fuel applications where fuel switch-over between oil and gas is common or where infrared energy is the primary source for flame verification.

Features

• Infrared (IR) flame signal detection and amplification for precise flame verification
• Plug-in design allows for easy field installation and quick replacement without increasing the controller’s footprint
• Single flame sensing channel dedicated to IR scanner interfaces
• Compatible with Fireye 48PT2 infrared scanners
• Supports stable ignition sequencing and continuous flame monitoring in industrial environments

Specifications

• Model Number: NXCESIR
• Compatibility: Fireye Nexus NXF4000 Parallel Positioning System
• Supported Scanner: Fireye 48PT2 Infrared Scanner
• Terminal Voltage: S1/S2 terminals can carry high voltage; UV models specifically reach up to 300VDC
• Mounting: Internal plug-in mounting on the NXF4000 main circuit board
• Operating Temperature: 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C)
• Power Consumption: Approximately 15 VA (total for NXF4000 system)

Applications

The NXCESIR is used in commercial and industrial burner management and flame safeguard systems. It is the recommended choice for multi-fuel applications (liquid and gaseous fuels) where infrared energy is abundant. It is commonly integrated into boiler systems and process burners that utilize the Fireye Nexus NXF4000 controller for advanced parallel positioning and integrated flame safety.
