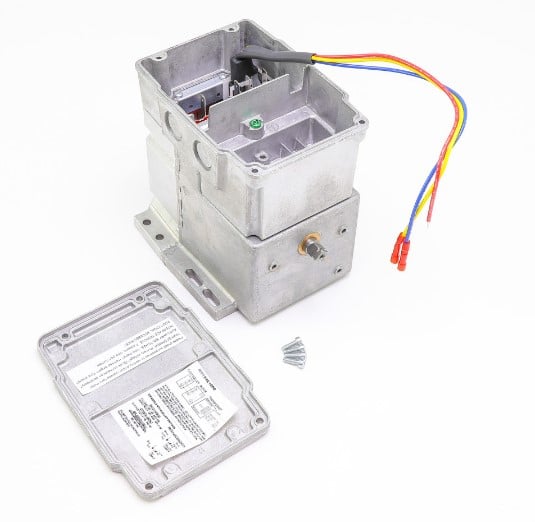

M9194E1000 Honeywell

THE HONEYWELL M9194E1000 REPLACES M944C1059 24V 50/60HZ 20VA 300LB-IN 90 DEGREE ADJ. STROKE, 120-240 SEC PR 1 AUX Switch,DUAL Shaft.

Datasheet

Product Specifications

• Application
  • Electric
• Dimensions (in.)
  • 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
• Dimensions (mm)
  • 164 mm high x 140 mm wide x 185 mm deep
• Weight (lb)
  • 5 lb
• Item Type
  • Product
• Mounting
  • Foot-mounted
• Frequency
  • 50 Hz; 60 Hz
• Approvals, Underwriters Laboratories Inc.
  • Listed: File No. E4436, Guide No. XAPX for USA and Canada
• Electrical Connections
  • Quick-connect terminals
• Supply Voltage
  • 24V
• Power Consumption
  • Driving– 15 VA
• Approvals, CE
  • EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
• Ambient Temperature Range (F)
  • -40 F to +150 F
• Ambient Temperature Range (C)
  • -40 C to +60 C
• Internal Auxiliary Switch
  • 1
• Auxiliary Switch Ratings
  • AFL – 120 Vac– 7.2A; ALR- 120 Vac– 43.2A; AFL – 240 Vac– 3.6A; ALR- 240 Vac– 21.6A
• Stroke
  • Adjustable; 90 to 160 degrees, Symmetrical
• Shaft Dimensions (in.)
  • 375 in. Square
• Control Signal
  • Proportional, 135 ohm
• Fail Safe Mode
  • Non-Spring Return
• Torque Rating (lb-in.)
  • 300 lb-in.
• Torque Rating (Nm)
  • 34 Nm
• External Auxiliary Switches Available
  • Yes
• Shaft Rotation (upon control signal increase)
  • Clockwise (as viewed from power end) (normally closed)
• Factory Stroke Setting
  • 90 degrees
• Timing, Nominal
  • 120 – 240 sec
• Feedback
  • No
• Shaft Dimensions (mm)
  • 10 mm Square
• Motor shafts
  • Dual-ended shaft
• Deadweight Load on Shaft
  • Either End– 200 lbs.; Combined on both Shafts– 300 lbs.
• Internal Transformer
  • None
