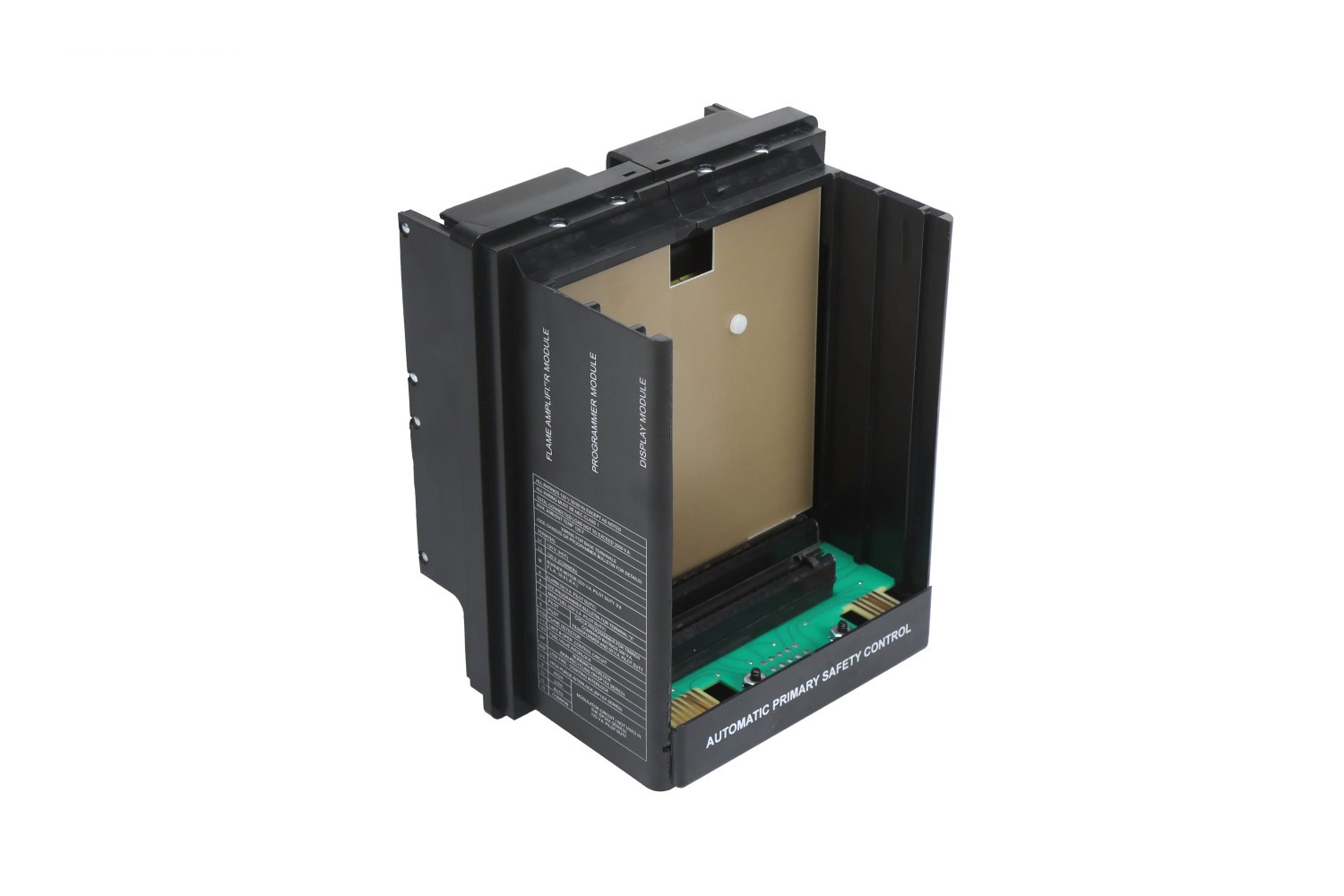

EB700 Fireye Chassis

Overview

The Fireye EB700 is a microprocessor-based replacement chassis designed for the E100 and E110 Flame-Monitor burner management systems. It serves as the core physical and electrical foundation, providing the necessary housing and wiring interface for interchangeable programmer and amplifier modules. Engineered for reliability in demanding industrial environments, the EB700 facilitates proper burner sequencing, ignition, and flame monitoring for automatic oil, gas, and combination fuel burners.

Features

• Modular design allows for the installation of various plug-in programmer and amplifier modules to meet specific application needs
• Direct interchangeability with older Fireye D-Series and C-Series controls using the same wiring base, eliminating the need for extensive rewiring
• Integrated transient suppressing device shielded across hot and neutral terminals to protect internal electronics from voltage spikes
• Supports advanced system capabilities including remote reset, remote display modules, and remote data communications
• Durable, flame-retardant construction with high-quality contact points to resist heat stress and corrosion

Specifications

• Model: EB700
• Supply Voltage: 120 VAC (+10%, -15%) 50/60 Hz
• Power Consumption: 25 VA
• Maximum Simultaneous Connected Load: 2000 VA
• Operating Temperature: -40 degree F to 140 degree F (-40 degree C to 60 degree C)
• Humidity: 85 percent R.H. non-condensing
• Terminals: 18-terminal wiring base
• Origin: Made in the United States

Applications

The Fireye EB700 is used in commercial and industrial combustion systems to manage automatically ignited burners. It is compatible with a wide range of flame detection technologies, including ultraviolet (UV), infrared (IR), flame rods, and self-check scanners, depending on the installed amplifier. It is a standard solution for HVAC professionals and field technicians for furnace and boiler repairs, ensuring safe burner operation through comprehensive flame safeguard protection.
