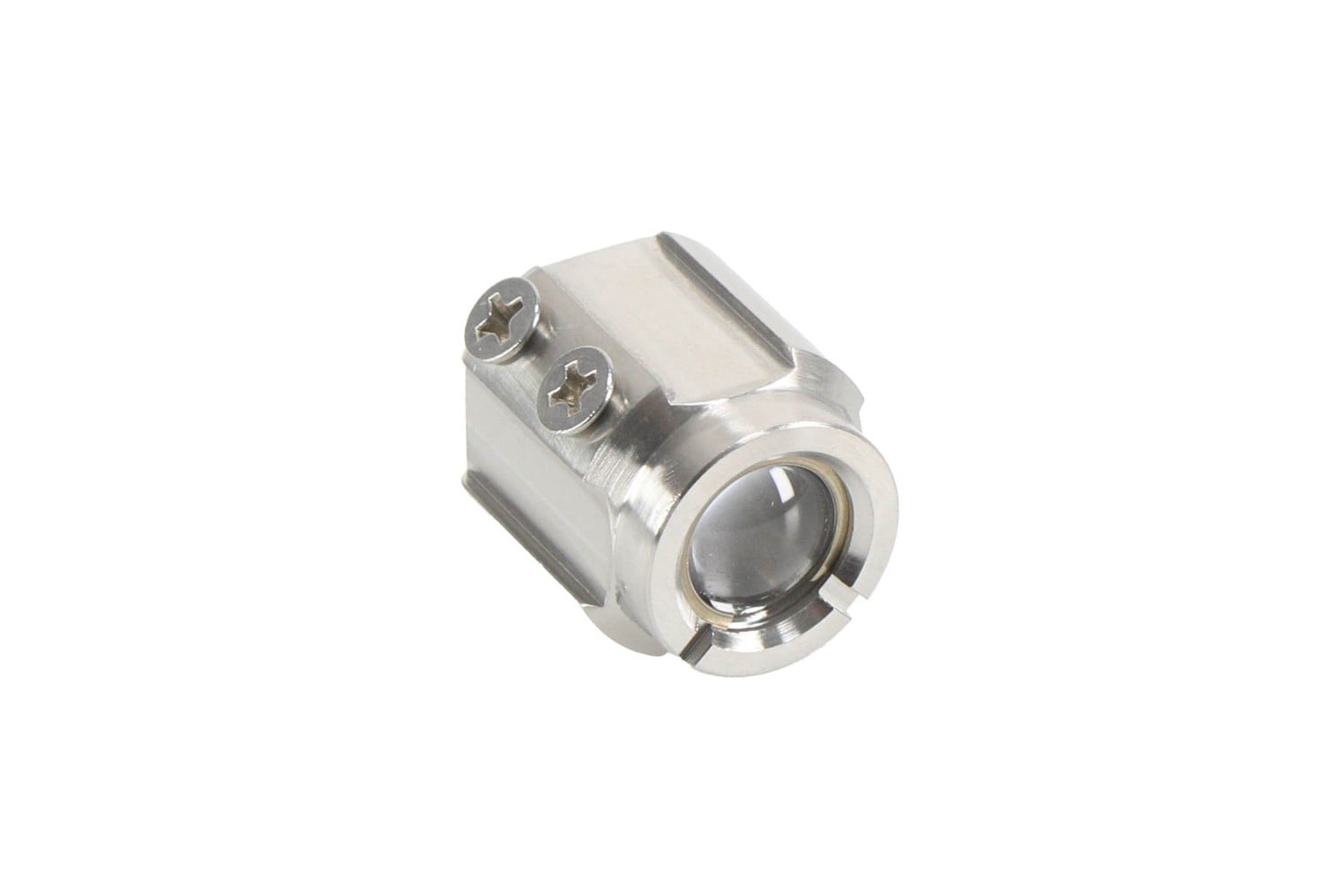

DE601-20B1 Fireye LENS Assembly

Overview

The Fireye DE601-20B1 is a precision-engineered 5-degree offset lens assembly designed for high-performance industrial flame monitoring and combustion control. This specialized optical component is used with Fireye integrated flame scanners, such as the InSight II series, to optimize the signal-to-noise ratio in challenging burner configurations. By providing a controlled angular adjustment, the assembly allows for precise targeting of the primary combustion zone while helping to filter out background radiation and signals from adjacent burners.

Features

• 5-degree optical offset for precise sensor alignment in complex burner geometries.
• High-quality optical construction improves signal accuracy and reliability.
• Robust housing designed to withstand the thermal stressors and harsh conditions of industrial furnace environments.
• Genuine OEM part ensures exact fitment and safety-critical monitoring performance.
• Optimized optical path mitigates interference from surrounding ignition sources.

Specifications

• Model Number: DE601-20B1
• Offset Angle: 5 degrees
• Component Type: Lens Assembly
• Compatibility: Specifically designed for Fireye InSight and InSight II series flame scanners
• Manufacturer: Fireye

Applications

The DE601-20B1 lens assembly is primarily used in industrial and commercial combustion systems, including steam boilers, power generation facilities, and industrial furnaces. It is an essential accessory for burner management systems (BMS) where physical sight pipe alignment is not perfectly centered on the primary flame or where isolating a specific flame from adjacent interference is necessary to prevent nuisance shutdowns.
