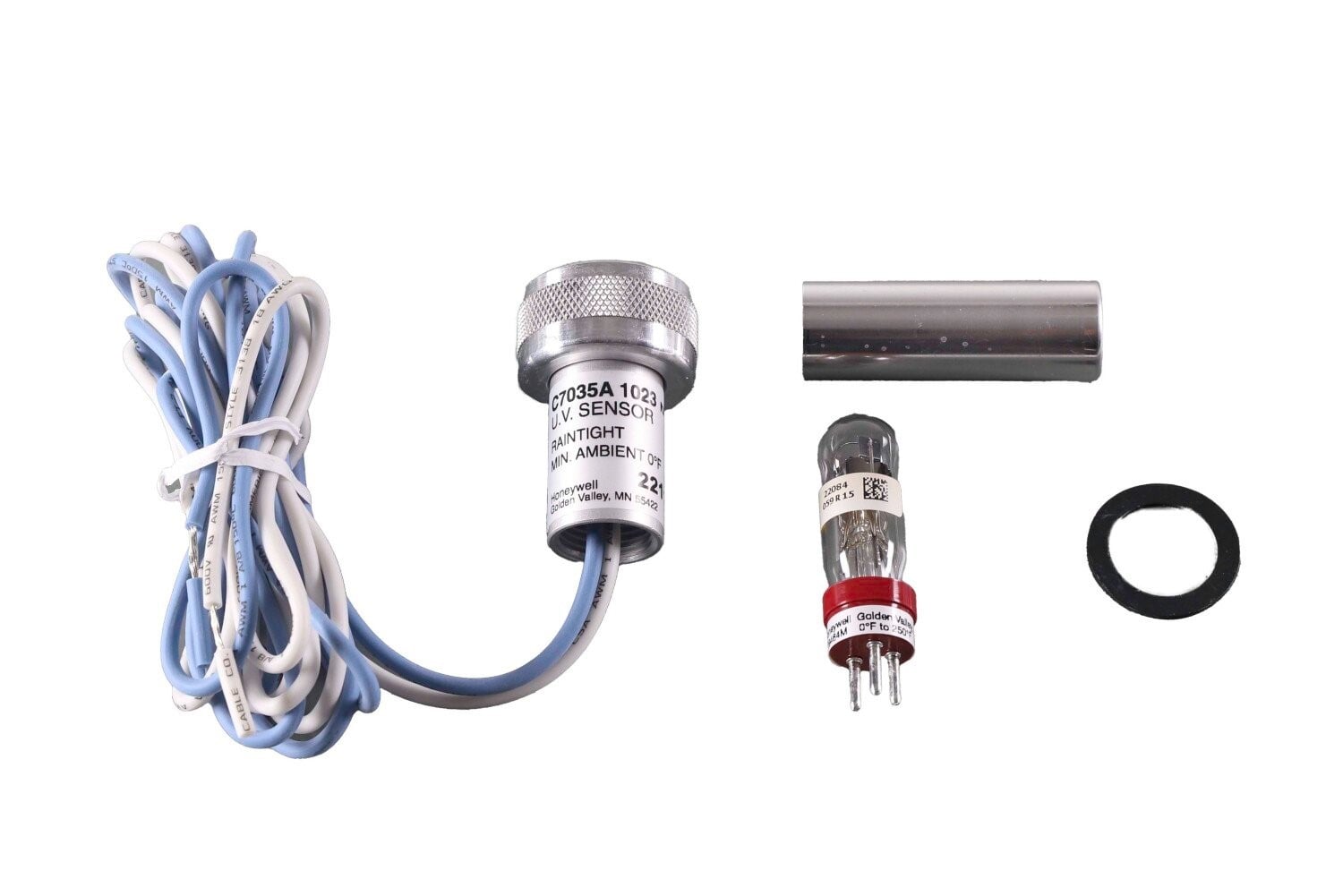

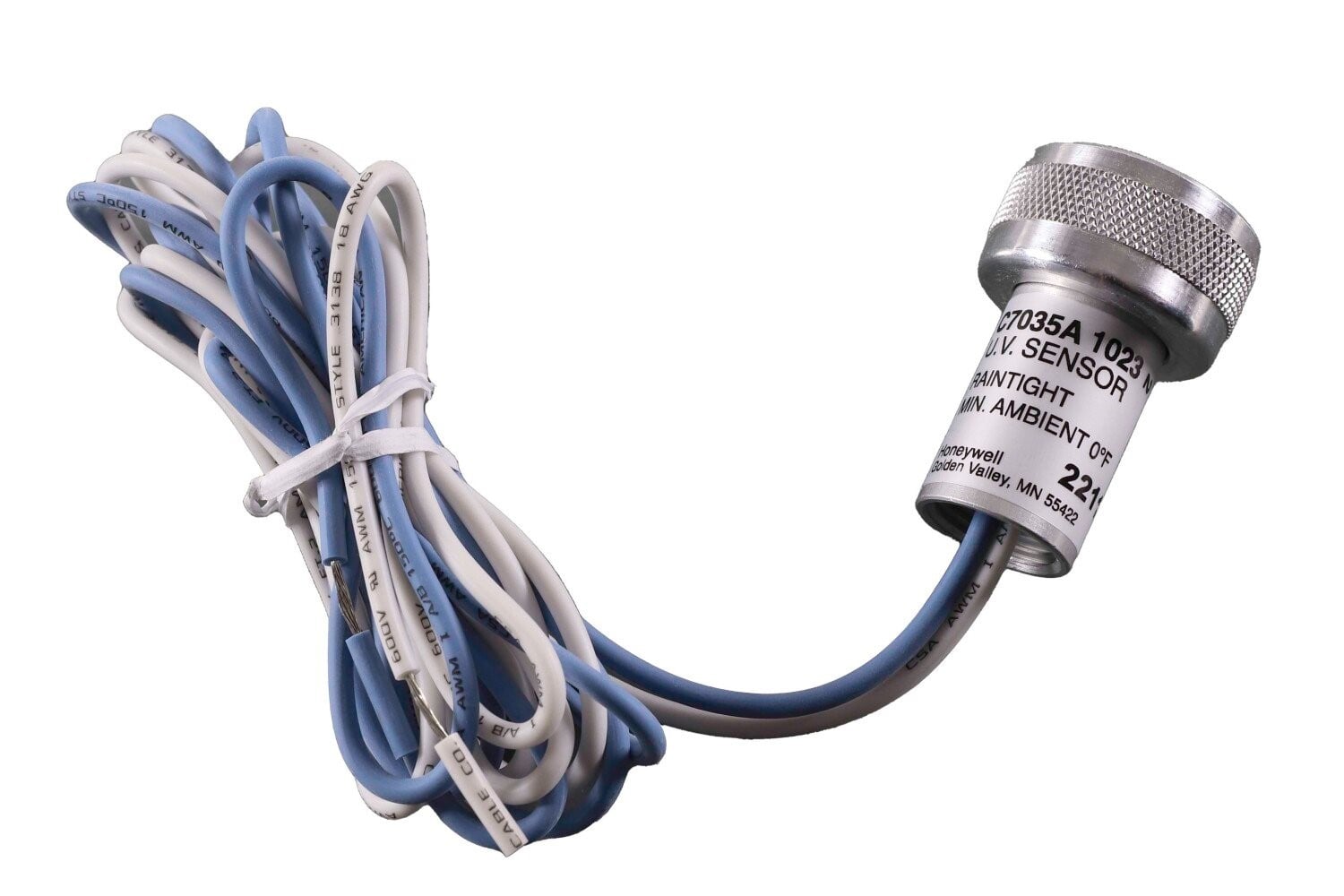

C7035A1023 Honeywell Minipeeper UV Flame Sensor

Datasheet

Overview

The Honeywell C7035A1023 Minipeeper UV Flame Sensor is a compact and reliable ultraviolet flame detector designed for burner and boiler management systems. Its small form factor and 1-inch mounting make it ideal for applications with limited space, while its rugged housing ensures durability in demanding combustion environments. This sensor is used to detect the presence of a flame by sensing ultraviolet emissions, providing an essential safety function in combustion control systems.

Specifications

Key Features & Benefits

• Compact Size – Minipeeper design allows installation in tight locations.

• Durable Housing – NEMA 3 rated for indoor and outdoor use.

• Flexible Installation – Standard 1-inch mounting and long 72-inch lead length.

• Safety Assurance – Provides reliable flame detection for burner and boiler systems.

• Service Friendly – Easy to mount, remove, and replace for maintenance.

Applications

• Gas and oil fired burners

• Boilers and furnaces

• Flame safeguard systems

• Combustion safety retrofits

• OEM and replacement installations

Installation & Maintenance Notes

• Always mount sensor with a direct line of sight to the flame.

• Use black iron sight pipe to reduce reflections and false readings.

• Keep wiring separate from ignition leads to avoid electrical noise.

• Inspect periodically and clean sensor window as needed.

• Replace sensor if UV sensitivity degrades over time.

Replacement Parts for C7035A1023

• 129464M
