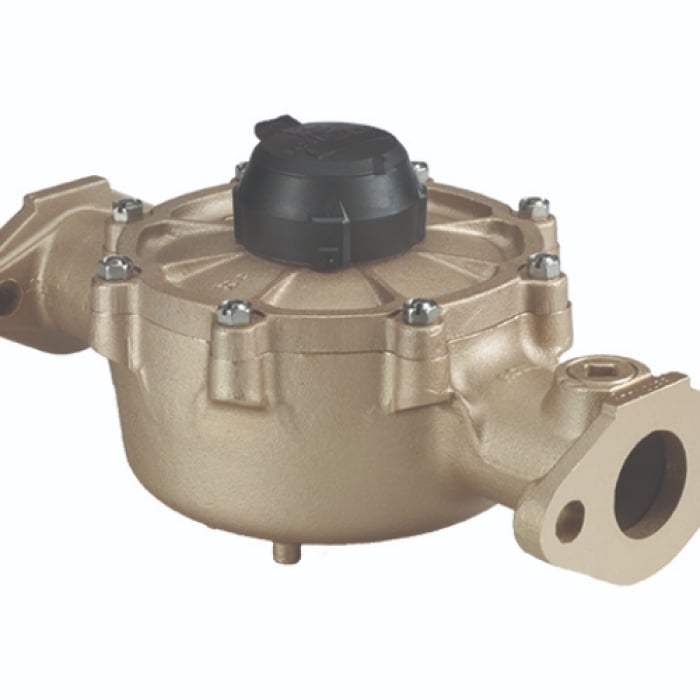

BGR-M170-200LNSG-HP-GAXX Veris Nutating Disc Flow Meter (Badger)
Nutating Disc Flow Meter, 2″, LCD Pulse Out
Nutating Disc Flow Meter, 2″, LCD Pulse Out
SPECIFICATIONS
| Application | : | Flow |
| Connections | : | Included, Cast Iron |
| Display Type | : | LCD with Totalizer (Gallons) |
| Fitting Size | : | 2″ |
| Fitting Type | : | Flange |
| Flow Measurement Accuracy | : | ±1.5% of Full Scale |
| Flow Measurement Range | : | 2 to 170 gpm |
| Flow Measurement Repeatability | : | ±0.5% |
| Flow Sensor Type | : | Nutating Disc Positive Displacement |
| Housing Material | : | Lead-Free Bronze Alloy |
| Measurement Type | : | Flow |
| Medium | : | Liquids, No Particulates |
| Operating Fluid Temperature | : | 0 to 49 °C (32 to 120 °F), optional to 121 °C (250 °F) |
| Operating Pressure | : | 150 psi Max. |
| Operating Temperature | : | 0 to 49 °C (32 to 120 °F), optional to 121 °C (250 °F) |
| Outputs | : | Pulse Output |
| Product Type | : | Sensor |
| Standards | : | NSF/ANSI Standards 61 and 372 |
| Totalizer Resettable | : | No |
| Warranty | : | 1 year |
FEATURES
Nutating Disc positive displacement meters are a cost-effective solution for industrial flow monitoring. These devices are available in sizes from 1/2″ to 2″ and are capable of handling flows up to 170 gallons per minute. Maintenance is fast, easy, and rarely required. The meter houses a measurement chamber that contains a disc. Liquid flowing through the chamber causes this disc to nutate, or wobble. This motion is sensed by a magnet, which transmits flow data.
– Standard models include LCD display with totalizer for gallons and pulse output.
– Other meter sizes and configurations are available. Consult Veris for availability.
| Weight | 30 lbs |
|---|---|
| Dimensions | 18 × 12 × 10 in |
