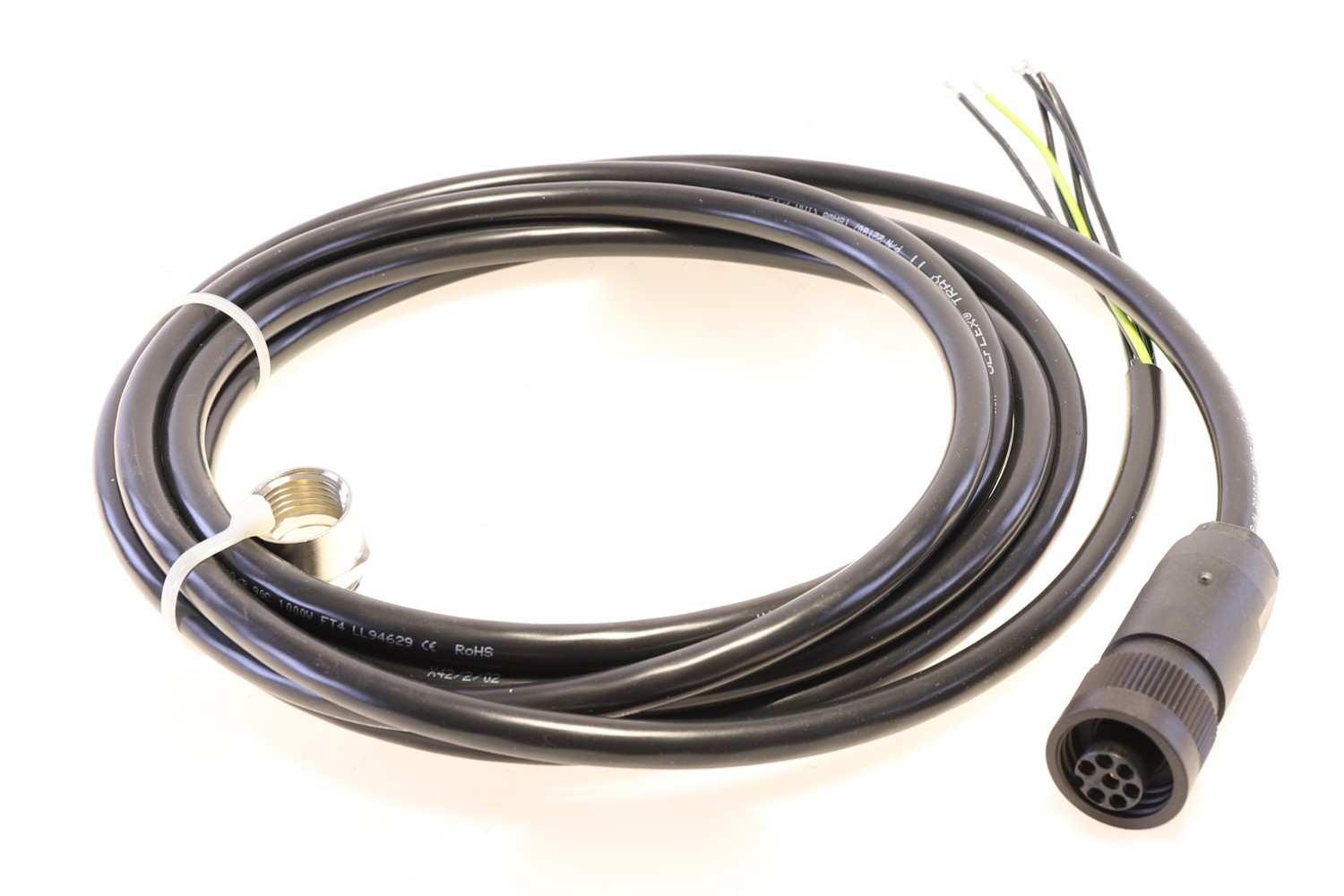

AGM23U Siemens Cable

Overview

The Siemens AGM23U is a high-quality connecting cable and wire harness specifically designed for use with the Siemens QRA75 series of self-checking ultraviolet (UV) flame detectors. This specialized cable provides the essential electrical connection between the flame scanner and the burner control system, such as the Siemens LMV5. It is engineered to facilitate the transmission of critical data regarding combustion efficiency and flame presence, ensuring that the burner management system can accurately monitor and adjust the combustion process for optimal safety and performance.

Features

• Pre-assembled with a dedicated plug for secure and reliable connection to QRA75 flame detectors
• Robust 4-meter (approximately 13 feet) cable length provides flexibility for various burner mounting configurations
• Integrated wiring harness design simplifies installation and maintenance of flame supervision systems
• High-durability construction suitable for the demanding environments of industrial and commercial combustion plants
• Specifically optimized for use with linkageless burner controls like the Siemens LMV5 series

Specifications

• Model: AGM23U
• Part Number: BPZ:AGM23U
• Length: 4 meters
• Connection Type: Plug-in connector with wire harness
• Compatibility: Designed specifically for the QRA7 series (e.g., QRA75.A17, QRA73.A17)
• Weight: Approximately 1.46 lbs (0.66 kg)
• Protection: Industrial-grade insulation for high-heat and high-demand environments

Applications

• Electrical connection and signal transmission for QRA75 self-checking UV flame detectors
• Integration of flame supervision into Siemens LMV5 linkageless burner management systems
• Used in industrial and commercial combustion equipment including boilers, furnaces, and incinerators
• Ideal for high-demand or continuous burner operations where self-checking flame detection is required
