Overview

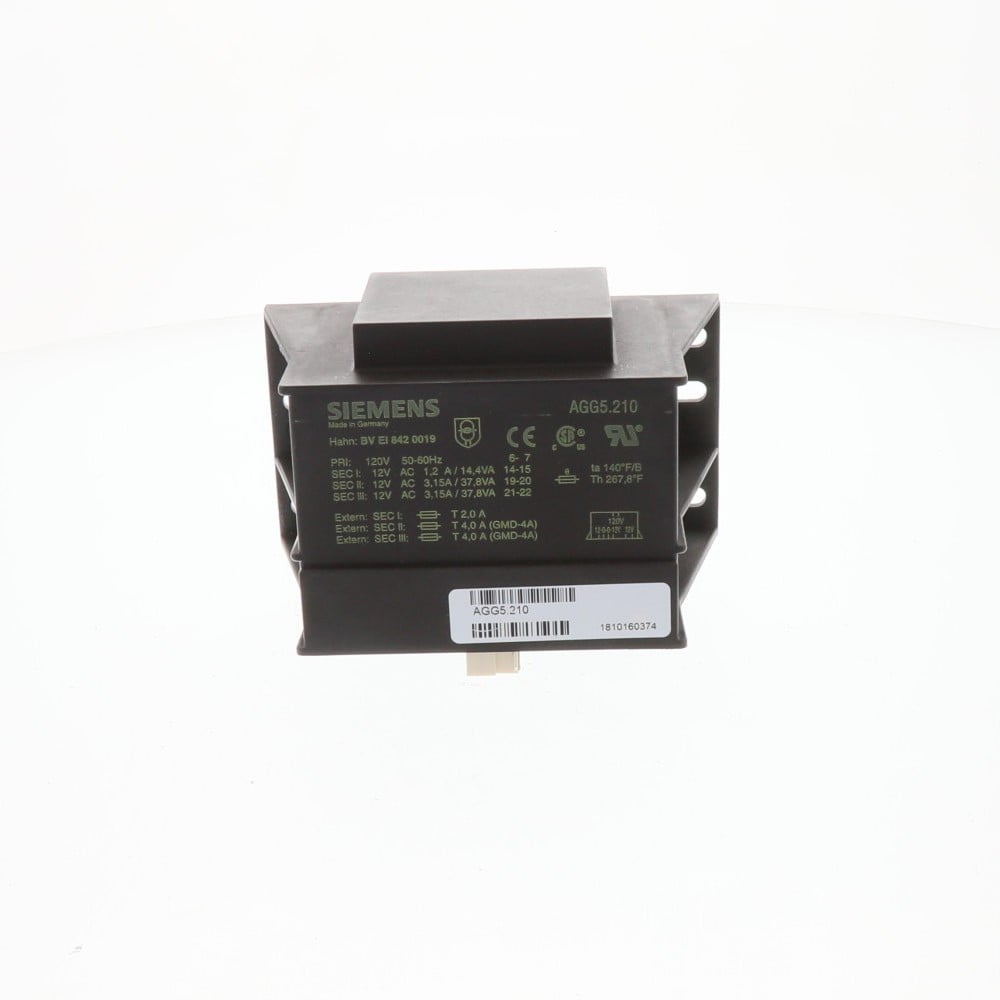

The Siemens AGG5.210 is a high-quality mains transformer specifically designed for use with the Siemens LMV5 burner management system. Manufactured in Germany, this transformer provides a critical power supply function, converting standard 120V primary voltage into multiple 12V secondary outputs required to power the LMV5 base unit and its associated components, such as actuators and displays. It is known for its reliability and precision, ensuring a stable power source for complex industrial and commercial combustion systems.
Features
- Multiple secondary outputs provide isolated power for different parts of the burner management system
- High-quality German engineering ensures long-term durability and reliable performance in demanding environments
- Specifically designed for linkageless burner control systems to maintain consistent voltage levels
- Compact design allows for efficient mounting within control cabinets or burner housings
- Safe isolation between primary and secondary circuits protects sensitive electronic components
- Integrated RAST5 connectors facilitate quick and secure electrical connections during installation
Specifications
- Model: AGG5.210
- Primary Voltage: AC 120 V (50/60 Hz)
- Secondary Voltage I: 12V AC, 1.2 A / 14.4 VA
- Secondary Voltage II: 12V AC, 3.15 A / 37.8 VA
- Secondary Voltage III: 12V AC, 3.15 A / 37.8 VA
- Total Output Power: 103 VA
- Net Weight: Approximately 4.4 lbs (2.01 kg)
- Connection Type: RAST5 connectors
- Country of Origin: Germany
- Lifecycle Status: Active Product
Applications
- Primary power supply for Siemens LMV5 burner management systems
- Supervision and control of industrial and commercial gas or oil burners
- Providing power to SQM45 and SQM48 actuators in linkageless fuel-air ratio control systems
- Powering AZL52 display and operating units within combustion plants
- Integration into gas trains and thermal process plants requiring 120V to 12V conversion
- Essential component for boilers and HVAC systems utilizing Siemens LMV50 or LMV52 controls
