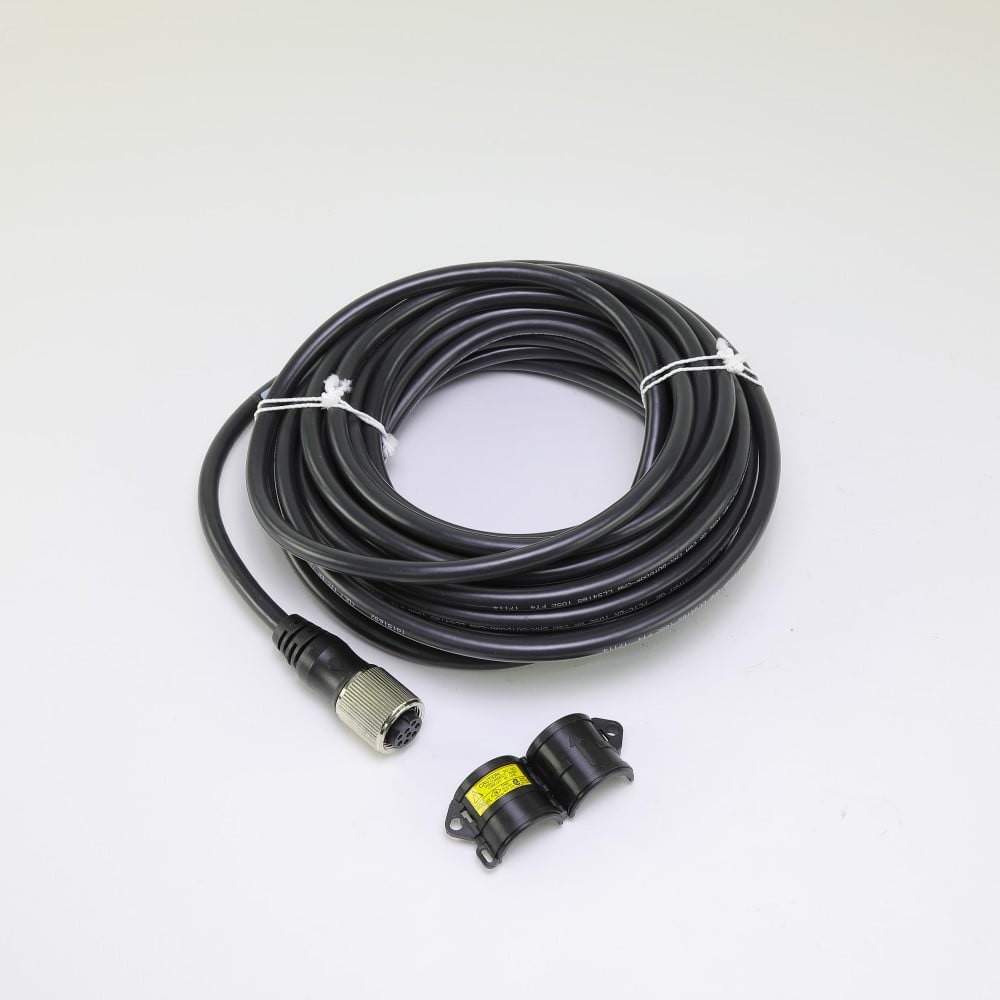

59-546-30 Fireye Cable

Overview

The Fireye 59-546-30 is a professional-grade, factory-wired cable assembly designed for use with Fireye Phoenix and InSight II integrated flame scanners. This 30-meter (approximately 98.5 feet) shielded cable provides a reliable electrical connection between the flame scanner and the burner management system. Engineered for demanding industrial combustion environments, it features a pre-terminated 8-pin female quick-disconnect connector to simplify field installation, minimize wiring errors, and ensure stable signal transmission for critical flame monitoring.

Features

• Factory-terminated design ensures a consistent, plug-and-play installation.
• 8-conductor shielded construction protects signal integrity against electromagnetic interference (EMI).
• Equipped with an 8-pin female quick-disconnect connector for secure attachment.
• Durable PVC jacketed material provides resistance to abrasion and industrial wear.
• Includes an Allen wrench for straightforward installation and maintenance.
• Provides reliable signal transmission to ensure safe and efficient burner operation.

Specifications

• Part Number: 59-546-30
• Length: 30 meters (98.5 feet)
• Number of Conductors: 8
• Connector Type: 8-pin female quick-disconnect
• Cable Rating: ITC-ER and PLTC-ER for industrial control applications
• Temperature Range: -40 degrees F to +221 degrees F (-40 degrees C to +105 degrees C)
• Compatibility: Fireye Phoenix and InSight II series flame scanners

Applications

The 59-546-30 cable assembly is specifically used in industrial and commercial burner management systems to interconnect Phoenix and InSight II flame detectors with their respective control units or junction boxes. It is ideally suited for power plants, refineries, and large-scale boiler rooms where dependable flame detection and discrimination are essential for safety. The 30-meter length offers significant flexibility for installations where the scanner is located at a distance from the main control interface.
