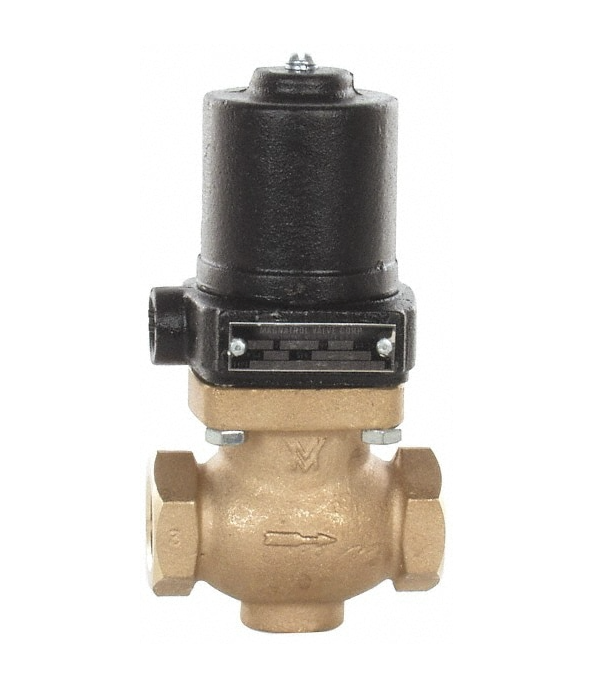

116S24 Magnatrol Solenoid Valve (G116S24SC-ACTS)

116S24 Magnatrol Solenoid Valve (G116S24SC-ACTS) 1″npt N/C 120V 0/50# STEAM

Overview

The Magnatrol G116S24SC-ACTS (or obsolete/earlier model 116S24) is a two-way, full port, bronze solenoid valve primarily designed for the efficient control of steam flow. It features a Normally Closed (N/C) operation, meaning it opens when the coil is energized (Energize to Open) and closes when power is removed (de-energized). This internal pilot-operated valve operates from zero up to its maximum differential pressure, requiring no differential pressure to open. It is constructed to be dependable and packless.

Features

– Operation: Normally Closed (N/C), opening upon coil energization.

– Construction: Cast Bronze body with Globe Pattern and NPT ends, and a packless design.

– Components: Internal parts include a 430 Stainless Steel plunger, 303 Stainless Steel pilot valve, 304 Stainless Steel bonnet tube, and Inconel spring.

– Coil: Encapsulated Class H coil is designed for continuous duty with all AC and DC voltages, featuring 18-inch wire leads.

– Full Port: Provides a straight-thru design for maximum flow.

– Pressure Operation: Operates from zero to maximum differential pressure, requiring no differential pressure to open.

– Installation: Must be mounted in a horizontal pipe with the solenoid enclosure positioned vertically on top.

Specifications

– Part Number: G116S24SC-ACTS (Direct replacement for 116S24)

– Pipe Size: 1″” NPT

– Maximum Differential Pressure (Max Diff PSI): 50 PSI

– Maximum Static Pressure: 200 PSI

– Control Voltage (Standard AC): 120 VAC, 60 HZ

– Wattage: 40 Watts AC / 28 Watts DC

– Amperage: 0.6A Hold Amps / 2.3A Inrush Amps

– Maximum Fluid Temperature: 400° F

– Body Material: Bronze

– Cv Factor: 13.0000

– Weight: Approximately 9.00 lbs

– Standards: CSA certified and meets UL standards; Explosion-Proof & NEMA 4 options available.

Applications

The valve is specifically designed to control the flow of steam. The steam must be free of sediment for proper operation. It is suitable for use in a variety of industrial applications, including general service fluid control.
