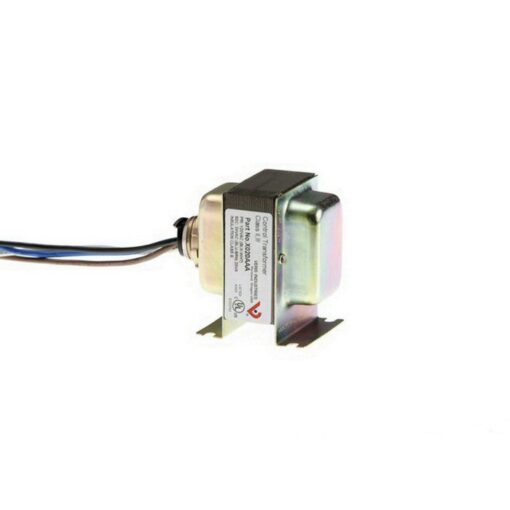

X020AAA Veris
$15.80
Control Transformer,20VA,120-24VAC,FT&SINGLE HUB MNT; 120 VAC Primary 24 VAC Secondary Standard Control Transformer with Inherent Protection, 1 Hub and Foot, 20 VA
The Veris X020AAA Control Transformer,20VA,120-24VAC,FT&SINGLE HUB MNT
SPECIFICATIONS
| Application | : | Building Automation Systems |
| Current Protection | : | Inherent |
| Insulation Class | : | 2 |
| Model | : | X020AAA |
| Mounting | : | 1 Hub | 1 Foot |
| Operating Temperature | : | -40 – 149 °F (-40 – 65 °C) |
| Power Consumption | : | 20 VA |
| Product Certification | : | UL | CE |
| Product Type | : | Transformer |
| Range | : | X series |
| Secondary Voltage AC Nominal | : | 24 VAC |
| Secondary Voltage AC Range | : | 24 VAC |
| Supply Voltage AC Nominal | : | 120 VAC |
| Warranty | : | 5 years |
FEATURES
Veris X series control transformers are a convenient source of control power for HVAC control and building automation applications. A wide variety of UL-listed transformers are available with single and dual threaded hub mounting options. Multiple current limiting options are available, including a circuit breaker in some models.
- Threaded hub options maximize installation flexibility
- UL listings for all models simplify panel building requirements
| Weight | 3 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
