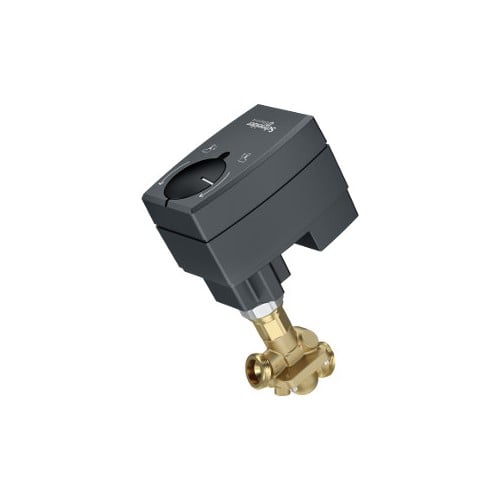

VP229E-32SN-013-U301 Schneider Electric Valve Actuator Assembly
$515.80
SmartX, Pressure Independent Valve Assembly, 1-1/4 in, 2-way, 13 GPM, MP300-SRD spring return closed actuator
Valve Assembly:
- Body Size: 1-1/4 in
- Configuration: 2-Way
- Type: Pressure Independent
- Connection: G external thread
- Flow Rate: 13 gpm
- Close-Off Pressure: 232 PSI
- Actuator Type: Electric
- Control Signal: Proportional, Floating
- Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 24 VAC
- Leads and Connections: No leads
- Force: 300 N
- Mechanical Movement: Linear
- Additional Features: LED Status Indicator, Valve stroke length selection
- Protection Rating: IP54
Assembly Components:
- Valve Body: VP229E-32BQSNT
- Valve Range: SmartX PIBCV
- Valve Linkage: None, tool-less connection
- Valve End Connection: 9112108032
- Actuator: MP300-SRD
- Actuator Range: SmartX Actuator
Product Alert: Not for use with steam
Product Specifications
| [Us] rated supply voltage | 24 V AC |
| Accuracy Setting Knob | 5% |
| Actuator Comment | Not for use with steam |
| Actuator Product Range | SpaceLogic |
| Actuator Product Series | MP300-SR |
| Actuator Type | Electric |
| Additional Features | LED Status Indicator |
| Valve Stroke Length Selection | |
| analogue input range | 0…10 V DC |
| 4…20 mA DC | |
| Auxiliary Switch | No |
| Body Size | 32 mm (1-1/4 in) |
| Brand | Schneider Electric |
| By Schneider | Yes |
| California proposition 65 |  WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm – www.P65Warnings.ca.gov |
| Close-Off Pressure | 1599.58 kPa |
| 232 psi | |
| Conduit Connection | Conduit connector plate |
| Configuration | 2-Way |
| Connection Type | G External |
| Control Signal | Floating |
| Proportional/Modulating | |
| Feedback Signal | 0 to 10 VDC |
| 2 to 10 VDC | |
| Final Result for Connectable | Not connectable |
| Final Result for Flywheel performance tracking | Not connectable |
| Flow Characteristic | Linear |
| Flow Rate Maximum (l/s & l/h) | 0.98 l/s |
| Flow Rate Maximum (m³/h) | 3.52 m³/h |
| Flow Rate Maximum GPM | 15.5 gal(US)/min |
| Flow Rate Minimum (l/s & l/h) | 0.18 l/s |
| Flow Rate minimum (m³/h) | 0.64 m³/h |
| Flow Rate minimum GPM | 2.82 gal(US)/min |
| Flow Rate Nominal (gpm) | 14.1 gal(US)/min |
| Flow Rate Nominal (lps) | 0.89 l/s |
| Flow Rate Nominal (m³/h) | 3.2 m³/h |
| Force lbf | 68 lbf |
| Force N | 300 N |
| Humidity | 0…95 % RH, non-condensing |
| Indivisible Sale Qty | 1 |
| Insulation Class | Class III |
| IP Protection Rating | IP54 |
| Leads and Connections | Terminal Block |
| Loss of Power Position | Normally closed |
| Loss of Power Type | Spring return |
| Manufacturer | Schneider Electric |
| Material | Polycarbonate housing |
| Material Body | CW602N brass |
| Material Diaphragm | EPDM |
| Material Stem | Stainless Steel |
| Material Stem Seal | EPDM |
| Mechanical Movement | Linear |
| Media Compatibility | Glycol 25 % |
| Glycol 30 % | |
| Glycol 50 % | |
| Water | |
| Override | Automatic reset |
| Pipe Size | 32 mm |
| Power Consumption Running VA | 9 VA AC |
| Pressure Allowable Static | 16 bar |
| Pressure Class | 125 ANSI |
| Pressure Differential Maximum (kPa) | 600 kPa |
| Pressure Differential Maximum PSI | 87 psi |
| Pressure Differential Minimum (kPa) | 25 kPa |
| Pressure Differential Minimum PSI | 3.63 psi |
| Pressure Fluid Max Delta P Normal Life | 58 psi (399.90 kPa) |
| Product Alert | Not for use with steam |
| Product Destination | pressure independent control valves |
| Product Or Component Type | Valve-actuator assembly |
| Rangeability | 1000:1 |
| Seat Leakage | Port A: Class IV (0.01 %) |
| Seat Material | Port A: brass |
| Stem Movement | Linear |
| Temperature Ambient Operating Range | 32…131 °F (0…55 °C) |
| Temperature Range Fluid | 14…248 °F (-10…120 °C) |
| Temperature Shipping and Storage Range | -40…158 °F (-40…70 °C) |
| Valve Product Range | SpaceLogic |
| Valve Product Series | VP229E |
| Valve Type | Pressure Independent |
Documents
| Weight | 5 lbs |
|---|---|
| Dimensions | 13 × 9 × 9 in |
