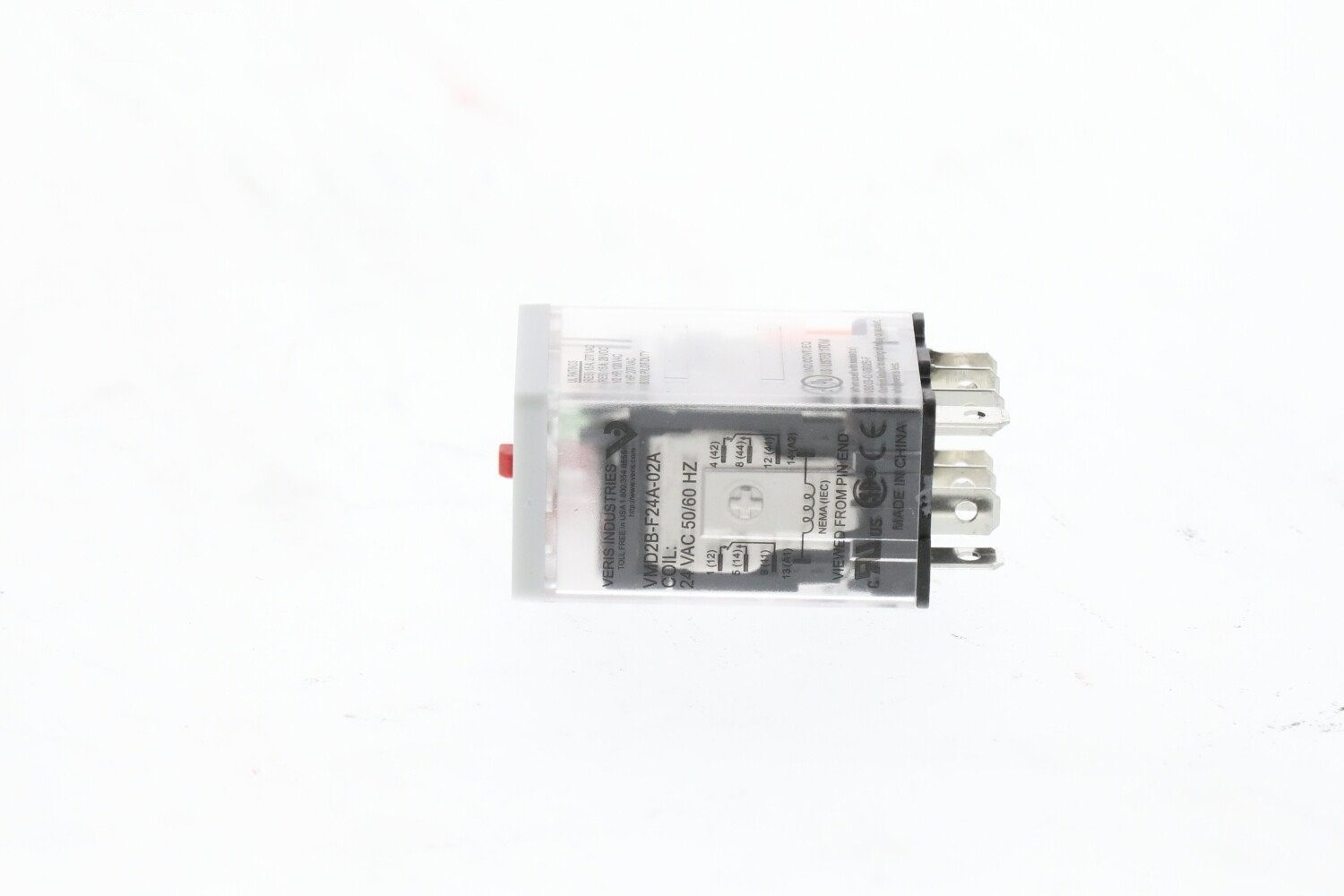

VMD2B-F24A Veris
$13.60
VMD2B-F24A Veris; 15A DPDT Socket/DIN relay,Full,24VAC; Socket Relay, DPDT, DIN, 8 Blade Style, 24 VAC, 16 Amp, CE, UL, LED Indicator, Flag, Test Button
The Veris VMD2B-F24A 15A DPDT Socket/DIN relay,Full,24VAC
SPECIFICATIONS
| Application | : | Building Automation Systems |
| Feature Level | : | Deluxe Relay |
| Hand-Off-Auto | : | Yes |
| Model | : | VMD2B-F24A |
| Mounting | : | DIN | Wall |
| Operating Temperature | : | -40 – 131 °F (-40 – 55 °C) |
| Product Certification | : | UL | CE | CSA |
| Product Type | : | Relay |
| Range | : | VMD Series |
| Relay Coil Voltage | : | 24 VAC |
| Relay Configuration | : | Socket only |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | 15 A @ 120 VAC | 12 A @ 28 VDC | 12 A @ 277 VAC |
| Relay Poles/Throw | : | DPDT |
| Warranty | : | 5 years |
FEATURES
The VMD2B-F is the full-featured model in a slim housing. The LED, the flag indicator and the test button allow for worry-free operation and easy troubleshooting with minimal downtime. Never wonder where the problem is. DPDT blade-style relays for socket/DIN mounting.
- Color-coded pushbutton – allows manual operation of relay, AC coils red or DC coils blue
- LED status lamp – shows coil on/off status
- 2-way mounting – side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
- Override lever – when activated, locks pushbutton and contacts in the powered position
- Flag indicator – shows relay status in manual or powered condition
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 2 × 2 × 1 in |
