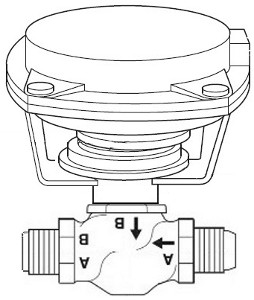

VK-7212-301-4-01
$536.90
VB: 5/8 in, 2W, Globe, STR, FLR, UO, BR, 0.4 cv, 250 PSI; Act (MK-4601): Pneu, 2Pos/Prop, 3-6 PSIG, SR, NO, Air NPT, Linear, N1
1/2″ 2-Way, Pneumatic, SR, N.O., w/MK-4601 (3-6 lbs)
Valve Assembly:
- Body Size: 5/8 in
- Configuration: 2-Way
- Type: Globe
- Body Pattern: Straightway
- Connection: Flare
- Stem Flow Action: Stem up A open
- Material Trim: Brass
- Flow Coefficient: 0.4 cv
- Close-Off Pressure: 250 PSI
- Actuator Type: Pneumatic
- Control Signal: 2-Position (On/Off), Proportional
- Control Spring Range: 3 to 6 PSIG
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally open
- Leads and Connections: 1/8 in Air NPT
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
Assembly Components:
- Valve Body: VB-7212-0-4-01
- Valve Range: Venta
- Valve Linkage: AV-401
- Actuator: MK-4601
Product Specifications
| Actuator Diaphragm Material | Neoprene |
| Actuator Housing Material | Aluminum die cast |
| Actuator Type | Pneumatic |
| Actuator Use | Globe Valves |
| Body Pattern | Straightway |
| Body Size | 15.88 mm (5/8 in) |
| By Schneider | Yes |
| California Residents |  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Close-Off Pressure | 1724 kPa |
| 250 psi | |
| Configuration | 2-Way |
| Control Signal | 2-Position (On/Off) |
| Proportional/Modulating | |
| Control Spring Range | 3 to 6 PSIG |
| Diaphragm Effective Area | 11 sq in in² |
| Flow Characteristic | Modified equal percentage |
| Flow Coefficient | 0.35 kvs |
| 0.40 cv | |
| IP Protection Rating | IP10 |
| Lead Length | 1/8 in |
| Leads and Connections | Air NPT |
| Loss of Power Position | Normally open |
| Loss of Power Type | Spring Return |
| Material Body | Bronze |
| Material Packing | Spring-loaded PTFE/EPDM |
| Material Plug | Brass |
| Material Seat Port A | Bronze |
| Material Seating Seal Port A | EPDM |
| Material Trim | Brass |
| Mechanical Movement | Linear |
| Override | 5/32 Allen wrench |
| Pipe Size | 1/2 in |
| Position Indicator | Green push stem with color markers |
| Positioner | No |
| Pressure Allowable Static | Class 250 with 400 PSIG up to 150 F decreasing to 321 PSIG at 281 F |
| Pressure Class | 250 ANSI |
| Pressure Fluid Max Delta P Normal Life | 242 kPa |
| 35 psi | |
| Pressure Fluid Max Delta P Quiet Service | 242 kPa |
| 35 psi | |
| Pressure Saturated Steam Maximum Inlet | 242 kPa |
| 35 psi | |
| Product Line | Schneider Electric |
| Product Range | Venta |
| Product Series | VB-7200 |
| Rangeability | 5:1 |
| Seat Leakage Port A | ANSI IV (0.01%) |
| Stem Flow Action | Stem up A open |
| Stem Movement | Linear |
| Stroke Auto Calibration | No |
| Stroke Distance | 7/16 in |
| Temperature Ambient Operating Range | -28.8 to 104.4 C (-20 to 220 F) |
| Temperature Range Fluid | -7 to 138 C (20 to 281 F) |
| Temperature Range Saturated Steam | -7 to 138 C (20 to 281 F) |
| Temperature Shipping and Storage Range | -40 to 104.4 C (-40 to 220 F) |
| Type | Globe |
| Weight | 5 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
