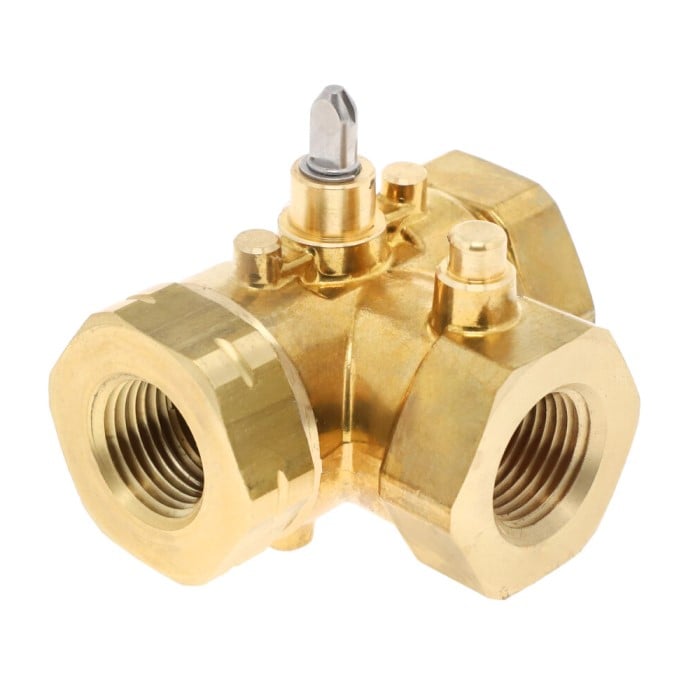

VBB3N01 Schneider Electric
$97.90
SpaceLogic, Ball Valve, 1/2″, 3-Way, Brass Trim, 0.6 Cv, 70 psi Close Off
Valve Body (VBB3N01):
- Body Size: 1/2 in
- Configuration: 3-Way Mixing
- Type: Ball
- Connection: NPT
- Material Trim: Brass
- Flow Coefficient: 0.6 cv
- Control Media: Glycol 25%, Glycol 30%, Glycol 50%, Glycol 60%, Water
- Product Line: SpaceLogic
- Product Series: VBB3
Product Alert: Not for use with steam.
Product Specifications
| Body Size | 15 mm (1/2 in) |
| Brand | Schneider Electric |
| By Schneider | Yes |
| Circularity Profile | No need of specific recycling operations |
| Configuration | 3-Way Mixing |
| Connection Type | NPT |
| Final Result for Connectable | Connectable ready |
| Final Result for Flywheel performance tracking | Connectable ready |
| Flow Characteristic | Equal Percentage |
| Flow Coefficient | 0.52 kvs |
| 0.6 cv | |
| Manufacturer | Schneider Electric |
| Material Ball | Chrome Plated Brass |
| Material Body | Forged brass |
| Material Characterizing Insert | Glass-Filled PEEK |
| Material Stem | Stainless Steel |
| Material Stem Seal | Viton O-Rings |
| Material Trim | Brass |
| Media Compatibility | Glycol 25 % |
| Glycol 30 % | |
| Glycol 50 % | |
| Glycol 60 % | |
| Water | |
| Pipe Size | 1/2 in |
| Pressure Allowable Static | 600 psi |
| Pressure Class | 600 ANSI |
| Pressure Fluid Max Delta P Normal Life | 30 psi (206.8 kPa) |
| Pressure Fluid Max Delta P Quiet Service | 20 psi (137.9 kPa) |
| Product Alert | Not for use with steam. |
| Product Or Component Type | Valve |
| Rangeability | Greater than 300:1 |
| Seat Leakage | Port A: Class IV (0.01 %) |
| Stem Movement | Rotary |
| Temperature Range Fluid | 19…250 °F (-7…121 °C) |
| Valve Product Range | SmartX |
| Valve Product Series | VBB3 |
| Valve Type | Ball |
Documents
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 4 × 4 in |
