VB-7313-0-4-09
$309.30

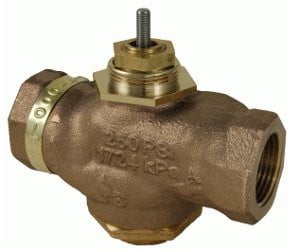

Venta, Globe Valve, 1-1/4 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 20 Cv
1-1/4″ 3-Way, G.S., NPT
Valve Body (VB-7313-0-4-09):
- Body Size: 1-1/4 in
- Configuration: 3-Way Mixing
- Type: Globe
- Connection: NPT
- Stem Flow Action: Stem down flow A to AB
- Material Trim: Brass
- Flow Coefficient: 20 cv
- Control Media: Glycol 25 to 60%, Water
- Product Line: Schneider Electric
- Product Range: Venta
- Product Series: VB-7300
Product Alert: Not for use with steam
Product Specifications
| Body Size | 32 mm (1-1/4 in) |
| By Schneider | Yes |
| California Residents | WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Configuration | 3-Way Mixing |
| Connection Type | NPT |
| Flow Characteristic | Modified linear |
| Flow Coefficient | 17.30 kvs |
| 20.00 cv | |
| Material Body | Bronze |
| Material Packing | Spring-loaded PTFE/EPDM |
| Material Plug | Brass |
| Material Seat Port A | Bronze |
| Material Seat Port B | Bronze |
| Material Seating Seal Port A | EPDM |
| Material Seating Seal Port B | Metal to metal |
| Material Stem | 316 Stainless steel |
| Material Trim | Brass |
| Media Compatibility | Glycol 25% |
| Glycol 30% | |
| Glycol 50% | |
| Glycol 60% | |
| Water | |
| Pipe Size | 1-1/4 in |
| Pressure Allowable Static | Class 250 with 400 PSIG up to 150 F decreasing to 321 PSIG at 281 F |
| Pressure Class | 250 ANSI |
| Pressure Fluid Max Delta P Normal Life | 600 kPa |
| 87 psi | |
| Product Range | Venta |
| Product Series | VB-7300 |
| Rangeability | 100:1 A Port |
| Seat Leakage Port A | ANSI IV (0.01%) |
| ANSI V | |
| Seat Leakage Port B | ANSI III (0.1%) |
| Stem Flow Action | Stem down flow A to AB |
| Stem Movement | Linear |
| Stroke Distance | 7/16 in |
| Temperature Range Fluid | -7 to 138 C (20 to 281 F) |
| Type | Globe |
| Weight | 5 lbs |
|---|---|
| Dimensions | 7 × 6 × 3 in |
