VB-7214-0-4-09
$346.70

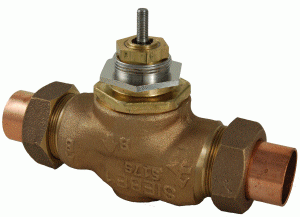

Venta, Globe Valve, 1-1/4 in, 2-way, Straightway, Sweat, Stem Up Open, Brass, 20 cv
1-1/4″ 2-Way, G.U. Sweat
Valve Body (VB-7214-0-4-09):
- Body Size: 1-1/4 in
- Configuration: 2-Way
- Type: Globe
- Body Pattern: Straightway
- Connection: Sweat
- Stem Flow Action: Stem up A open
- Material Trim: Brass
- Flow Coefficient: 20 cv
- Control Media: Glycol 25 to 60%, Steam, Water
- Product Line: Schneider Electric
- Product Range: Venta
- Product Series: VB-7200
Product Specifications
| Body Pattern | Straightway |
| Body Size | 32 mm (1-1/4 in) |
| By Schneider | Yes |
| California Residents |  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Configuration | 2-Way |
| Flow Characteristic | Modified equal percentage |
| Flow Coefficient | 17.30 kvs |
| 20.00 cv | |
| Material Body | Bronze |
| Material Packing | Spring-loaded PTFE/EPDM |
| Material Plug | Brass |
| Material Seat Port A | Bronze |
| Material Seating Seal Port A | PTFE |
| Material Stem | 316 Stainless steel |
| Material Trim | Brass |
| Pipe Size | 1-1/4 in |
| Pressure Allowable Static | Class 250 with 400 PSIG up to 150 F decreasing to 321 PSIG at 281 F |
| Pressure Class | 250 ANSI |
| Pressure Fluid Max Delta P Normal Life | 600 kPa |
| 87 psi | |
| Pressure Fluid Max Delta P Quiet Service | 242 kPa |
| 35 psi | |
| Pressure Saturated Steam Maximum Inlet | 242 kPa |
| 35 psi | |
| Product Range | Venta |
| Product Series | VB-7200 |
| Rangeability | 100:1 |
| Seat Leakage Port A | ANSI IV (0.01%) |
| ANSI V | |
| Stem Flow Action | Stem up A open |
| Stem Movement | Linear |
| Stroke Distance | 7/16 in |
| Temperature Range Fluid | -7 to 138 C (20 to 281 F) |
| Temperature Range Saturated Steam | -7 to 138 C (20 to 281 F) |
| Type | Globe |
| Weight | 7 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
