VB-7211-0-4-03

1/2″ 2-Way, Stwy – 250 Psig Static

Datasheet

Application

VB-7211 series stem up open, two-way valves control water from 20 to 281°F (-7 to 138°C) or steam to 281°F (138°C) maximum in heating or air conditioning systems. They are used for two-position or proportional control applications. Valve assemblies require an actuator and a valve linkage that must be purchased separately.

Features

• Valve sizes 1/2” to 1-1/4”
• Equal percentage flow characteristics for two- position or proportional control of water or steam
• 250 psig pressure rating per ANSI Standards (B16.15–1985) for cast bronze bodies
• Spring-loaded TFE packing
• Union end American Standard Taper Pipe Thread (NPT) connections
• Straightway or angle body pattern

Applicable Literature

• Valve Products Catalog, F-27384
• Cross-Reference Guide, F-23638• Reference Manual, F-21683• Application Manual, F-21335• Control Valve Sizing, F-13755• Valve Selection Chart for Steam, F-11366• Valve Selection Chart for Water, F-11080• EN-205 Water System Guidelines, F-26080

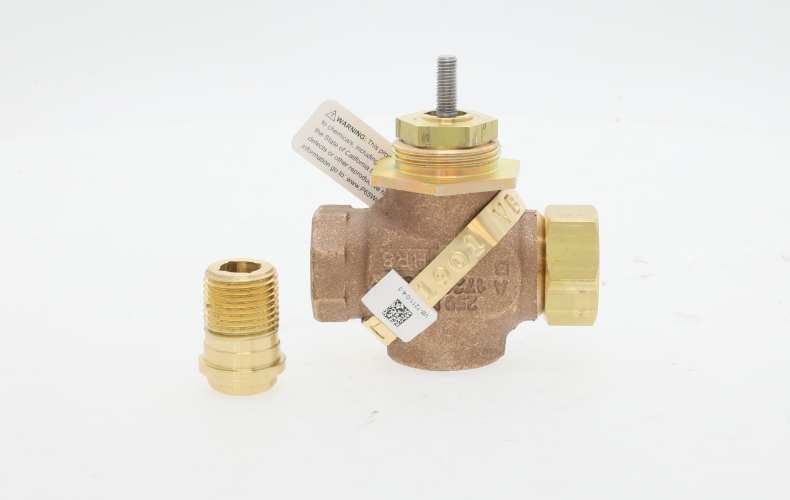

Valve Body (VB-7211-0-4-03):

• Body Size: 1/2 in
• Configuration: 2-Way
• Type: Globe
• Body Pattern: Straightway
• Connection: Union-NPT
• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Flow Coefficient: 2.2 cv
• Control Media: Glycol 25 to 60%, Steam, Water
• Product Line: Schneider Electric
• Product Range: Venta
• Product Series: VB-7200

Body Pattern	Straightway
Body Size	15 mm (1/2 in)
By Schneider	Yes
California Residents	WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Configuration	2-Way
Flow Characteristic	Modified equal percentage
Flow Coefficient	1.90 kvs
	2.20 cv
Material Body	Bronze
Material Packing	Spring-loaded PTFE/EPDM
Material Plug	Brass
Material Seat Port A	Bronze
Material Seating Seal Port A	PTFE
Material Stem	316 Stainless steel
Material Trim	Brass
Pipe Size	1/2 in
Pressure Allowable Static	Class 250 with 400 PSIG up to 150 F decreasing to 321 PSIG at 281 F
Pressure Class	250 ANSI
Pressure Fluid Max Delta P Normal Life	600 kPa
	87 psi
Pressure Fluid Max Delta P Quiet Service	242 kPa
	35 psi
Pressure Saturated Steam Maximum Inlet	242 kPa
	35 psi
Product Range	Venta
Product Series	VB-7200
Rangeability	100:1
Seat Leakage Port A	ANSI IV (0.01%)
	ANSI V
Stem Flow Action	Stem up A open
Stem Movement	Linear
Stroke Distance	7/16 in
Temperature Range Fluid	-7 to 138 C (20 to 281 F)
Temperature Range Saturated Steam	-7 to 138 C (20 to 281 F)
Type	Globe
