VA9203-GGA-2Z Johnson Controls Actuator

Overview

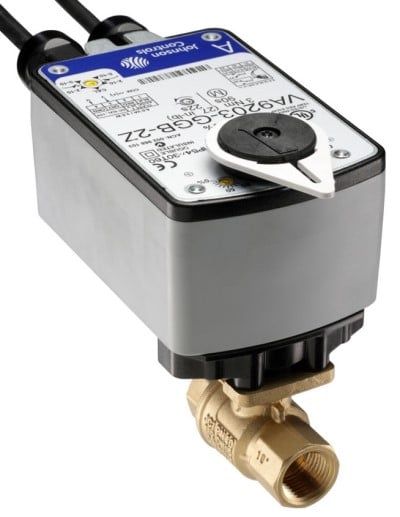

The Johnson Controls VA9203-GGA-2Z is a proportional direct-coupled electric ball valve actuator featuring a spring return fail-safe mechanism. Operating on a 24 VAC/VDC supply, this bidirectional actuator provides precise positioning on Johnson Controls VG1000 Series 1/2, 3/4, and 1 inch ball valves in heating, ventilating, and air conditioning (HVAC) applications. It uses a microprocessor-controlled brushless DC motor to drive the valve at a constant speed independent of torque and includes a 120-inch plenum-rated cable for simplified wiring in environmental air spaces.

Features

• Mechanical Spring Return: Provides reliable fail-safe positioning upon power loss without requiring batteries.
• Direct-Coupled Design: Allows ready attachment to VG1000 Series ball valves by driving a single captive screw, eliminating the need for separate linkages.
• Advanced Brushless DC Motor: Microprocessor-controlled to deliver constant runtime independent of torque and includes electronic stall detection to reduce power consumption in holding mode.
• External Mode Selection Switch: Permits straightforward calibration, input signal range selection, and control logic reversal (Direct or Reverse Acting) in the field.
• Rugged Enclosure: Features a durable construction with an IP54 rating to protect against dust and splashing water.

Specifications

• Torque: 27 lb-in (3 Nm)
• Supply Voltage: 24 VAC (50/60 Hz) / 24 VDC
• Control Input Signal: Proportional 0 to 10 VDC or 2 to 10 VDC (supports 0 to 20 mA or 4 to 20 mA control signals with an external 500-ohm resistor)
• Position Feedback Signal: 0 to 10 VDC or 2 to 10 VDC
• Run Time: 90 seconds (power-on)
• Electrical Connection: 120-inch (3.05 m) plenum-rated cable with colored and numbered conductors
• Compliance: UL, CE, and C-Tick compliant; manufactured under ISO 9001 standards

Applications

• Designed for exact positioning on Johnson Controls VG1000 Series 1/2, 3/4, and 1 inch (DN15, DN20, and DN25) ball valves.
• Used across commercial HVAC systems, hydronic heating, and air conditioning systems to control water, glycol solutions (up to 50%), and low-pressure steam (when used with an optional thermal barrier).
• Configured with a plenum-rated cable, making it suitable for installation in environmental air-handling spaces other than ducts and plenums, such as above hung ceilings.
