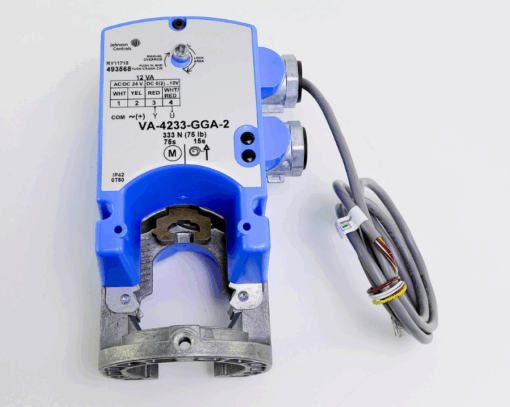

VA-4233-GGA-2 Johnson Controls Valve Actuator

Overview

The Johnson Controls VA-4233-GGA-2 is a direct-mount, spring return electric valve actuator designed to provide accurate proportional positioning of control valves in HVAC applications. Utilizing a stepper motor with stall-detection circuitry, it delivers a minimum force output of 61 lb (271 N). In the event of a power failure, an integrated automatic spring return mechanism safely returns the valve to the full stem-up position. It can be easily field mounted or ordered factory coupled to compatible valves without requiring additional linkages.

Features

• Automatic spring return safely drives the valve to the full stem-up position during power loss.
• Proportional control with an AUTO stroke calibration function that scales the input signal and feedback across the actual valve stroke.
• Switch-selectable direct or reverse action expands system usability.
• Manual hand crank allows for positioning independent of a power supply.
• Integral position indicator provides a clear visual representation of the valve stem position.
• Brushless stepper motor includes noise-filtering techniques to eliminate repositioning caused by line noise.
• Direct-mount capabilities reduce installation time and overall cost.

Specifications

• Supply Voltage: 24 VAC at 50/60 Hz or 24 VDC
• Power Consumption: 12 VA
• Force Output: Minimum 61 lb (271 N)
• Maximum Stroke: 29/32 in. (23 mm)
• Control Input Signal: Proportional 0 to 10 VDC, 2 to 10 VDC, 6 to 9 VDC, 0 to 20 mA, or 4 to 20 mA (switch selectable)
• Position Feedback Signal: 0 to 10 VDC, 2 to 10 VDC, or 6 to 9 VDC
• Nominal Timing (Full Stroke): 76 seconds
• Nominal Spring Return Timing: 4 to 9 seconds at room temperature
• Enclosure Rating: NEMA 2, IP42
• Operating Temperature Limits: 32 to 122°F (0 to 50°C)
• Electrical Connection: 48 in. (122 cm) cable with 20 AWG wire leads

Applications

• Designed for positioning control valves in commercial heating, ventilating, and air conditioning (HVAC) systems.
• Suitable for water and steam application control, specifically factory coupled or field mounted to Johnson Controls 1/2 in. through 1-1/4 in. VG7000 Series bronze control valves.
• Frequently implemented in Building Automation Systems (BAS) for precision climate and fluid management.
